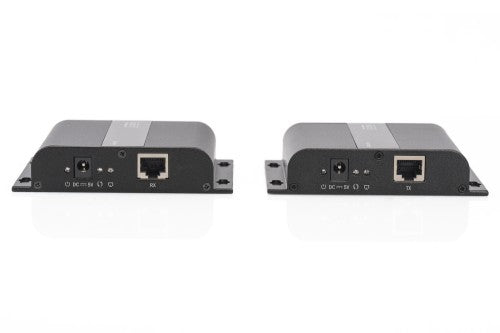

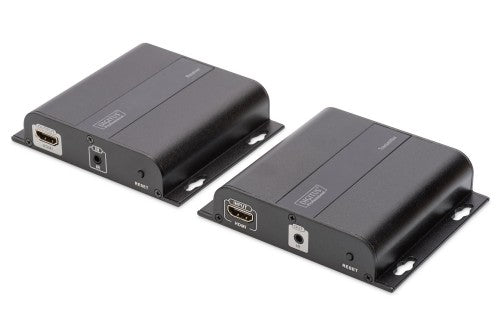

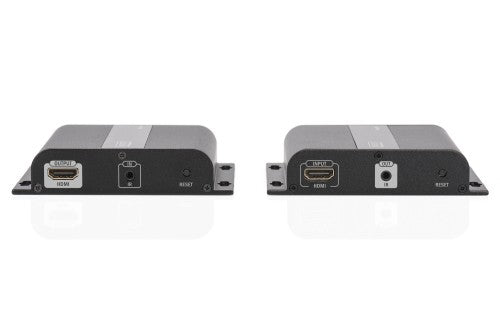

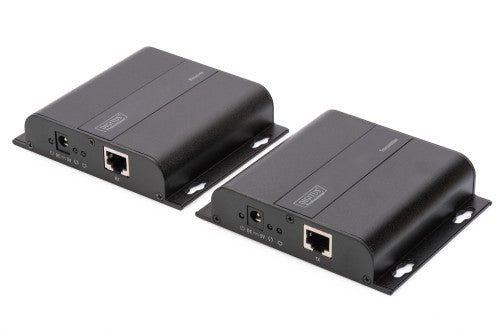

Digitus 4K HDMI extender via CAT / IP (set)

4K HDMI Extender Set over IP, 4K*2K@30Hz over network cable (CAT 5/5e/6/7), black

Key Features

• Use additional receiver units (DS-55123) and your existing network infrastructure to display your video content on up to 253 screens (IP connection)
• Extends 4K video content up to 120 m with a CAT 6 cable (point-to-point connection)
• Extension of the signal (unlimited distance) via the existing local network infrastructure (IP connection)
• Supports 4K (30Hz), 3840x2160p resolution
• Supports CAT 5, CAT 5e, CAT 6 and CAT 7 network cables
• HDMI bandwidth: 10.2 Gbit / s (max.)
• Supports HDCP 1.4
• Integrated bidirectional IR interface - simple remote control of the input source
• Resolutions: 4K (30 Hz), 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
• Supports HDTV
• Supports Deep Color (24bit)
• Supports uncompressed audio signals such as LPCM
• Operating temperature: 0°C - 60°C
• Metal housing
• Compact size, easy handling and installation
• Power supply unit: DC 5V/2A
• Compression: H.264
• Dimensions (1x unit): L 11.0 x W 9.4 x H 2.4 cm
• Weight (1x unit): 0.4 kg
• Color: Black

Description

Use additional receiver units (DS-55123) and your existing network infrastructure to display video content on up to 253 screens (IP connection)

- Use additional receiver units (DS-55123) and your existing network infrastructure to display your video content on up to 253 screens (IP connection)
- Extends 4K video content up to 120 m with a CAT 6 cable (point-to-point connection)
- Extension of the signal (unlimited distance) via the existing local network infrastructure (IP connection)
- Supports 4K (30Hz), 3840x2160p resolution
- Supports CAT 5, CAT 5e, CAT 6 and CAT 7 network cables
- HDMI bandwidth: 10.2 Gbit / s (max.)
- Supports HDCP 1.4

The 4K HDMI Extender Set (DS-55122) is a high-performance video distribution system consisting of a transmitter/receiver unit. It extends 4K HDMI signals up to 120 m via a CAT6 network cable (point-to-point connection). In addition, you can use a network switch and the individual receiver units (DS-55123) to distribute your video content to up to 253 displays via the existing network (IP connection). The additional integrated unidirectional IR interface enables remote control of the input source.

Specifications

Features
Material	Metal
HDCP	Yes
Colour depth	24 bit
3D	Yes
Type	AV transmitter & receiver
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat5, Cat5e, Cat6
Maximum transfer distance	120 m
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Bandwidth	10.2 Gbit/s
Product colour	Black
Technical details
Material	Metal
HDCP	Yes
Colour depth	24 bit
3D	Yes
Type	AV transmitter & receiver
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat5, Cat5e, Cat6
Maximum transfer distance	120 m
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Bandwidth	10.2 Gbit/s
Product colour	Black
Connectivity technology	Wired
Country of origin	China
Package volume	2372.08 cm³
Ports & interfaces
Remote (IR) output	1
Remote (IR) input	1
RJ-45 input ports	1
RJ-45 output ports	1
HDMI in	1
Number of HDMI outputs	1
HDMI version	1.4
DC-in jack	Yes
Connectivity technology	Wired
Power
Power over Ethernet (PoE)	No
Output current	2 A
Operating voltage (transmitter)	5 V
Operating voltage (receiver)	5 V
Power consumption (typical)	4 W
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Weight & dimensions
Width	107.3 mm
Package depth	149 mm
Height	23.7 mm
Depth	94 mm
Package width	199 mm
Package height	80 mm
Weight	167 g
Package weight	845 g
Packaging data
Package depth	149 mm
Package width	199 mm
Package height	80 mm
Package weight	845 g
Packaging content
IR receiver included	Yes
IR blaster included	Yes
AC adapter included	Yes
Manual	Yes
Logistics data
UK Trade Tariff code	85176200
