StarTech.com HPE 813874-B21 Compatible SFP+ Module - 10GBASE-T - SFP to RJ45 Cat6/Cat5e - 10GE Gigabit Ethernet SFP+ - RJ-45 30m - HPE BladeSystem, c-Class

StarTech.com HPE 813874-B21 Compatible SFP+ Module - 10GBASE-T - SFP to RJ45 Cat6/Cat5e - 10GE Gigabit Ethernet SFP+ - RJ-45 30m - HPE BladeSystem, c-Class (813874B21ST)

Key Features

• 100% HPE 813874-B21 COMPATIBLE: Works with HPE switches like BladeSystem, c-Class and others
• TECHNICAL SPECS: 10GBASE-T / 10Gbps / Copper / RJ-45 Connector / Distances up to 30m (98.4ft)
• TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in HPE routers and switches
• WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
• THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance

Description

10Gbps | Copper | RJ45 | 30 m (98.4 ft) | Lifetime Warranty

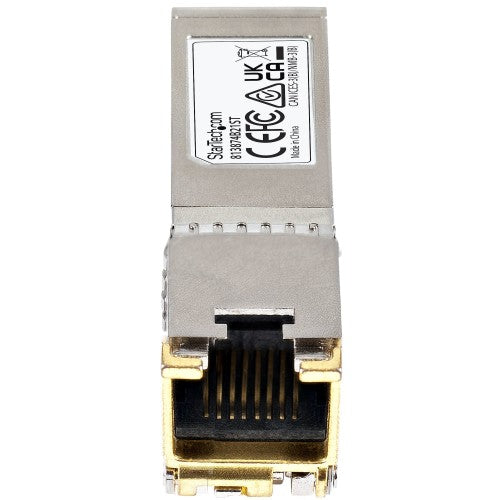

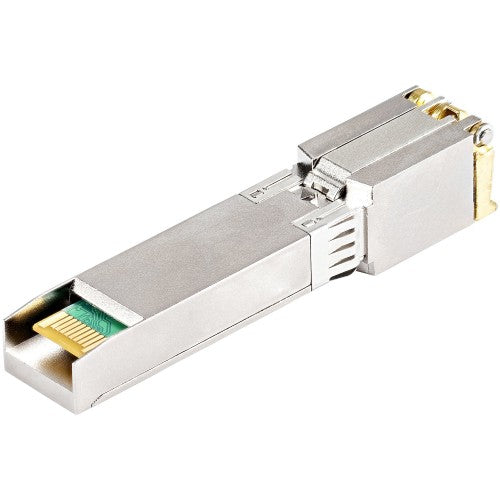

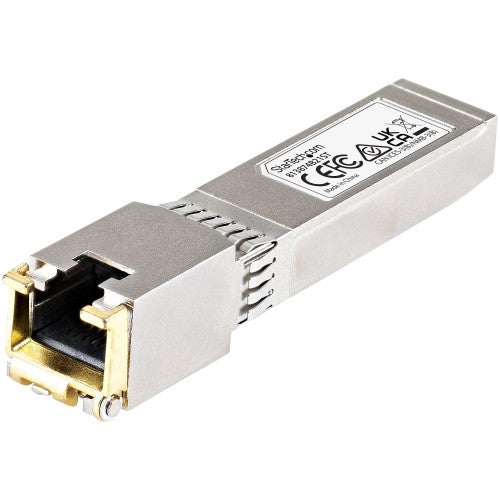

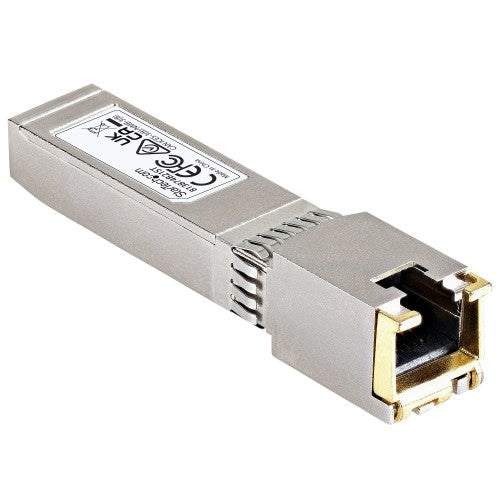

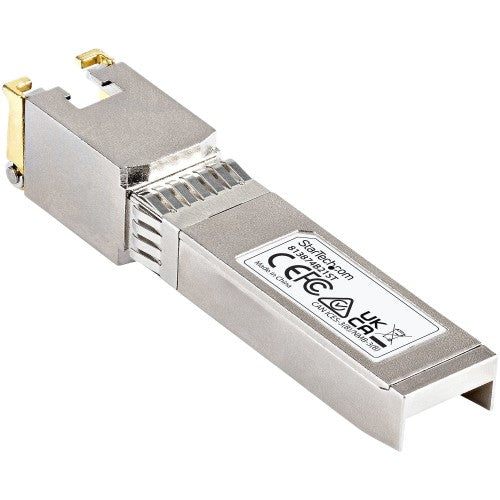

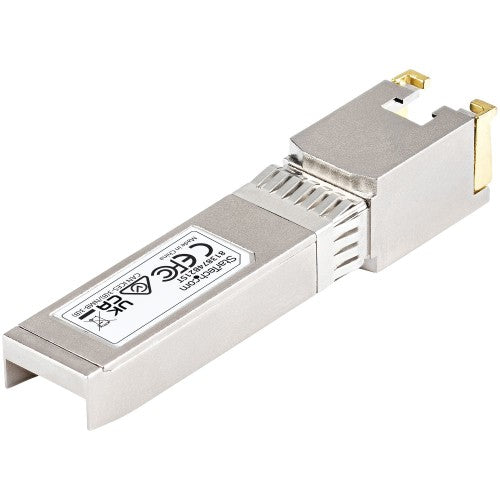

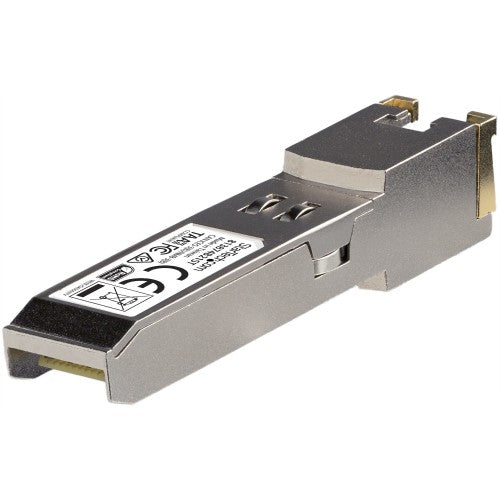

The 813874B21ST is an HPE 813874-B21 compatible copper transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 10 GbE connectivity over copper cable, for 10GBASE-T compliant networks, with a maximum distance of up to 30 m (98.4 ft).

Technical Specifications:

• Maximum Data Transfer Rate: 10 Gbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 30 m (98.4 ft)
• MTBF: 4,598,430 hours
• Digital Diagnostics Monitoring (DDM): No

This SFP+ copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

Specifications

Performance
SFP transceiver type	Copper
Digital Diagnostics Monitoring (DDM)	No
Networking standards	IEEE 802.3an
Auto MDI/MDI-X	Yes
Ethernet LAN (RJ-45) ports	1
Maximum transfer distance	30 m
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Country of origin	China
Product colour	Silver
Housing material	Zinc steel
Hot-swap	Yes
Mean time between failures (MTBF)	4598430 h
Brand compatibility	HP
Harmonized System (HS) code	85369010
Features
Product colour	Silver
Housing material	Zinc steel
Hot-swap	Yes
Mean time between failures (MTBF)	4598430 h
Brand compatibility	HP
Country of origin	China
Certification	CE, FCC
Power
Power consumption (typical)	2.3 W
Certificates
Certification	CE, FCC
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 90 °C
Operating relative humidity (H-H)	0 - 95%
Network
SFP transceiver type	Copper
Networking standards	IEEE 802.3an
Ethernet LAN (RJ-45) ports	1
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Weight & dimensions
Width	13.4 mm
Depth	69.8 mm
Height	13.8 mm
Weight	58 g
Package depth	120 mm
Package width	75 mm
Package height	33 mm
Package weight	31 g
Packaging content
Quantity per pack	1 pc(s)
Technical details
Package width	75 mm
Package height	33 mm
Hot-swap	Yes
Auto MDI/MDI-X	Yes
Maximum transfer distance	30 m
Compliance certificates	RoHS
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Packaging data
Package depth	120 mm
Package width	75 mm
Package height	33 mm
Package weight	31 g
Logistics data
Quantity per pack	1 pc(s)
Country of origin	China
Master (outer) case width	340 mm
Master (outer) case length	638 mm
Master (outer) case height	290 mm
Products per master (outer) case	150 pc(s)
Harmonized System (HS) code	85369010
