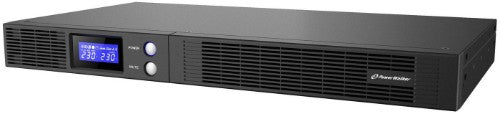

Line-Interactive, 1500VA / 900W, 16.2kg
Key Features
- Slim 1U design
- USB with Human Interface Device (HID) support and Intelligent Slot for communication cards
- Pure Sine Wave for wide range of applications and harsh environment
- Auto dimming screen (UPS is woken up with mute button)
Description
PowerWalker VI R1U Series offers slim design, which is unique on the market. It occupies only 1U of rack cabinet, but what is more, it can be fitted into places never before available for UPSs. It could even fit under your TV table to protect your home theatre. Considering the fact that fan is completely switched off in normal operation and LCD dims automatically, neither noise nor LCD shine will disturb your experience. With pure sine wave output in battery mode it delivers high quality voltage for the equipment. HID support for USB port will allow communication with NAS without further compatibility issues.
Specifications
| Power |
|---|
| Output power |
900 W |
| Input operation voltage (min) |
165 V |
| Input operation voltage (max) |
290 V |
| Output operation voltage (min) |
230 V |
| Output operation voltage (max) |
230 V |
| Output power capacity |
1.5 kVA |
| Performance |
|---|
| UPS topology |
Line-Interactive |
| Power protection features |
Overload |
| Features |
|---|
| UPS topology |
Line-Interactive |
| Output power |
900 W |
| Input operation voltage (min) |
165 V |
| Input operation voltage (max) |
290 V |
| Output operation voltage (min) |
230 V |
| Output operation voltage (max) |
230 V |
| Power protection features |
Overload |
| Output power capacity |
1.5 kVA |
| Input frequency |
45/55 Hz |
| Ports & interfaces |
|---|
| USB port |
Yes |
| AC outlets quantity |
4 AC outlet(s) |
| AC outlet types |
C13 coupler |
| Power plug |
C14 coupler |
| RS-232 ports |
1 |
| Battery |
|---|
| Number of batteries supported |
4 |
| Battery voltage |
6 V |
| Typical backup time at half load |
8.7 min |
| Typical backup time at full load |
0.4 min |
| Battery recharge time(90%) |
8 h |
| Design |
|---|
| Rack capacity |
1U |
| Product colour |
Black |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Technical details |
|---|
| Harmonized System (HS) code |
85078000 |
| Weight & dimensions |
|---|
| Weight |
16.2 kg |
| Width |
433 mm |
| Height |
44 mm |
| Depth |
485 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85078000 |
