Description
1D & 2D codes, Omni directional scanning, 360°, 120 fps, Black, IP42, USB (HID, COM), RS232

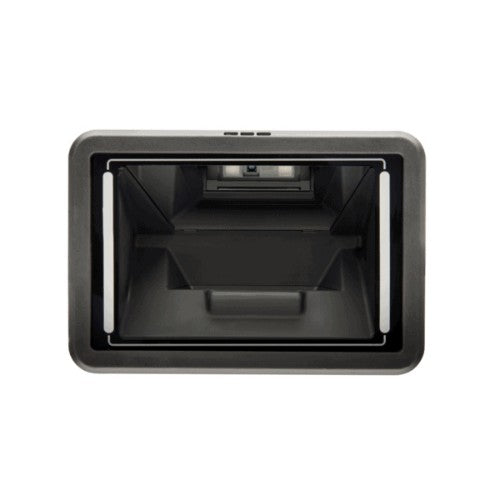

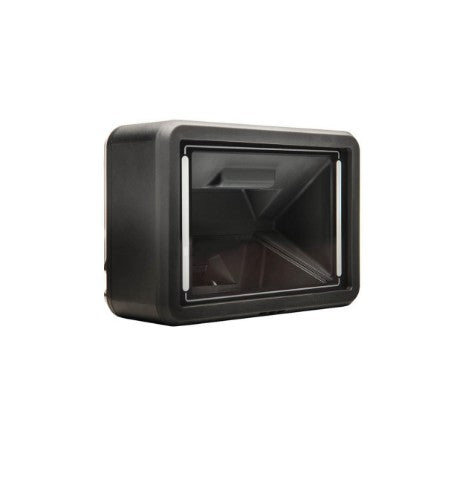

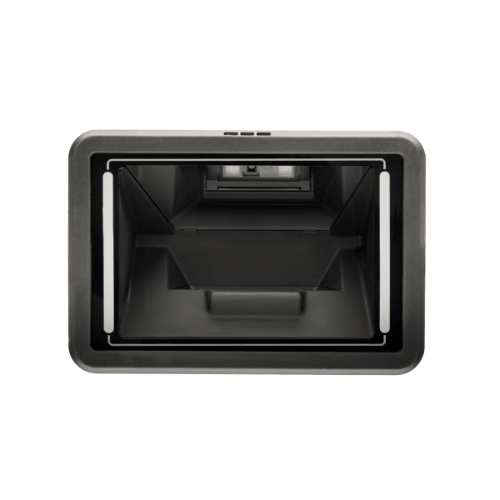

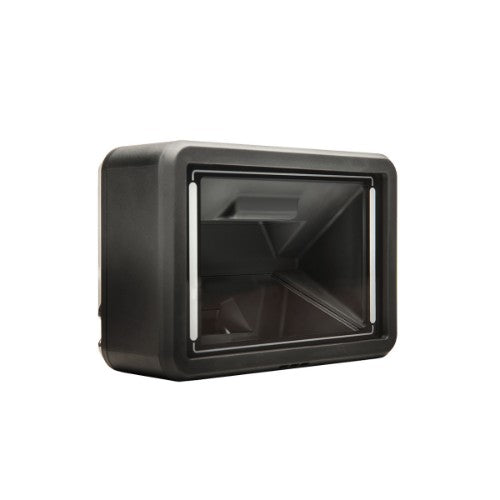

The M-11 is an omni-directional presentation scanner, which means the scanner will scan the product or ticket from any direction. This enables an easy and efficient transaction, because the barcodes are scanned whichever way you hold them in front of the scanner.
Applications
The M-11 is perfectly suitable for parking areas and ticketing among other applications. The combination of an impressive design, ease of use and an excellent price-performance ratio makes the M-11 the ideal solution for point-of sales (POS) check-out applications, reading barcodes from mobile phones in mobile marketing applications and document handling within banks and post offices.
How we describe the M-11
The M-11 is an extraordinary product in Opticon’s range. The M-11 is the presentation scanner, combining a powerful 2D CMOS Imager with a stylish design and omni-directional capabilities. The scanner can be triggered manually or automatically, scanning at a maximum speed of 120 fps. With this scanner you can scan hands-free, just position the scanner on you counter or desk and move the barcode in front of the imager. The scanner will do the rest of the work.
The scanner is also durable with a rating of IP42 and a drop resistance of 1.5m upon concrete. The communication is USB and the black color makes it suitable for any counter or embedded in your scanning solutions for ticketing or passport and ID scanning at customs, gates, schools, prisons and so on!
Key Features
- Supports all common 1D & 2D codes
- Omni directional scanning
- Imaging for mobile coupons
- 360° high speed reading
- High speed scanning; 120 fps
- Several trigger options

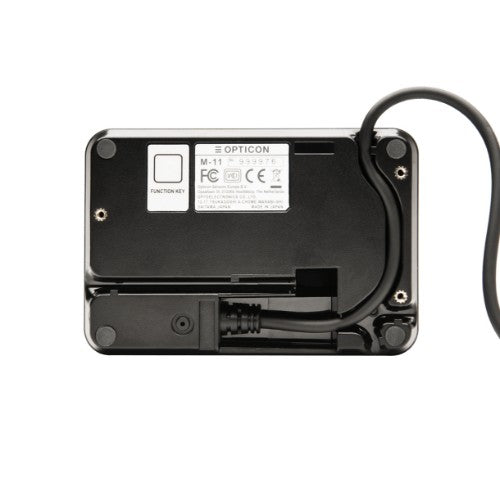

- Flexible cable outlet – 4 directions
Description
The M-11 is an omni-directional scanner for on top of the counter as built-in. This scanner comes with high performance 2D CMOS Imager along with a well thought out design. The M-11 can be used as built in scanner in parking areas or as a stationary scanner on the counter in retail. Because the M-11 can be embedded into your built in scanning solution, the M-11 is perfectly suited for scanning passports and ID as well. Of course these are just examples as the M-11 can bring a scanning solution to any business.The M-11 is an omni-directional presentation scanner, which means the scanner will scan the product or ticket from any direction. This enables an easy and efficient transaction, because the barcodes are scanned whichever way you hold them in front of the scanner.
Applications
The M-11 is perfectly suitable for parking areas and ticketing among other applications. The combination of an impressive design, ease of use and an excellent price-performance ratio makes the M-11 the ideal solution for point-of sales (POS) check-out applications, reading barcodes from mobile phones in mobile marketing applications and document handling within banks and post offices.
How we describe the M-11
The M-11 is an extraordinary product in Opticon’s range. The M-11 is the presentation scanner, combining a powerful 2D CMOS Imager with a stylish design and omni-directional capabilities. The scanner can be triggered manually or automatically, scanning at a maximum speed of 120 fps. With this scanner you can scan hands-free, just position the scanner on you counter or desk and move the barcode in front of the imager. The scanner will do the rest of the work.
The scanner is also durable with a rating of IP42 and a drop resistance of 1.5m upon concrete. The communication is USB and the black color makes it suitable for any counter or embedded in your scanning solutions for ticketing or passport and ID scanning at customs, gates, schools, prisons and so on!
Specifications
| Scanning | |
|---|---|
| Type | Fixed bar code reader |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, GS1-128 (UCC/EAN-128), IATA, ISBN, ISSN, Industrial 2 of 5, Interleaved 2 of 5, JAN, MSI, Matrix 2 of 5, Plessey, S-Code, Telepen, Trioptic, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Codablock, Composite Codes, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Yaw reading angle | -70 - 70° |
| Tilt reading angle | 0 - 360° |
| Sensor type | CMOS |
| Scanner type | 1D/2D |
| Pitch reading angle | -60 - 60° |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Ports & interfaces | |
| Data transfer rate | 12 Mbit/s |
| Connectivity technology | Wired |
| Cable length | 2.1 m |
| Standard interfaces | RS-232, USB |
| Performance | |
| LED indicators | Yes |
| International Protection (IP) code | IP42 |
| Product colour | Black |
| Image formats supported | BMP, JPEG |
| Design | |
| Type | Fixed bar code reader |
| LED indicators | Yes |
| International Protection (IP) code | IP42 |
| Product colour | Black |
| Power | |
| Power source type | RS-232, USB |
| Weight & dimensions | |
| Width | 84.4 mm |
| Depth | 124.4 mm |
| Height | 48 mm |
| Weight | 220 g |
| Technical details | |
| Type | Fixed bar code reader |
| LED indicators | Yes |
| International Protection (IP) code | IP42 |
| Product colour | Black |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS |
| Operational conditions | |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
