Description

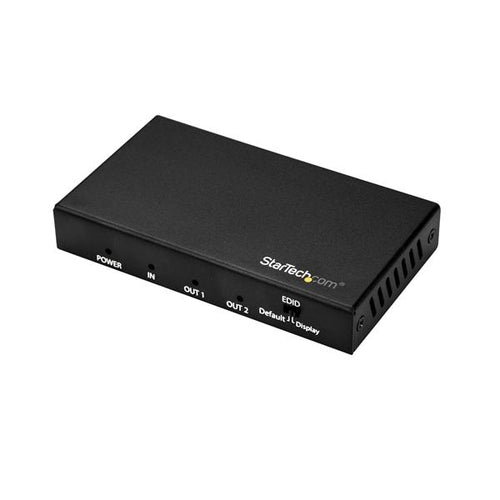

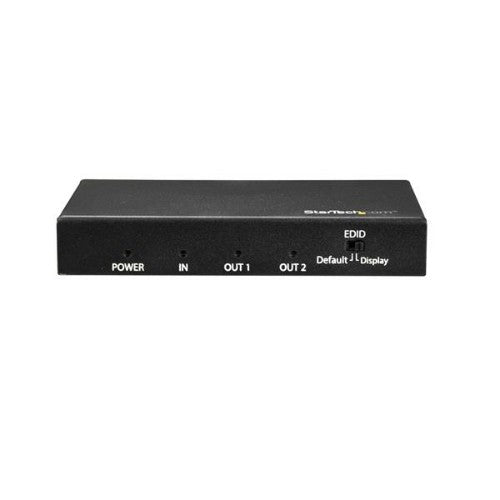

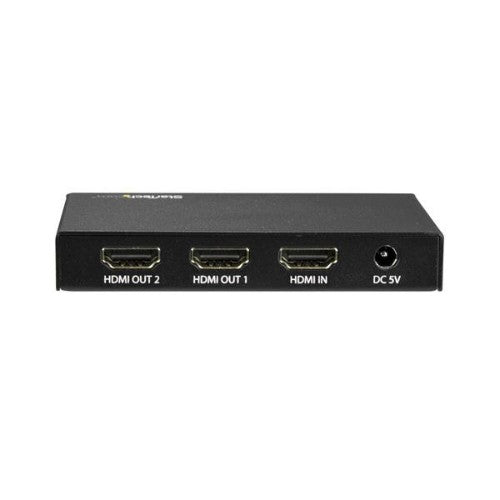

StarTech.com HDMI Splitter - 2-Port - 4K 60Hz - HDMI Splitter 1 In 2 Out - 2 Way HDMI Splitter - HDMI Port Splitter (ST122HD202)
This 2-Port 4K HDMI splitter connects your HDMI video source to two HDMI displays at the same time, without distorting or degrading your video signal. For dependable performance, the splitter features a durable metal housing that provides passive cooling.
True 4K at 60Hz and HDR
With transmission bandwidth up to 18Gbps, this HDMI splitter is fully compatible with your HDMI 2.0 equipment, supporting UHD resolutions up to 4096x2160 (4K) at 60Hz. For smooth video and color transitions, the splitter offers 4:4:4 chroma subsampling, so every pixel gets its own unique color.
The splitter also supports High Dynamic Range (HDR) imaging, offering a greater luminosity than standard digital imaging.
Widely Compatible
The 2-way HDMI splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with almost any HDMI source, or destination device such as computers, Blu-ray players, monitors, TVs and projectors. Perfect for digital signage applications, where equipment may vary throughout your site.
Easy Installation
For hassle-free setup, the 1x2 HDMI splitter offers easy plug-and-play installation. The splitter also saves you setup time by automatically passing EDID between your video source and the display attached to port 1, ensuring settings like native resolution and refresh rate are configured properly.
ST122HD202 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
Description
1 In 2 Out Video Splitter | HDMI 2.0 | HDR | 2-Year WarrantyThis 2-Port 4K HDMI splitter connects your HDMI video source to two HDMI displays at the same time, without distorting or degrading your video signal. For dependable performance, the splitter features a durable metal housing that provides passive cooling.
True 4K at 60Hz and HDR
With transmission bandwidth up to 18Gbps, this HDMI splitter is fully compatible with your HDMI 2.0 equipment, supporting UHD resolutions up to 4096x2160 (4K) at 60Hz. For smooth video and color transitions, the splitter offers 4:4:4 chroma subsampling, so every pixel gets its own unique color.
The splitter also supports High Dynamic Range (HDR) imaging, offering a greater luminosity than standard digital imaging.
Widely Compatible
The 2-way HDMI splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with almost any HDMI source, or destination device such as computers, Blu-ray players, monitors, TVs and projectors. Perfect for digital signage applications, where equipment may vary throughout your site.
Easy Installation
For hassle-free setup, the 1x2 HDMI splitter offers easy plug-and-play installation. The splitter also saves you setup time by automatically passing EDID between your video source and the display attached to port 1, ensuring settings like native resolution and refresh rate are configured properly.
ST122HD202 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Ports & interfaces | |
|---|---|
| Video ports quantity | 2 |
| Video port type | HDMI |
| Video out | 2x HDMI |
| HDMI version | 2.0 |
| Features | |
| LED indicators | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| Maximum resolution | 3840 x 2160 pixels |
| HDCP | Yes |
| Supported video modes | 720p, 1080p |
| Power LED | Yes |
| Plug and Play | Yes |
| Product colour | Black |
| Certification | CE, FCC |
| Power | |
| Input current | 0.2 A |
| Output current | 1 A |
| Power consumption (typical) | 5 W |
| Output voltage | 5 V |
| AC input voltage | 100 - 240 V |
| Weight & dimensions | |
| Weight | 159 g |
| Dimensions (WxDxH) | 56 x 100 x 17 mm |
| Package weight | 402 g |
| Package depth | 100 mm |
| Package width | 55 mm |
| Package height | 16 mm |
| Packaging data | |
| Package weight | 402 g |
| Package depth | 100 mm |
| Package width | 55 mm |
| Package height | 16 mm |

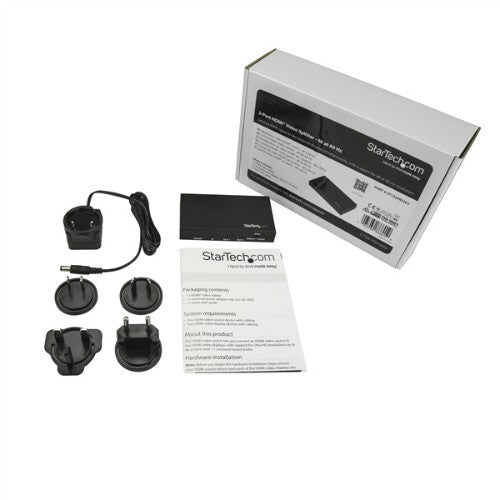

| Packaging content | |
| AC adapter included | Yes |
| User guide | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Video | |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| Maximum resolution | 3840 x 2160 pixels |
| HDCP | Yes |
| Supported video modes | 720p, 1080p |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | CE, FCC |
| Indication | |
| LED indicators | Yes |
| Power LED | Yes |
| Technical details | |
| Supported audio channels | 7.1 |
| Package width | 55 mm |
| Package height | 16 mm |
| Video out | 2x HDMI |
| Plug and Play | Yes |
| HDMI version | 2.0 |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
