Description

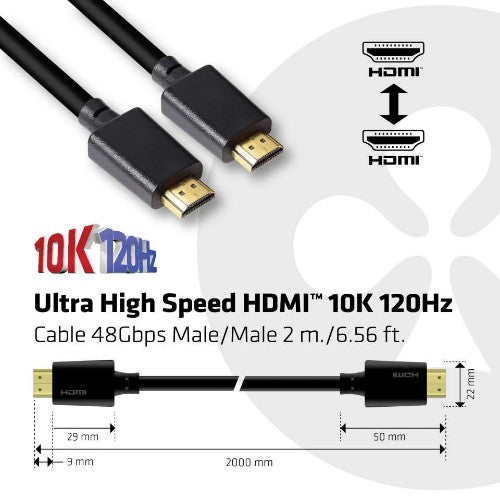

Ultra High Speed HDMI™2.1 Cable 10K 120Hz 48Gbps M/M 2 m./6.56 ft.
HDMI 2.1 Increased Bandwidth to 48Gbps.
The increase in maximum bandwidth compared to previous versions is
achieved by increasing both the bitrate of the data channels (from 6Gbps
to 12Gbps) and the number of channels (from 3 to 4). This allows support
for resolutions up to supports 10K at 120Hz!
New feature included in the 2.1 Specification is Display Stream Compression
(DSC) 1.2 , this is used for video formats higher than 8K with 4:2:0.
Enhanced refresh rate features:
-Variable Refresh Rate (VRR) reduces or eliminates lag, stutter and frame
tearing for more fluid motion in games
-Quick Media Switching (QMS) for movies and video eliminates the delay that
can result in blank screens before content is displayed
-Quick Frame Transport (QFT) reduces latency.
HDMI 2.1 also supports Static- and Dynamic HDR metadata.
All HDMI 2.1 features are fully supported by this Club3D CAC-1372 Cable. It is
the ideal solution for the ultimate future proof HDMI™ experience.
Key Features
- Supports HDMI 2.1 specifications
- Supports Resolutions up to 10K 120Hz
- Supports Bandwidth up to 48Gbps
Description
The Club 3D Ultra High Speed HDMI™ 2.1 Cable is build to handle the highest quality video- and audio signals.HDMI 2.1 Increased Bandwidth to 48Gbps.
The increase in maximum bandwidth compared to previous versions is
achieved by increasing both the bitrate of the data channels (from 6Gbps
to 12Gbps) and the number of channels (from 3 to 4). This allows support
for resolutions up to supports 10K at 120Hz!
New feature included in the 2.1 Specification is Display Stream Compression
(DSC) 1.2 , this is used for video formats higher than 8K with 4:2:0.
Enhanced refresh rate features:
-Variable Refresh Rate (VRR) reduces or eliminates lag, stutter and frame
tearing for more fluid motion in games
-Quick Media Switching (QMS) for movies and video eliminates the delay that
can result in blank screens before content is displayed
-Quick Frame Transport (QFT) reduces latency.
HDMI 2.1 also supports Static- and Dynamic HDR metadata.
All HDMI 2.1 features are fully supported by this Club3D CAC-1372 Cable. It is
the ideal solution for the ultimate future proof HDMI™ experience.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 144 Hz |
| HDMI Ethernet channel | Yes |
| Audio Return Channel (ARC) | Yes |
| Product colour | Black |
| Cable length | 2 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Magnetically shielded | Yes |
| AWG wire size | 28 |
| HDMI version | 2.1 |
| Data transfer rate | 48 Gbit/s |
| 3D | Yes |
| Maximum resolution | 10240 x 4320 pixels |
| HDCP | Yes |
| Plug and Play | Yes |
| Certification | Meets ROHS, FCC, and CE EMI requirements |
| Quantity per pack | 1 pc(s) |
| Certificates | |
| Certification | Meets ROHS, FCC, and CE EMI requirements |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Weight | 118 g |
| Package weight | 46 g |
| Package width | 145 mm |
| Package depth | 45 mm |
| Package height | 145 mm |
| Package type | Box |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Package type | Box |
| Packaging data | |
| Package weight | 46 g |
| Package width | 145 mm |
| Package depth | 45 mm |
| Package height | 145 mm |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| Packaging composition | |
| Plastic packaging weight | 5 g |
| Paper/cardboard packaging weight | 46 g |
| Technical details | |
| Plastic packaging weight | 5 g |
| Compliance certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 10 pc(s) |
| Harmonized System (HS) code | 8544 4290 |
