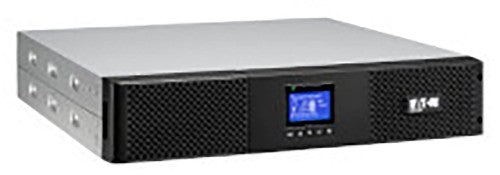

9SX, 2000 VA, 1800 W, 1x IEC-320-C14, 8x IEC-320-C13, 200-240 V, 50/60 Hz, USB, RS-232, 2U, 86.5x438x608 mm
Key Features
- Online double conversion topology
- Up to 95% efficiency in Online mode (ENERGY STAR qualified UPS)
- Next-generation graphical LCD display (7 languages)
- Provides more real power (watts) to protect more equipment with a 0.9 power factor
- Energy metering - kWh values can be monitored using the LCD
- Eaton ABM battery management technology uses an innovative three-stage charging technique that extends battery life by up to 50%
Description
The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in versatile Rack/Tower format with up to 95% efficiency.
Specifications
| Power |
|---|
| Output power |
1800 W |
| Input operation voltage (min) |
190 V |
| Input operation voltage (max) |
276 V |
| Maximum current |
10 A |
| Output power capacity |
2 kVA |
| Performance |
|---|
| UPS topology |
Double-conversion (Online) |
| Noise level |
45 dB |
| Features |
|---|
| Output frequency |
50/60 Hz |
| UPS topology |
Double-conversion (Online) |
| Output power |
1800 W |
| Input operation voltage (min) |
190 V |
| Input operation voltage (max) |
276 V |
| Maximum current |
10 A |
| Noise level |
45 dB |
| Output power capacity |
2 kVA |
| Input frequency |
40 - 70 Hz |
| Ports & interfaces |
|---|
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RS-232 |
| AC outlets quantity |
9 AC outlet(s) |
| AC outlet types |
C13 coupler, C14 coupler |
| Power plug |
C14 coupler |
| USB 2.0 ports quantity |
1 |
| Design |
|---|
| Rack capacity |
2U |
| Form factor |
Rackmount |
| Product colour |
Black |
| Safety |
IEC/EN 62040-1, UL 1778, CSA 22.2 |
| Certification |
IEC/EN 62040 -2 , FCC B, CISPR22 B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Certificates |
|---|
| Certification |
IEC/EN 62040 -2 , FCC B, CISPR22 B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC |
| Safety |
IEC/EN 62040-1, UL 1778, CSA 22.2 |
| Safety regulation & standards |
|---|
| Safety |
IEC/EN 62040-1, UL 1778, CSA 22.2 |
| Weight & dimensions |
|---|
| Weight |
26.5 kg |
| Width |
438 mm |
| Height |
86.5 mm |
| Depth |
608 mm |
