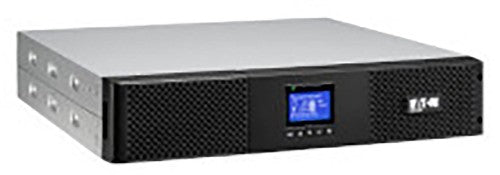

Eaton 9SX uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1350 W 7 AC outlet(s)

9SX, 1500 VA, 1350 W, 1x IEC-320-C14, 6x IEC-320-C13, 200-240 V, 50/60 Hz, USB, RS-232, 2U, 86.5x438x438 mm

Description

9SX 1500i Rack2U

Specifications

Power
Output power	1350 W
Input operation voltage (min)	190 V
Input operation voltage (max)	276 V
Maximum current	10 A
Output power capacity	1.5 kVA
Performance
UPS topology	Double-conversion (Online)
Noise level	43 dB
Features
Output frequency	50/60 Hz
UPS topology	Double-conversion (Online)
Output power	1350 W
Input operation voltage (min)	190 V
Input operation voltage (max)	276 V
Maximum current	10 A
Noise level	43 dB
Output power capacity	1.5 kVA
Input frequency	40 - 70 Hz
Ports & interfaces
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
AC outlets quantity	7 AC outlet(s)
AC outlet types	C13 coupler, C14 coupler
Power plug	C14 coupler
Design
Rack capacity	2U
Form factor	Rackmount
Product colour	Black
Safety	IEC/EN 62040-1, UL 1778, CSA 22.2
Certification	IEC/EN 62040 -2 , FCC B, CISPR22 B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Technical details
Output frequency	50/60 Hz
Certificates
Certification	IEC/EN 62040 -2 , FCC B, CISPR22 B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC
Safety	IEC/EN 62040-1, UL 1778, CSA 22.2
Safety regulation & standards
Safety	IEC/EN 62040-1, UL 1778, CSA 22.2
Weight & dimensions
Weight	18.4 kg
Width	438 mm
Height	86.5 mm
Depth	438 mm
