2 x Schuko/3 x IEC, 220-240 V AC, 2200 VA, 1320 W, Black
Key Features
- Built-in AVR protects against voltage fluctuation
- Powerful microprocessor design
- AC auto restart
- DC Start
- Includes a USB port
Description
The Conceptronic UPS provides long-lasting, reliable battery backup for the home or small office. The unit is simple to install and operate, offering an easy and safe way of protecting your systems from harmful power surges and failures. Stylish, compact design makes the UPS ideal for limited office and home working spaces.
Specifications
| Power |
|---|
| Output power |
1320 W |
| Input operation voltage (min) |
220 V |
| Input operation voltage (max) |
240 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Output power capacity |
2.2 kVA |
| Battery |
|---|
| Battery type |
MS7-12B |
| Battery voltage |
24 V |
| Battery recharge time(90%) |
8 h |
| Performance |
|---|
| Audible alarm modes |
Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| UPS topology |
Line-Interactive |
| Auto-restart |
Yes |
| Automatic Voltage Regulation (AVR) |
Yes |

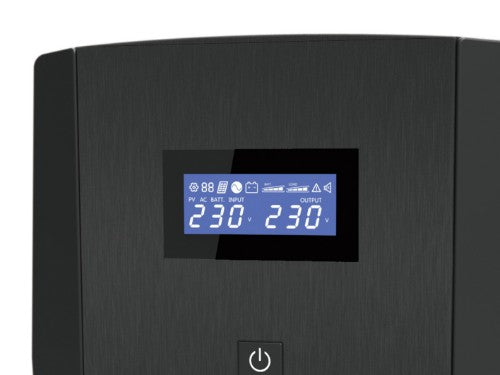

| LED indicators |
Yes |
| Power protection features |
Overload |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Country of origin |
China |
| Audible alarm modes |
Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| UPS topology |
Line-Interactive |
| Auto-restart |
Yes |
| Automatic Voltage Regulation (AVR) |
Yes |
| Output power |
1320 W |
| Input operation voltage (min) |
220 V |
| Input operation voltage (max) |
240 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Power protection features |
Overload |
| Audible alarm(s) |
Yes |
| Output power capacity |
2.2 kVA |
| Package type |
Box |
| Ports & interfaces |
|---|
| USB port |
Yes |

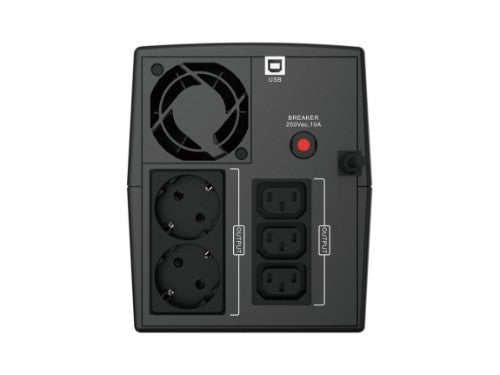

| Number of type F outputs |
2 |
| AC outlets quantity |
5 AC outlet(s) |
| AC outlet types |
IEC Jumpers, Type F |
| USB 2.0 ports quantity |
1 |
| Design |
|---|
| Country of origin |
China |
| Form factor |
Compact |
| LED indicators |
Yes |
| Product colour |
Black |
| Cooling type |
Active |
| Built-in fan |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Technical details |
|---|
| Harmonized System (HS) code |
85078000 |
| Cooling |
|---|
| Cooling type |
Active |
| Built-in fan |
Yes |
| Weight & dimensions |
|---|
| Package type |
Box |
| Package width |
193 mm |
| Package depth |
247 mm |
| Package height |
335 mm |
| Weight |
10 kg |
| Width |
148 mm |
| Package weight |
10.4 kg |
| Height |
178 mm |
| Depth |
298 mm |
| Packaging data |
|---|
| Quick installation guide |
Yes |
| Cables included |
USB cable |
| Package type |
Box |
| Package width |
193 mm |
| Package depth |
247 mm |
| Package height |
335 mm |
| Package weight |
10.4 kg |
| Logistics data |
|---|
| Products per master (outer) case |
1 pc(s) |
| Master (outer) case width |
210 mm |
| Master (outer) case length |
274 mm |
| Master (outer) case height |
356 mm |
| Master (outer) case gross weight |
10.8 kg |
| Harmonized System (HS) code |
85078000 |
| Other features |
|---|
| Battery type |
MS7-12B |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Cables included |
USB cable |
