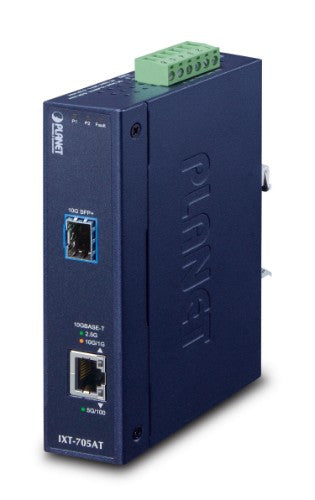

PLANET IXT-705AT network media converter 20000 Mbit/s Blue

Industrial 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter

Key Features

• Physical Port
• 1-port 10000/5000/2500/1000/100BASE-T RJ45 interface with auto MDI/MDI-X function
• 1-port 10GBASE-X SFP+ slot interface
• Layer 2 Features
• IEEE 802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliant
• Supports auto-negotiation and 100Mbps half/full duplex and 1/2.5/5/10Gbps full duplex mode
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• 16K jumbo frame size support
• Automatic address learning and address aging
• Industrial Case and Installation
• Slim-type IP30 metal case
• DIN rail and wall-mount design
• Redundant power design
• 12 to 48V DC, redundant power with polarity reverse protect function
• AC 24V power adapter acceptable
• Supports 6000 VDC Ethernet ESD protection
• 100 meters over Cat 6A at 10Gbps
• 40 to 75 degrees C operating temperature
• Plug and Play installation

Description

Flexible, Reliable and Industrial-grade Backbone Network Distance Extension Solution PLANET IXT-705AT is the smallest Industrial-grade 10G Ethernet Media Converter providing non-blocking wire-speed performance and great flexibility for 10 Gigabit Ethernet extension in harsh industrial environment. It is equipped with one 100Mbps,1Gbps, 2.5Gbps, 5Gbps and 10GBASE-T RJ45 copper interface and one 10GBASE-X SFP+ fiber optic interface delivered in an IP30 rugged but compact-sized case with redundant power system. The IXT-705AT is ideal for wide applications from copper to fiber media conversion wherever 10Gigabit bandwidth is required in climatically demanding environments with wide temperature ranging from -40 to 75 degrees C. High Performance 10Gbps Ethernet Capacity The IXT-705AT offers the wire-speed transfer of packets without the risk of packet loss. The high data throughput of 20Gbps internal fabric and the auto negotiation support in its 10 Gigabit ports makes it ideal for most 10 Gigabit environments. With 16K jumbo frame feature, the IXT-705AT can handle extremely large amounts of data transmission in a secure topology linking to data center cloud computing, enterprise backbones, campus networks, and carrier infrastructure. Fiber-optic Linking Capability Enables Extension of Network Deployment The SFP+ slot of the IXT-705AT is compatible with 10GBASE-SR or 10GBASE-LR (Small Form Factor Pluggable) fiber-optic transceivers. The fiber optic uplink capability guarantees the throughput to all nodes hooked into the network and the 10 Gigabit Ethernet distance can be extended from 300 meters (multi-mode fiber cable) to 10/40/60 kilometers (single-mode fiber cable). It is ideal for applications within the factory data centers and distributions. Environmentally Hardened Design The IXT-705AT is equipped with the slim-type IP30 metal case for easy deployment in heavy Industrial demanding environments. With IP30 industrial case protection, the IXT-705AT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C, the IXT-705AT can be placed in almost any difficult environment. The IXT-705AT also allows either DIN rail or wall mounting for efficient use of cabinet space. Convenient and Reliable Power System To enhance the reliability and flexibility of the operation, the IXT-705AT is equipped with two DC power input connectors for redundant power supply installation. It also possesses an integrated power supply source with wide-ranging voltages (12 to 48V DC or 24V AC) for worldwide high availability applications requiring dual or backup power inputs, incorporated into customer’s automation network to enhance system reliability and uptime. Robust Protection The IXT-705AT provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate. Hardened Environment Application PLANET IXT-705AT Industrial Gigabit Media Converter offers full port 10 Gigabit speed, and has a strong, stable and long-distance connection and flexible industrial networking deployment. It provides very high reliability and security features to make sure the continuous operation in harsh environments such as transportations, factories, outdoors and places where extremely low or high temperatures can be experienced.

Specifications

Network
Fiber optic connector	SFP+
Jumbo frames support	Yes
Flow control support	Yes
Jumbo frames	16000
Networking standards	IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	100,1000,2500,5000,10000 Mbit/s
Duplex system	Full, Half
Auto MDI/MDI-X	Yes
Maximum data transfer rate	20000 Mbit/s
Technical details
International Protection (IP) code	IP30
Housing material	Metal
Maximum transfer distance	100 m
Plug and Play	Yes
Internal	No
Harmonized System (HS) code	85176990
Performance
Jumbo frames support	Yes
Flow control support	Yes
Plug and Play	Yes
Maximum transfer distance	100 m
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SFP+
Indication
LED indicators	Alarm, Fault, Link, Power
Design
DIN rail mounting	Yes
International Protection (IP) code	IP30
Housing material	Metal
LED indicators	Alarm, Fault, Link, Power
Product colour	Blue
Certification	FCC Part 15 Class A, CE
Internal	No
Power
Input voltage	12 - 48 V
Management features
Plug and Play	Yes
Colour
Product colour	Blue
Weight & dimensions
Width	32 mm
Depth	87 mm
Weight	458 g
Height	135 mm
Operational conditions
Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Certificates
Certification	FCC Part 15 Class A, CE
