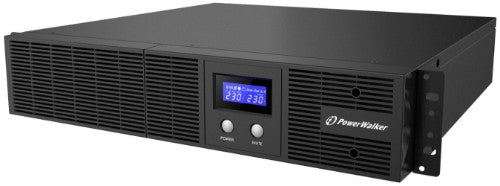

PowerWalker VI 1200 RLE Line-Interactive 1.2 kVA 720 W 4 AC outlet(s)

Line-Interactive, 1200VA / 720W, 14.7kg

Key Features

• Automatic Voltage Regulator with Pure Sine Wave output
• USB with Human Interface Device (HID) support and Intelligent Slot for communication cards
• Auto dimming screen (UPS is woken up with mute button)
• Fully automatic and silent operation

Description

PowerWalker VI 1200-3000 RLE is a compact line-interactive series with rack design. The unit provides Pure Sine Wave output with voltage regulation, offering optimal protection for small motor-based loads and servers with APFC power supplies. The USB port features HID support, which allows native communication with nearly all common operating systems – removing the need for installing additional software.

Specifications

Power
Output power	720 W
Input operation voltage (min)	165 V
Input operation voltage (max)	290 V
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Output power capacity	1.2 kVA
Performance
UPS topology	Line-Interactive
Power protection features	Overload
Noise level	50 dB
Features
UPS topology	Line-Interactive
Output power	720 W
Input operation voltage (min)	165 V
Input operation voltage (max)	290 V
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Power protection features	Overload
Noise level	50 dB
Output power capacity	1.2 kVA
Input frequency	45/55 Hz

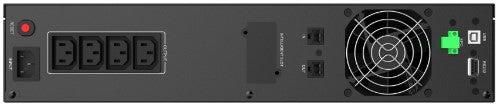

Ports & interfaces
USB port	Yes
AC outlets quantity	4 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
RS-232 ports	1
Battery
Number of batteries supported	2
Battery voltage	12 V
Battery capacity	7.2 Ah
Typical backup time at half load	11.5 min
Typical backup time at full load	3.1 min
Battery recharge time(90%)	4 h
Design
Product colour	Black
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Technical details
Harmonized System (HS) code	85078000
Weight & dimensions
Weight	14.7 kg
Width	438 mm
Height	88 mm
Depth	430 mm
