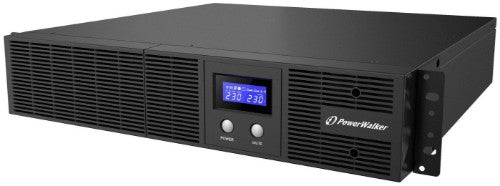

PowerWalker VI 3000 RLE uninterruptible power supply (UPS) 3 kVA 1800 W 8 AC outlet(s)

Line-Interactive, 3000VA / 1800W, 21.8kg

Key Features

• Automatic Voltage Regulator with Pure Sine Wave output
• USB with Human Interface Device (HID) support and Intelligent Slot for communication cards
• Auto dimming screen (UPS is woken up with mute button)
• Fully automatic and silent operation

Description

PowerWalker VI 1200-3000 RLE is a compact line-interactive series with rack design. The unit provides Pure Sine Wave output with voltage regulation, offering optimal protection for small motor-based loads and servers with APFC power supplies. The USB port features HID support, which allows native communication with nearly all common operating systems – removing the need for installing additional software.
Improved internal heat dissipation makes sure the UPS runs silently during standard operation. A comprehensive LCD panel provides all the necessary information and will auto-dim after a few seconds. These features make the UPS series an attractive solution for home use as well.

Specifications

Power
Output power factor	0.6
Output power	1800 W
Input operation voltage (min)	165 V
Input operation voltage (max)	290 V
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Output power capacity	3 kVA
Performance
Power protection features	Overload
Noise level	50 dB
Features
Output power factor	0.6
Output power	1800 W
Input operation voltage (min)	165 V
Input operation voltage (max)	290 V
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Power protection features	Overload
Noise level	50 dB
Output power capacity	3 kVA
Input frequency	50 Hz
Ports & interfaces
USB port	Yes
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C20 coupler
RS-232 ports	1
Battery
Number of batteries supported	4
Battery voltage	12 V
Battery capacity	7.2 Ah
Typical backup time at half load	7.4 min
Typical backup time at full load	1.3 min
Battery recharge time(90%)	4 h
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Technical details
Harmonized System (HS) code	85078000
Weight & dimensions
Weight	21.8 kg
Width	438 mm
Height	88 mm
Depth	430 mm
Logistics data
Harmonized System (HS) code	85078000
