PowerWalker Basic VI 850 SB uninterruptible power supply (UPS) Line-Interactive 0.85 kVA 480 W 2 AC outlet(s)

Basic VI 850 SB, Line-Interactive, 850VA / 480W, 162-290 VAC, 50Hz or 60Hz

Key Features

• Human Interface Device (HID) compatible USB connection (no additional drivers needed)
• Compact and lightweight
• Equipped with Boost and Buck AVR to stabilize output voltage
• Cold (DC) Start Function

Description

The PowerWalker Basic VI 650/850/1000 SB series is designed to answer the essential market needs. This line interactive UPS will protect your load from power failures and voltage disturbances, while remaining affordable and compact. It is equipped with a USB port with HID support allowing easy and immediate communication with any O/S.

Specifications

Power
Output frequency regulation	1 Hz
Output power factor	0.56
Output power	480 W
Input operation voltage (min)	162 V
Input operation voltage (max)	290 V
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Efficiency	96.4%
Output power capacity	0.85 kVA
Performance
UPS topology	Line-Interactive
Power protection features	Overload
Features
UPS topology	Line-Interactive
Output frequency regulation	1 Hz
Output power factor	0.56
Output power	480 W
Input operation voltage (min)	162 V
Input operation voltage (max)	290 V
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Efficiency	96.4%
Power protection features	Overload
Output power capacity	0.85 kVA
Input frequency	50/60 Hz
Ports & interfaces
USB port	Yes

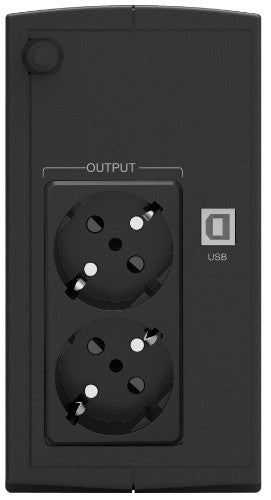

AC outlets quantity	2 AC outlet(s)
AC outlet types	Type F
Battery
Number of batteries supported	1
Battery voltage	12 V
Battery capacity	6 Ah
Battery recharge time	8 h
Typical backup time at half load	4.5 min
Design
Form factor	Tower
Product colour	Black
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Technical details
Harmonized System (HS) code	85078000
Weight & dimensions
Package width	122 mm
Package depth	286 mm
Package height	225 mm
Weight	4.2 kg
Width	84 mm
Package weight	3.8 kg
Height	158 mm
Depth	252 mm
Packaging data
Manual	Yes
Package width	122 mm
Package depth	286 mm
Package height	225 mm
Bundled software	PowerMaster
Package weight	3.8 kg
Logistics data
Harmonized System (HS) code	85078000
Packaging content
Manual	Yes
Bundled software	PowerMaster
