Pole mount for fixed dome cameras
Key Features
- Cable gasket to prevent insect infestation; Impact-resistant to prevent vandalism; Robust and safe pole installation; Suitable for indoor and outdoor use; Support for 1.5” NPS threaded Axis pendant kits
Description

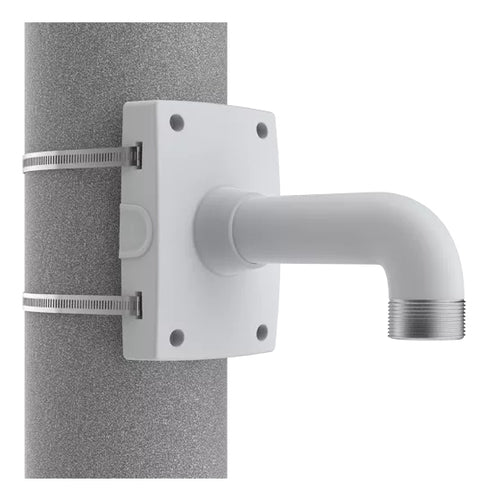

AXIS T91B67 Pole Mount is suitable for all Axis fixed dome cameras compatible with 1.5” NPS threaded Axis pendant kits. Thanks to its impact-resistant and outdoor-proven material, the mount can be used in both indoor and outdoor environments. AXIS T91B67 is intended for poles with a diameter between 65–165 mm (2 1/2–6 1/2 in), and also for beams. It features 3/4" conduit side entries for protected cable runs, and a closed back with cable gasket for protection against insect infestation.
Specifications
| Features |
|---|
| Maximum weight capacity |
15 kg |
| Connecting thread |
3/4" |
| Material |
Aluminium |
| Product colour |
White |
| Certification |
IEC 60721, IEC 60721-4 Class 4M3, MIL-STD 810G 509.5, NEMA 250 Type 4X, WEEE |
| Technical details |
|---|
| Maximum weight capacity |
15 kg |
| Connecting thread |
3/4" |
| Material |
Aluminium |
| Product colour |
White |
| Certification |
IEC 60721, IEC 60721-4 Class 4M3, MIL-STD 810G 509.5, NEMA 250 Type 4X, WEEE |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Width |
134 mm |
| Depth |
252 mm |
| Height |
194 mm |
| Weight |
1.2 kg |
