Description

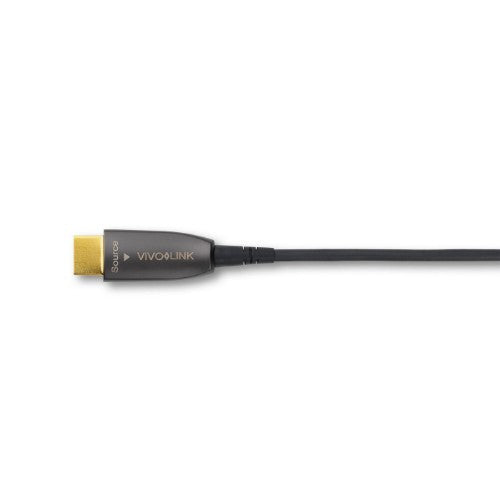

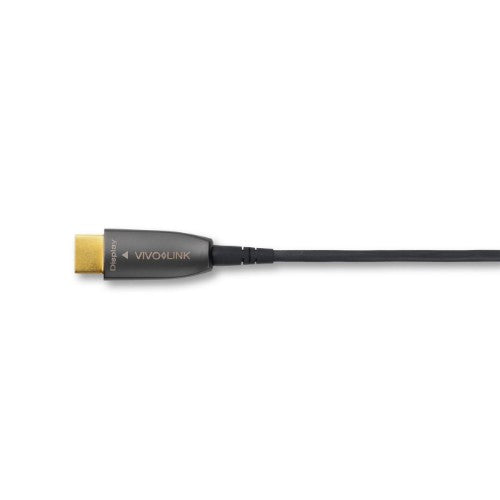

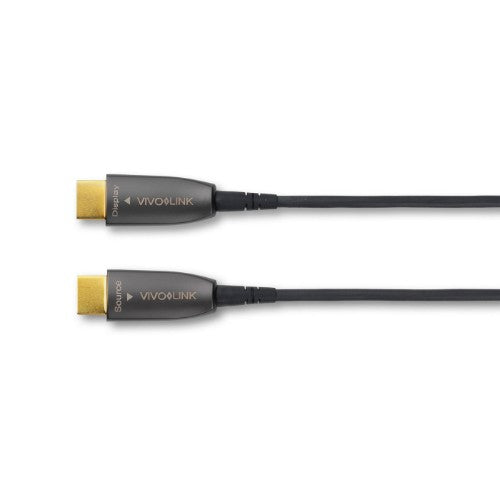

Optic HDMI 4K Cable 10m
Typical installation:
Places where high resolution is required on long distance.
Tensile Strength (Pull resistance): 20 kg.
Key Features
- CEC & ARC Support
- Cable is built with military standard optical fiber
- Power consumption only 0,25W
- Optic fiber is covered with copper wires
- Kevlar filling inside makes the cable extremely strong and robust
- Lock ring in cable head secure no damage by pulling in cable
- Cable head is made by molded metal
- Connector pins are gold bladed for a reliable and perfect contact
- The optical fiber converter is extremly high quality chip set
- Minimum bend radius: 20mm
- Unlimited number of bends with bend radius down to 20mm
- working temperature: -20 degree to + 60 degree
Description
HDMI 2.0 Support 4K/60Hz 4:4:4 18Gbps, HDR 12bit, HDCP2.2, 3D & ARC. Slim size of 4.0mm.Typical installation:
Places where high resolution is required on long distance.
Tensile Strength (Pull resistance): 20 kg.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 60 Hz |
| Dolby technologies | DTS-HD Master Audio |
| Colour depth | 16 bit |
| Cable colour | Black |
| HDMI Ethernet channel | Yes |
| Audio Return Channel (ARC) | Yes |
| Product colour | Black |
| Cable length | 10 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Cable material | Steel |
| HDMI version | 2.0 |
| Data transfer rate | 18 Gbit/s |
| 3D | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 3840 x 2160 |
| Supported video modes | 1080p |
| HDCP | Yes |
| Plug and Play | Yes |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Pull-resistant connector(s) | No |
| Pull-off force | 1 kg |
| Quantity per pack | 1 pc(s) |
| HDCP version | 2.2 |
| RGB support | 4:4:4 |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Package weight | 220 g |
| Weight | 120 g |
| Package width | 184 mm |
| Package depth | 180 mm |
| Package height | 36 mm |
| Cable diameter | 2 cm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Cable colour | Black |
| Compliance certificates | RoHS |
| Other features | |
| Cable colour | Black |
| Width | 184 mm |
| Height | 36 mm |
| Depth | 180 mm |
| Quantity per box | 30 pc(s) |
| Logistics data | |
| Master (outer) case width | 38.5 mm |
| Master (outer) case height | 26 mm |
| Harmonized System (HS) code | 84733080 |
