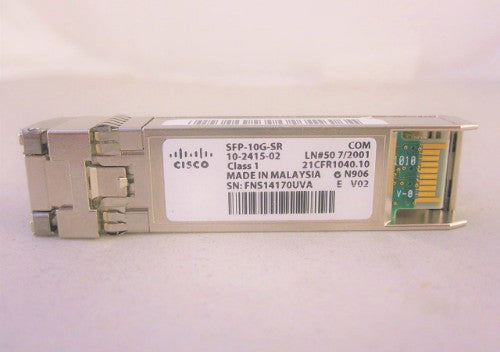

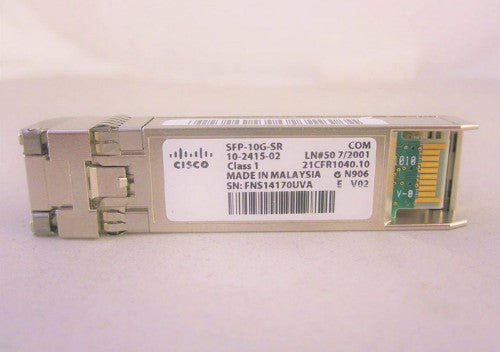

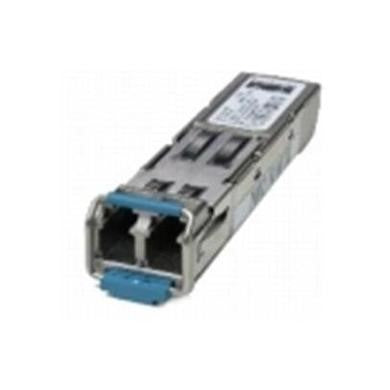

10GBASE-SR SFP Module for 10-Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (SFP-10G-SR=)
Key Features
- LINK LENGTH: Supports link lengths of 26 m on standard FDDI-grade multimode fibre; up to 300 m link lengths possible using Optical Multimode 3 (OM3) and 400 m using Optical Multimode 4 (OM4)
- COMPACT: Industry-smallest 10G form factor for greatest density per chassis
- HOT SWAPPABLE: Plugs into an Ethernet SFP+ port of a Cisco switch with no need to shut down if installing or replacing
- VERSATILITY: SFP receiver/transceiver module supports ‘pay-as-you-populate’ model for investment protection and ease of technology migration
- PEACE OF MIND: 5-year standard replacement warranty
Description
The Cisco 10GBASE-SR SFP Module delivers a wide variety of 10-Gigabit Ethernet connectivity options for data centre, enterprise server room and service provider transport applications. This hot-swappable input/output transceiver plugs into an Ethernet Enhanced Small Form-factor Pluggable (SFP+) port of a Cisco switch and offers optical interoperability with 10GBASE XENPAK, 10GBASE X2 and 10GBASE XFP interfaces on the same link.
Specifications
| Technical details |
|---|
| Wavelength |
850 nm |
| Maximum transfer distance |
300 m |
| Hot-swap |
Yes |
| Harmonized System (HS) code |
85176990 |
| Performance |
|---|
| Hot-swap |
Yes |
| Wavelength |
850 nm |
| Maximum transfer distance |
300 m |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Design |
|---|
| Country of origin |
China |
| Management features |
|---|
| Hot-swap |
Yes |
| Weight & dimensions |
|---|
| Width |
13.4 mm |
| Depth |
56.5 mm |
| Weight |
75 g |
| Height |
8.5 mm |
| Package depth |
158.8 mm |
| Package width |
143 mm |
| Package height |
44.5 mm |
| Package weight |
90.7 g |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Packaging data |
|---|
| Package depth |
158.8 mm |
| Package width |
143 mm |
| Package height |
44.5 mm |
| Package weight |
90.7 g |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Harmonized System (HS) code |
85176990 |
| Other features |
|---|
| Interface |
SFP |
| Connector(s) |
LC/PC |
| Fiber type |
MMF |
