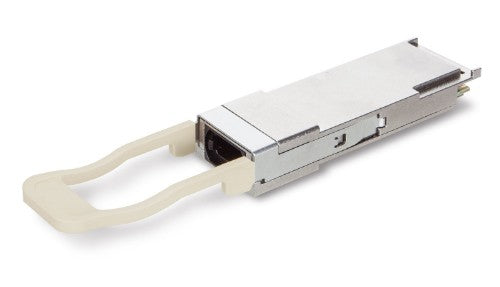

PLANET QSFP-40G-LR4 network transceiver module Fiber optic 40000 Mbit/s QSFP+ 1310 nm

40GBASE-LR4 QSFP+ Fiber Transceiver (Single mode, LC, 1310nm, DDM) – 10km

Key Features

• Comply with the IEEE 802.3ba 40GBASE-SR4/LR4 Ethernet standard
• QSFP+ multi-source agreement (MSA) compliant
• Single LC connector (QSFP-40G-LR4)
• MPO/MTP optical connector (QSFP-40G-SR4)
• Length up to 100m over OM3 fiber and 150m over OM4 fiber (QSFP-40G-SR4)
• Single power supply 3.3V
• Hot pluggable
• Support Digital Diagnostic Monitoring (DDM)
• Plug and Play Installation
• 0 to 60 degrees C operating temperature

Description

PLANET QSFP-40G series consists of Quad Small Form Factor Pluggable (QSFP) transceiver modules that are specifically designed for high-performance integrated duplex data link over single mode optical fiber. These transceiver modules are compliant with the QSFP Multisource Agreement (MSA) and hot pluggable. These modules offer an easy way to be installed in QSFP MSA compliant ports at any time without the interruption of the host equipment operation. The QSFP-40G series also supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

Specifications

Network
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Networking standards	IEEE 802.3ba
Maximum data transfer rate	40000 Mbit/s
Interface type	QSFP+
Technical details
Maximum transfer distance	10000 m
Wavelength	1310 nm
Performance
Product colour	Silver
SFP transceiver type	Fiber optic
Digital Diagnostics Monitoring (DDM)	Yes
Fiber optic connector	LC
Networking standards	IEEE 802.3ba
Maximum transfer distance	10000 m
Wavelength	1310 nm
Maximum data transfer rate	40000 Mbit/s
Interface type	QSFP+
Single-mode fiber (SMF) supported	Yes
Features
Product colour	Silver
Operational conditions
Operating temperature (T-T)	0 - 60 °C
