Description

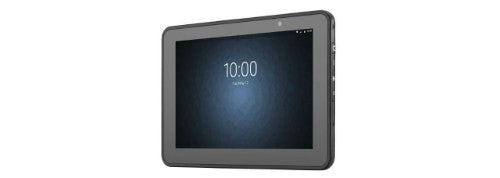

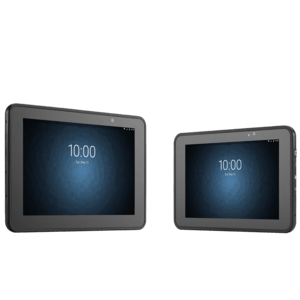

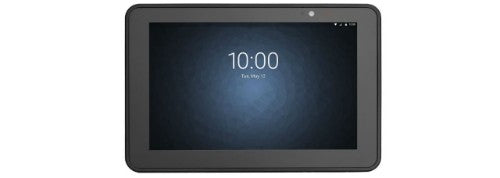

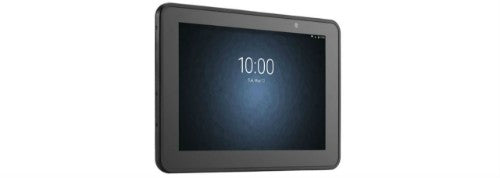

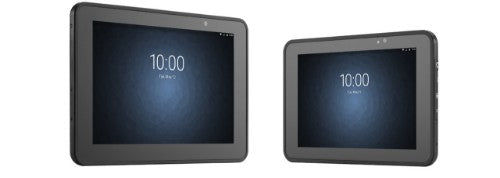

ET55, 8.3" Capacitive 10 point multi-touch 1920x1200, Intel Atom Processor Z3745, 2GB LPDDR3 RAM, 32GB eMMC Flash, 802.11 a/b/g/n/ac/d/h/i, Bluetooth v4.1, LTE, IP65, Android 6.0
Finally, a flexible business tablet you can customize for just about any job and any environment — from retail associates and warehouse workers inside the four walls to salespeople, delivery drivers and service technicians out in the field. You get the best of both worlds — consumer styling for your workers plus all the enterprise class features and options you need to meet business needs: enterprise durability, constant battery power, your choice of Android™ or Windows®, a rugged frame for extra durability in more demanding environments, two display sizes, GPS, NFC and fast Wi-Fi and cellular wireless connections — 802.11 a/b/g/n (Windows) and 802.11 a/b/g/n/ac/d/h/i (Android) Wi-Fi with the ET50 and 4G LTE with the ET55. When it comes to data capture, our tablets offer it all — two integrated cameras for image capture, bar code scanning and video calls; optional advanced scan engines and innovative Bluetooth scanners for comfortable intensive bar code capture; and three methods of data entry that work even if the screen is wet — an active stylus or a finger, with or without a glove.
STANDARD AND PROFESSIONAL CONFIGURATIONS TO MEET DIFFERENT BUSINESS NEEDS
The Standard Configuration includes Google Mobile Services (GMS) and Android for Work (AFW). GMS provides integrated Google applications such as Gmail, Google Maps, and Google Play Store, while AFW offers enterprise features such as Mobile Application Management (MAM). The Professional Configuration ships without Google GMS and AFW, eliminating all service connections, thereby maintaining system privacy while retaining Zebra value-adds. Both configurations are built on Android Open Source (AOSP).
Description
THE BEST OF CONSUMER-STYLING WITH ALL THE ENTERPRISE-CLASS FEATURESFinally, a flexible business tablet you can customize for just about any job and any environment — from retail associates and warehouse workers inside the four walls to salespeople, delivery drivers and service technicians out in the field. You get the best of both worlds — consumer styling for your workers plus all the enterprise class features and options you need to meet business needs: enterprise durability, constant battery power, your choice of Android™ or Windows®, a rugged frame for extra durability in more demanding environments, two display sizes, GPS, NFC and fast Wi-Fi and cellular wireless connections — 802.11 a/b/g/n (Windows) and 802.11 a/b/g/n/ac/d/h/i (Android) Wi-Fi with the ET50 and 4G LTE with the ET55. When it comes to data capture, our tablets offer it all — two integrated cameras for image capture, bar code scanning and video calls; optional advanced scan engines and innovative Bluetooth scanners for comfortable intensive bar code capture; and three methods of data entry that work even if the screen is wet — an active stylus or a finger, with or without a glove.
STANDARD AND PROFESSIONAL CONFIGURATIONS TO MEET DIFFERENT BUSINESS NEEDS
The Standard Configuration includes Google Mobile Services (GMS) and Android for Work (AFW). GMS provides integrated Google applications such as Gmail, Google Maps, and Google Play Store, while AFW offers enterprise features such as Mobile Application Management (MAM). The Professional Configuration ships without Google GMS and AFW, eliminating all service connections, thereby maintaining system privacy while retaining Zebra value-adds. Both configurations are built on Android Open Source (AOSP).
Specifications
| Display | |
|---|---|
| Display resolution | 1920 x 1200 pixels |
| Touch technology | Multi-touch |
| Touchscreen type | Capacitive |
| Display diagonal | 21.1 cm (8.3") |
| Processor | |
| Tjunction | 90 °C |
| Thermal Design Power (TDP) | 2 W |
| Stepping | C0 |
| Scenario Design Power (SDP) | 2 W |
| Processor threads | 4 |
| Processor series | Intel Atom Z3700 Series |
| Processor package size | 17 x 17 mm |
| Processor operating modes | 32-bit, 64-bit |
| Processor lithography | 22 nm |
| Processor codename | Bay Trail |
| Processor code | SR1SP |
| Processor cache type | L2 |
| Graphics & IMC lithography | 22 nm |
| Conflict-Free processor | Yes |
| Processor ARK ID | 80270 |
| Processor manufacturer | Intel |
| Processor boost frequency | 1.86 GHz |
| Processor frequency | 1.33 GHz |
| Processor model | Z3745 |
| Processor cores | 4 |
| Processor cache | 2 MB |
| Processor family | Intel Atom® |
| Memory | |
| Internal memory | 2 GB |
| Internal memory type | LPDDR3-SDRAM |
| Maximum internal memory | 4 GB |
| Memory clock speed | 1066 MHz |
| Storage | |
| Storage media | eMMC |
| Internal storage capacity | 32 GB |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSDXC |
| Maximum memory card size | 2 TB |
| Graphics | |
| Graphics card family | Intel |
| Graphics card | HD Graphics |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Camera | |
| Rear camera type | Single camera |
| Flash type | LED |
| Rear camera | Yes |
| Rear camera resolution (numeric) | 8 MP |
| Front camera | Yes |
| Front camera resolution (numeric) | 2 MP |
| Video recording | Yes |
| Rear camera flash | Yes |
| Network | |
| Mobile network connection | Yes |
| Mobile network generation | 3G |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Near Field Communication (NFC) | Yes |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
| Ports & interfaces | |
| Headphone out | Yes |
| USB 2.0 ports quantity | 1 |
| Micro-USB 2.0 ports quantity | 1 |
| Microphone in | No |
| Sensors | |
| Accelerometer | Yes |
| Proximity sensor | Yes |
| Design | |
| International Protection (IP) code | IP20, IP44 |
| Device type | Mobile tablet |
| Form factor | Slate |
| Product colour | Black |
| Harmonized System (HS) code | 84713000 |
| Performance | |
| Operating system installed | Android 6.0 |
| Accelerometer | Yes |
| Proximity sensor | Yes |
| Technical details | |
| Device type | Mobile tablet |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Near Field Communication (NFC) | Yes |
| Form factor | Slate |
| Product colour | Black |
| Processor manufacturer | Intel |
| Software | |
| Platform | Android |
| Operating system installed | Android 6.0 |
| Processor special features | |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel 64 | Yes |
| Embedded options available | No |
| Intel HD Graphics | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 5900 mAh |
| Weight & dimensions | |
| Width | 228 mm |
| Depth | 12.5 mm |
| Height | 150 mm |
| Weight | 555 g |
| Packaging content | |
| Keyboard included | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating vibration | 1.9 G |
| Non-operating vibration | 4.1 G |
| Logistics data | |
| Harmonized System (HS) code | 84713000 |
| Other features | |
| Processor ARK ID | 80270 |
| Processor manufacturer | Intel |
| Processor socket | BGA 1380 |
| Processor family | Intel Atom® |
| Harmonized System (HS) code | 84713000 |
