Description

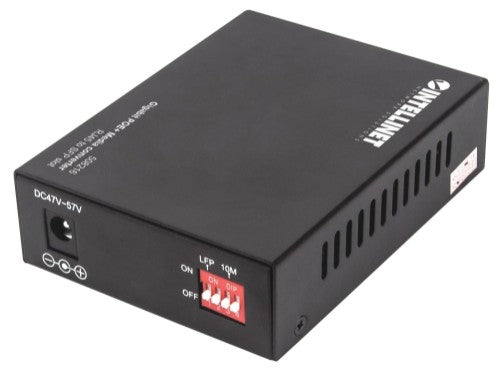

Gigabit PoE+ Media Converter, 1 x 1000Base-T RJ45 Port to 1 x SFP Port, PoE+ Injector
Expand the Size of an Existing Network.
The converter Provides fibre connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Since it offers building-to-building connectivity without the cost and disruption associated with the installation of additional routers, network admins can quickly incorporate this converter into their current setup and keep the network running like it should.
Power-over-Ethernet-Plus Capable
The Intellinet Gigabit PoE+ Media Converter brings power to where there is none, obviating the need to hire an electrician and run electrical lines. And because the converter supports the IEEE 802.3at / 802.3af standard, up to 30 watts is available for any compatible device.
Cabling Flexibility
Network managers can install fibre cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wall-mount installation. Several converters can be simultaneously installed into a 19"; rack-mountable chassis.
Key Features
- One 10/100/1000 RJ45 port, maximum distance of 100 m (300 ft.)
- One SFP port distance up to 120 km (75 mi.)
- Link Fault Pass Through (LFP) function for easier network maintenance
- Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (e.g., wireless access points, VoIP phones, IP cameras)
- Supports full-duplex and half-duplex mode with autonegotiation

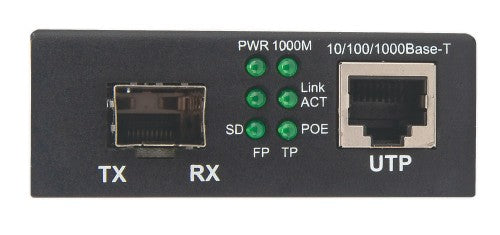

- Status LEDs for power and Link/TX for both ports
- IP30 slim-type metal case
- Three-year warranty
Description
The Intellinet Network Solutions Gigabit PoE+ Media Converter offers simplified migration from copper-based Ethernet to Fibre Ethernet while providing power to a compatible device at up to 30 watts. The device creates the easy expansion of existing networks with minimum cost and complexity. The converter is completely transparent to the network so the network performs exactly the way it did before - only now it can support both copper and fibre mediums.Expand the Size of an Existing Network.
The converter Provides fibre connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Since it offers building-to-building connectivity without the cost and disruption associated with the installation of additional routers, network admins can quickly incorporate this converter into their current setup and keep the network running like it should.
Power-over-Ethernet-Plus Capable
The Intellinet Gigabit PoE+ Media Converter brings power to where there is none, obviating the need to hire an electrician and run electrical lines. And because the converter supports the IEEE 802.3at / 802.3af standard, up to 30 watts is available for any compatible device.
Cabling Flexibility
Network managers can install fibre cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wall-mount installation. Several converters can be simultaneously installed into a 19"; rack-mountable chassis.
Specifications
| Network | |
|---|---|
| Cable types supported | Cat5 |
| Converter input interface | 1000Base-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Duplex system | Full, Half |
| Maximum data transfer rate | 1000 Mbit/s |
| Fiber optic connector | SFP |
| Performance | |
| Maximum transfer distance | 120000 m |
| Features | |
| International Protection (IP) code | IP30 |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| DC-in jack | Yes |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Input voltage | 56 V |
| Input current | 0.5 A |
| Weight & dimensions | |
| Width | 70 mm |
| Depth | 95 mm |
| Weight | 200 g |
| Height | 25 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Packaging content | |
| AC adapter included | Yes |
| Manual | Yes |
| Technical details | |
| International Protection (IP) code | IP30 |
| Housing material | Metal |
| Maximum transfer distance | 120000 m |
| Internal | No |
| Harmonized System (HS) code | 85176990 |
| Indication | |
| LED indicators | Activity, Link, PoE, Power |
| Design | |
| International Protection (IP) code | IP30 |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power |
| Product colour | Black |
| Certification | FCC 15 |
| Internal | No |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | FCC 15 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
