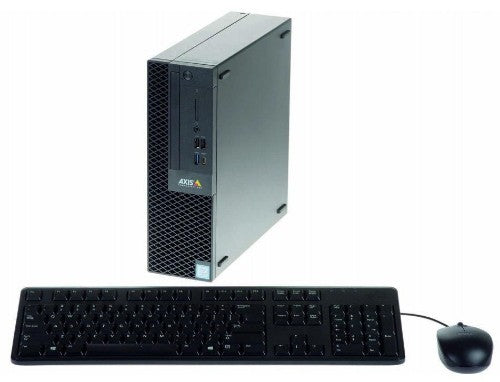

Axis S9002 Mk ll, 2.8 GHz, Intel® Core™ i5, i5-8400, 8 GB, 128 GB, Windows 10 Enterprise
Description
Axis S9002 Mk ll. Processor frequency: 2.8 GHz, Processor family: Intel® Core™ i5, Processor model: i5-8400. Internal memory: 8 GB. Total storage capacity: 128 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics 630, Discrete graphics card model: NVIDIA® Quadro® P600. Operating system installed: Windows 10 Enterprise. Power supply: 300 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 5 kg. Product colour: BlackSpecifications
| Processor | |
|---|---|
| Processor generation | 8th gen Intel® Core™ i5 |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Coffee Lake |
| Bus type | DMI3 |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
| Tjunction | 100 °C |
| Thermal Design Power (TDP) | 65 W |
| PCI Express configurations | 1x16, 1x8+2x4, 2x8 |
| Maximum number of PCI Express lanes | 16 |
| Memory bandwidth supported by processor (max) | 41.6 GB/s |
| ECC supported by processor | No |
| Processor cache type | Smart Cache |
| Conflict-Free processor | Yes |
| Processor cache | 9 MB |
| Processor frequency | 2.8 GHz |
| Processor model | i5-8400 |
| Number of processors installed | 1 |
| Processor manufacturer | Intel |
| Processor boost frequency | 4 GHz |
| System bus rate | 8 GT/s |
| Processor socket | LGA 1151 (Socket H4) |
| Processor threads | 6 |
| Processor cores | 6 |
| PCI Express slots version | 3.0 |
| Processor family | Intel® Core™ i5 |
| Memory | |
| Internal memory | 8 GB |
| Memory channels | Dual-channel |
| Storage | |
| Storage media | SSD |
| Total storage capacity | 128 GB |
| Graphics | |
| Discrete graphics card | Yes |
| Discrete graphics card memory | 2 GB |
| On-board graphics card dynamic frequency (max) | 1050 MHz |
| On-board graphics card base frequency | 350 MHz |
| Maximum on-board graphics card memory | 64 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card DirectX version | 12.0 |
| Number of execution units | 23 |
| On-board graphics card ID | 0x3E92 |
| Discrete graphics card model | NVIDIA® Quadro® P600 |
| Discrete graphics memory type | GDDR5 |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Number of discrete graphics cards | 1 |
| Network | |
| Ethernet LAN | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| Serial ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Mini DisplayPorts quantity | 4 |
| Line-out | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.2 |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Technical details | |
| Intel 64 | Yes |
| Product type | Mini PC |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Product colour | Black |
| Chassis type | mini PC |
| Design | |
| Product colour | Black |
| Chassis type | mini PC |
| Performance | |
| Embedded options available | No |
| Product type | Mini PC |
| Harmonized System (HS) code | 84715000 |
| Software | |
| Recovery operating system | Windows 10 Enterprise |
| Operating system installed | Windows 10 Enterprise |
| Processor special features | |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® Secure Key | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Thermal solution specification | PCG 2015C |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Scalability | 1S |
| Processor package size | 37.5 x 37.5 mm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 0.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Conflict-Free processor | Yes |
| Processor ARK ID | 126687 |
| Intel 64 | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Power | |
| Power supply input frequency | 50 - 60 Hz |
| Power supply input voltage | 100-240 V |
| Power supply | 300 W |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Certificates | |
| Certification | IEC/EN/UL 60950-1 FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 32 Class B, KC KN32 Class B, KN35, EN 55032, EN 55024, EN/IEC 61000-3-2, EN/IEC 61000-3-3, EN 50564, EN 62623, EAC, BSMI, NOM |
| Weight & dimensions | |
| Width | 93 mm |
| Depth | 290 mm |
| Height | 292 mm |
| Weight | 5 kg |
| Packaging content | |
| Mouse included | Yes |
| Display included | No |
| Keyboard included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84715000 |
| Other features | |
| Processor manufacturer | Intel |
| Harmonized System (HS) code | 84715000 |
