Description

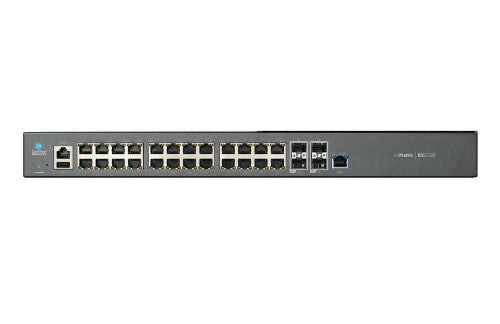

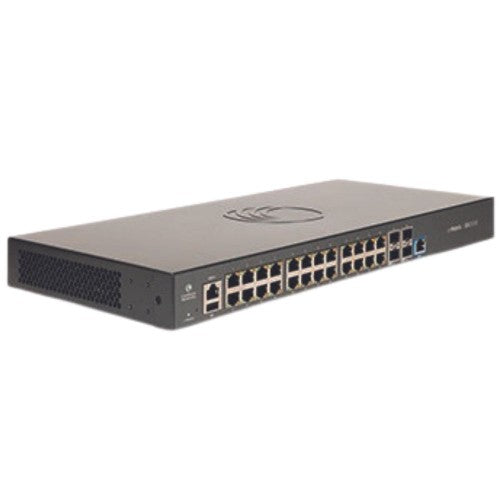

Cloud managed, 24 x Gigabit Ethernet ports, 4 x SFP+
cnMatrix™ EX2028 switch simplifies network deployment and operation. When deployed with cnPilot™ WLAN access points and the cnMaestro™ management system, network operators have an affordable, feature rich, high quality unified wired/ wireless enterprise grade network. Improve performance, security and end user satisfaction while reducing costs with cnMatrix EX2028.
Description
Improve network performance while reducing the time and cost of provisioning and managementcnMatrix™ EX2028 switch simplifies network deployment and operation. When deployed with cnPilot™ WLAN access points and the cnMaestro™ management system, network operators have an affordable, feature rich, high quality unified wired/ wireless enterprise grade network. Improve performance, security and end user satisfaction while reducing costs with cnMatrix EX2028.
Specifications
| Management features | |
|---|---|
| Traffic classification | Yes |
| Reset button | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2/L3 |
| Configuring Location Settings (CLI) | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| USB 2.0 ports quantity | 1 |
| Copper ethernet cabling technology | 10GBASE-T |
| Network | |
| Copper ethernet cabling technology | 10GBASE-T |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4000 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Virtual LAN features | Port-based VLAN, Private VLAN |
| IGMP snooping | Yes |
| IGMP proxy | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| Number of static routes | 64 |
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 120 Mpps |
| Number of VLANs | 4000 |
| Security | |
| BPDU filtering/protection | Yes |
| Authentication | Port-based authentication |
| Security algorithms | 802.1x RADIUS, SSH, SSH-2, SSL/TLS |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| Password protection | Yes |
| Authentication type | IEEE 802.1x |
| IGMP proxy | Yes |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMP v1/v2/v3, Telnet |
| Design | |
| Reset button | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Rack mounting | Yes |
| Performance | |
| Processor frequency | 800 MHz |
| Mean time between failures (MTBF) | 432283 h |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Built-in processor | Yes |
| Fanless | Yes |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 19.5 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Virtual LAN features | Port-based VLAN, Private VLAN |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 209 mm |
| Height | 44 mm |
| Weight | 2.77 kg |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Processor frequency | 800 MHz |
| Mean time between failures (MTBF) | 432283 h |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Indication | |
| LED indicators | Yes |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
