Description

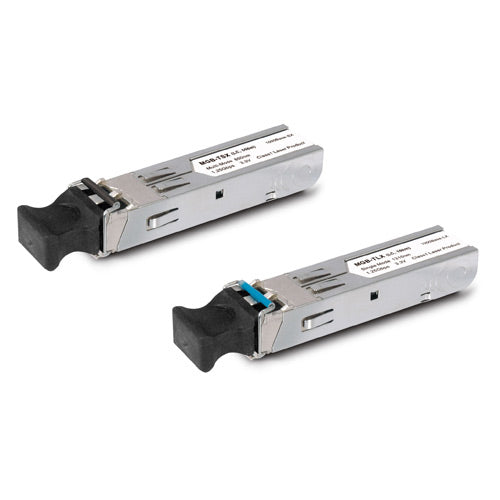

mini-GBIC, 1000BASE-LX, Single Mode, LC, 1550nm, max 80 km
Planet Technology USA SFP Optical Transceivers are designed for use with PLANET Industrial SFP Media Converters, PLANET Industrial Switches and third party equipment that supports Industrial SFP transceivers.
Key Features
- PHY Type: 1000BASE-LX
- Fiber Type: Single Mode
- Connector: LC
- Wavelength: 1550nm
- Maximum Distance: 80km
- Operating Temperature: -40 ~ 75°C
Description
Planet Technology USA’s Extended Temperature 1000Mbps Gigabit SFP Fiber Transceivers (-40 to 75 C) are the ideal Industrial Ethernet fiber solution that can reliably operate in electrically harsh and wide temperature range (-40℃ to 75℃) environments. These Small Form Factor Pluggable (SFP) transceiver modules operate with an integrated duplex data link over single mode optical fiber. Planet Technology USA’s Small Form Factor Pluggable (SFP) transceivers work with PLANET’s Gigabit SFP interface to provide a reliable, high-performing Gigabit Ethernet network. The device’s hot pluggable feature enables network administers to easily install SFP MSA compliant ports without interrupting the host equipment in operation.Planet Technology USA SFP Optical Transceivers are designed for use with PLANET Industrial SFP Media Converters, PLANET Industrial Switches and third party equipment that supports Industrial SFP transceivers.
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| TTL signal detect indicator | Yes |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Maximum transfer distance | 80000 m |
| Wavelength | 1550 nm |
| Fiber ports quantity | 2 |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | mini-GBIC |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| SFP transceiver standard | LX |
| Product colour | Nickel |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Features | |
| Product colour | Nickel |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Fiber ports quantity | 2 |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | mini-GBIC |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Maximum transfer distance | 80000 m |
| Wavelength | 1550 nm |
| Ports & interfaces | |
| Fiber ports quantity | 2 |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
