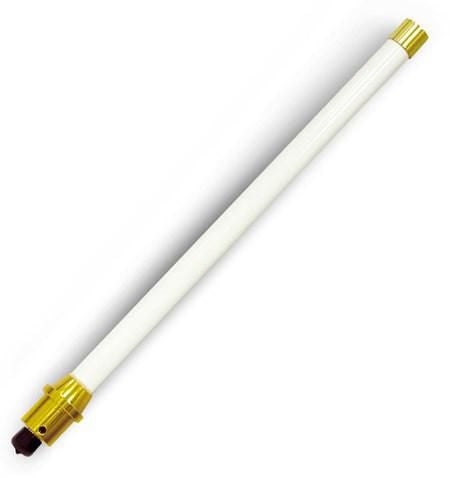

2.4GHz 8dBi Omni-directional Antenna
Key Features
- 360 degrees Horizontal Spread & 10 degrees Vertical Spread
- Connector: N-female
- Operating environment: outdoor
Description
To commit itself to the wireless long distance connectivity, PLANET WireFree provides a variety of antennas, cables and other accessories for 2.4GHz and 5GHz ISM band applications where more RF gain power is required to increase the convergence of the installations in the wireless state.
Specifications
| Performance |
|---|
| Antenna gain level (max) |
8 dBi |
| Frequency band |
2.4 - 2.485 GHz |
| Vertical beam width |
10° |
| Horizontal beam width |
360° |
| Features |
|---|
| Antenna type |
Omni-directional antenna |
| Product colour |
White |
| Antenna connector type |
N-type |
| Antenna gain level (max) |
8 dBi |
| Frequency band |
2.4 - 2.485 GHz |
| Vertical beam width |
10° |
| Horizontal beam width |
360° |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 70 °C |
| Technical details |
|---|
| Antenna gain level (max) |
8 dBi |
| Frequency band |
2.4 - 2.485 GHz |
| Antenna type |
Omni-directional antenna |
| Vertical beam width |
10° |
| Horizontal beam width |
360° |
| Antenna connector type |
N-type |
| Colour |
|---|
| Product colour |
White |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
