Description

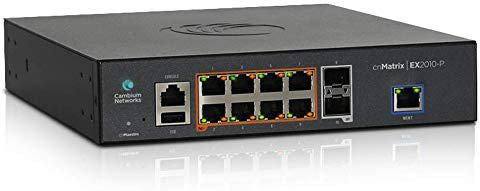

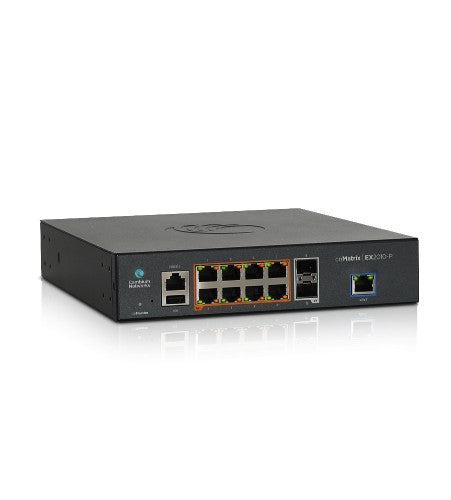

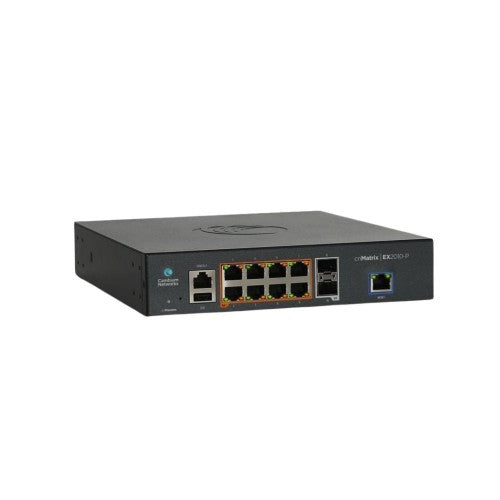

L2/L3, Managed, 8 x PoE Gigabit Ports, 2 x SFP, Fanless
Improve network performance while reducing the time and cost of provisioning and management
cnMatrix™ EX2010-P switches simplify network deployment and operation. When deployed with cnPilot™ WLAN access points and the cnMaestro™ management system, network operators have an affordable, feature rich, high quality unified wired/ wireless enterprise grade network with cnMatrix EX2010-P.
Description
cnMatrix Switch EX2010-PImprove network performance while reducing the time and cost of provisioning and management
cnMatrix™ EX2010-P switches simplify network deployment and operation. When deployed with cnPilot™ WLAN access points and the cnMaestro™ management system, network operators have an affordable, feature rich, high quality unified wired/ wireless enterprise grade network with cnMatrix EX2010-P.
Specifications
| Management features | |
|---|---|
| Traffic shaping | Yes |
| Traffic classification | Yes |
| Reset button | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2/L3 |
| Configuring Location Settings (CLI) | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Gigabit Ethernet (copper) ports quantity | 8 |
| USB 2.0 ports quantity | 1 |
| Console port | RS-232 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4000 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Broadcast storm control | Yes |
| 10G support | No |
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| Throughput | 120 Mpps |
| Number of static routes | 64 |
| MAC address table | 16000 entries |
| Switching capacity | 20 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Static route | Yes |
| Number of VLANs | 4000 |
| Security | |
| BPDU filtering/protection | Yes |
| Authentication | Port-based authentication |
| Security algorithms | HTTPS, SSH, SSH-1.5, SSH-2, SSL/TLS |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| Password protection | Yes |
| Authentication type | IEEE 802.1x, RADIUS |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMP v1/v2/v3, Telnet |
| Design | |
| Reset button | Yes |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| LED indicators | Yes |
| Rack mounting | Yes |
| Performance | |
| Processor frequency | 800 MHz |
| Mean time between failures (MTBF) | 338917 h |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Built-in processor | Yes |
| Fanless | Yes |
| Stackable | Yes |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 10.54 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 100 W |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 54 V |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 55 - 95% |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
| Weight & dimensions | |
| Width | 210 mm |
| Depth | 250 mm |
| Height | 44 mm |
| Weight | 1.99 kg |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Processor frequency | 800 MHz |
| Mean time between failures (MTBF) | 338917 h |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Indication | |
| LED indicators | Yes |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
