Description

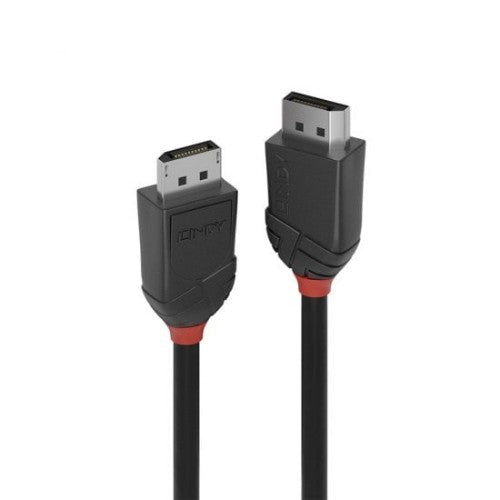

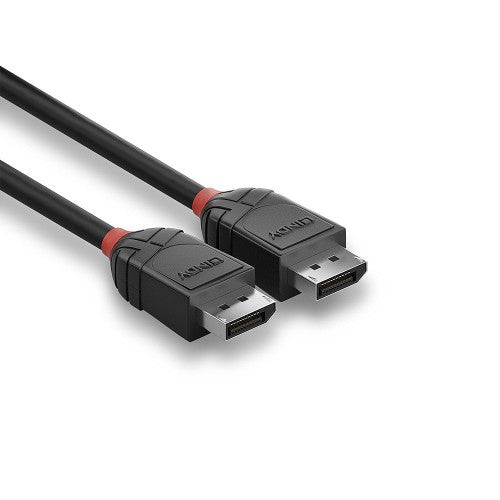

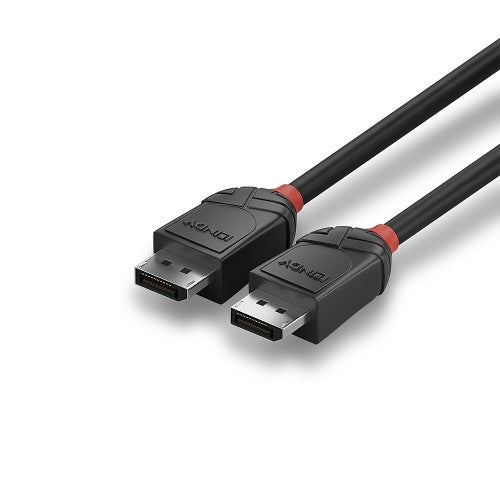

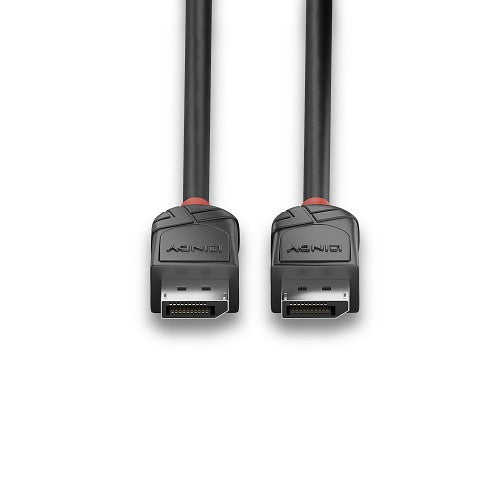

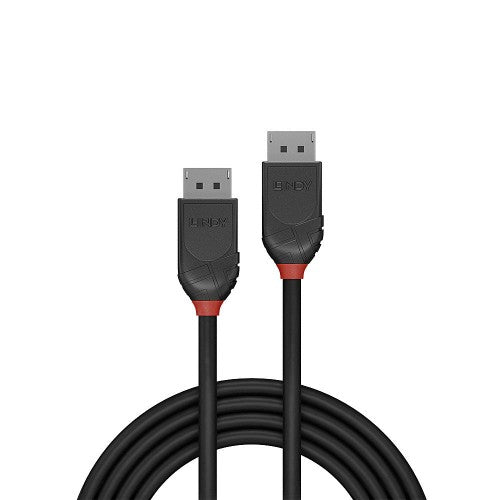

1.5m DisplayPort 1.2 Cable, Black Line
Black Line DisplayPort cables feature triple shielded construction with 30AWG copper conductors for performance and corrosion resistance. Nickel connectors and 24K gold plated contacts maintain signal integrity and reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 10bit are supported. Black Line DisplayPort cables are also capable of transmitting 32 channel audio and Dolby® True HD. Black Line DisplayPort cables are capable of delivering 4:4:4 colour spacing for the most accurate colour representation possible.
Black Line DisplayPort cables are available in lengths from 0.5m to 3m.
Key Features
- Entry level DisplayPort cable for home and small office applications
- Supports UHD resolutions up to 4096x2160@60Hz 4:4:4 10bit
- Robust PVC housing, nickel connectors, 24K gold plated contacts
- Triple shielded cable, corrosion resistant copper 30AWG conductors
- DisplayPort 1.2, 4K, 3D, 21.6Gbps; 10 year warranty
Description
From the Lines cable connectivity concept developed by Lindy, Black Line DisplayPort cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.Black Line DisplayPort cables feature triple shielded construction with 30AWG copper conductors for performance and corrosion resistance. Nickel connectors and 24K gold plated contacts maintain signal integrity and reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 10bit are supported. Black Line DisplayPort cables are also capable of transmitting 32 channel audio and Dolby® True HD. Black Line DisplayPort cables are capable of delivering 4:4:4 colour spacing for the most accurate colour representation possible.
Black Line DisplayPort cables are available in lengths from 0.5m to 3m.
Specifications
| Features | |
|---|---|
| Cable shielding | Copper |
| Product colour | Black |
| Cable length | 1.5 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Cable material | Copper |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 30 |
| DisplayPort version | 1.2 |
| Data transfer rate | 21.6 Gbit/s |
| 3D | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 4096 x 2160 |
| Certification | RoHS, REACH, UL |
| Maximum refresh rate | 60 Hz |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Colour sampling | 4:4:4 |
| Connector housing material | Acrylonitrile butadiene styrene (ABS) |
| Contact material | Phosphor bronze |
| Connector material | Nickel |
| Bend radius (min) | 4.8 cm |
| Cable type | Round cable |
| Nominal attenuation | 300kHz-825MHz - 5dB, 825MHz-2.475GHz - 5dB, 2.475GHz-4.125GHz - 12dB, 4.125GHz-5.1GHz - 20dB |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 80 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Packaging data | |
| Cable diameter | 6 mm |
| Package type | Polybag |
| Connector 1 dimensions (WxDxH) | 21 x 38.9 x 13.6 mm |
| Connector 2 dimensions (WxDxH) | 21 x 38.9 x 13.6 mm |
| Weight & dimensions | |
| Cable diameter | 6 mm |
| Packaging content | |
| Package type | Polybag |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
