Description

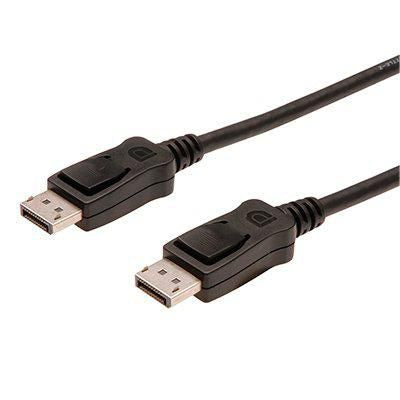

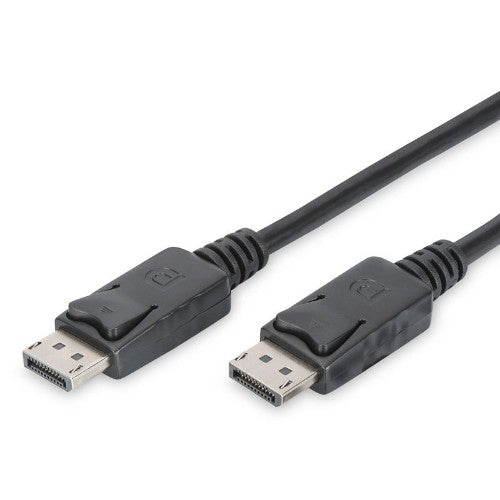

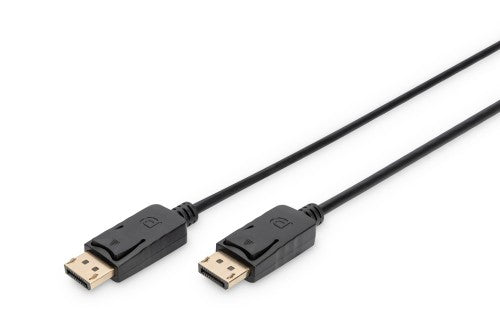

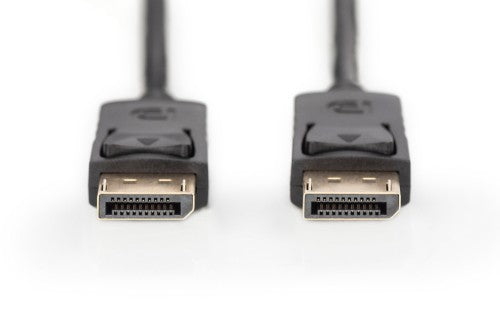

DisplayPort Connection Cable, Type DP M/M, 1.0m, w/interlock, UHD 4K, DP 1.2, bl
This high performance HD digital audio and video cable for example is used to connect a PC or notebook with DisplayPort interface to a monitor with DisplayPort interface.
Key Features
- Support up to 4K/2K with 60Hz
- Supported Video Resolution: 4K (3840x2160) @ 60 Hz, Full HD (1920x1080) @ 120 Hz
- Supported transmission modes: RBR, HBR, HBR2
- Maximal bandwidth: 21,6 Gbps
- HBR-Version/transfer mode: HBR2 (5,40 Gbit/s per lane)
- HDCP-Version: HDCP 1.3
Description
Ideal for CAD/CAM, GIS, 3D modeling, real time simulation, and more.This high performance HD digital audio and video cable for example is used to connect a PC or notebook with DisplayPort interface to a monitor with DisplayPort interface.
Specifications
| Features | |
|---|---|
| Product colour | Black |
| Cable length | 1 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Nickel |
| Cable material | Copper |
| AWG wire size | 28 |
| DisplayPort version | 1.2 |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 4096 x 2160 |
| Supported video modes | 1080p, 2160p |
| Plug and Play | Yes |
| Maximum refresh rate | 60 Hz |
| Country of origin | China |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Packaging data | |
| Package volume | 770 cm³ |
| Package weight | 80 g |
| Package width | 140 mm |
| Package depth | 220 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Package volume | 770 cm³ |
| Package weight | 80 g |
| Package width | 140 mm |
| Package depth | 220 mm |
| Logistics data | |
| Country of origin | China |
| UK Trade Tariff code | 85444290 |
