Description

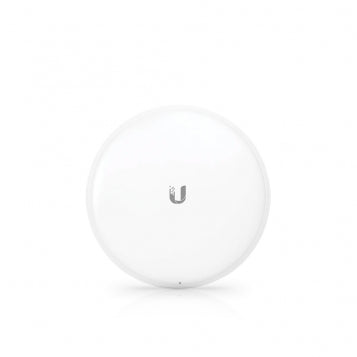

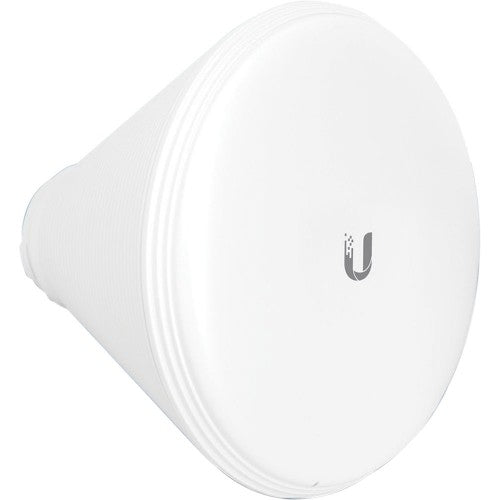

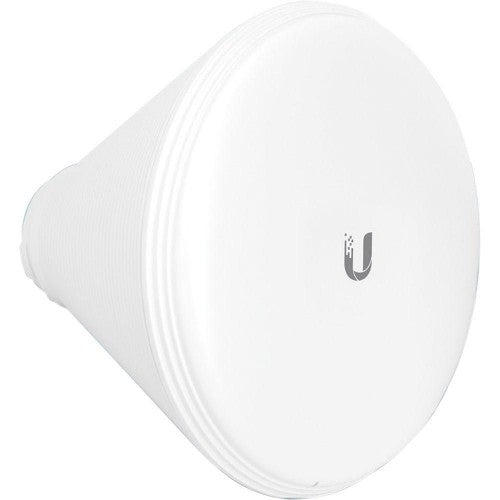

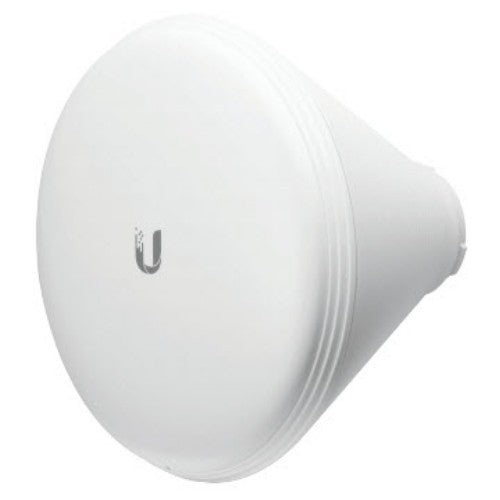

5.15 ‑ 5.85 GHz, 19 dBi, Dual-Linear, 30°/30°, 1100 g
With a range of different beam widths, the isolation antennas are interchangeable and feature high-performance beam patterns ideal for a range of deployment needs. Used with the airFiber® LTU and airMAX® radios, these antennas deliver superb co‐location performance without sacrificing gain.
Modular Design
The isolation antennas are interchangeable and feature high-performance beam patterns for a range of demanding deployment needs. Combined with the PrismStation 5AC or airFiber LTU radio, the system gets maximum gain out of the smallest footprint.
Asymmetrical horn antennas
60° and 90° versions have naturally attenuated side lobes and extremely low back radiation. They offer the best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.
Description
5 GHz Beamwidth Horn AntennaWith a range of different beam widths, the isolation antennas are interchangeable and feature high-performance beam patterns ideal for a range of deployment needs. Used with the airFiber® LTU and airMAX® radios, these antennas deliver superb co‐location performance without sacrificing gain.
Modular Design
The isolation antennas are interchangeable and feature high-performance beam patterns for a range of demanding deployment needs. Combined with the PrismStation 5AC or airFiber LTU radio, the system gets maximum gain out of the smallest footprint.
Asymmetrical horn antennas
60° and 90° versions have naturally attenuated side lobes and extremely low back radiation. They offer the best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.
Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 19 dBi |
| Frequency band | 5.15 - 5.85 GHz |
| Vertical beam width | 30° |
| Horizontal beam width | 30° |
| Features | |
| Survival wind speed | 200 km/h |
| Isolation | 17 dB |
| Wind load | 56 |
| Antenna gain level (max) | 19 dBi |
| Frequency band | 5.15 - 5.85 GHz |
| Antenna type | Horn antenna |
| Voltage Standing Wave Ratio (VSWR) | 1.7:1 |
| Vertical beam width | 30° |
| Polarization | Dual polarization |
| Horizontal beam width | 30° |
| Product colour | White |
| Technical details | |
| Antenna gain level (max) | 19 dBi |
| Frequency band | 5.15 - 5.85 GHz |
| Antenna type | Horn antenna |
| Voltage Standing Wave Ratio (VSWR) | 1.7:1 |
| Vertical beam width | 30° |
| Polarization | Dual polarization |
| Horizontal beam width | 30° |
| Harmonized System (HS) code | 85177100 |
| Colour | |
| Product colour | White |
| Weight & dimensions | |
| Weight | 1.1 kg |
| Depth | 184.2 mm |
| Diameter | 22.1 cm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85177100 |
