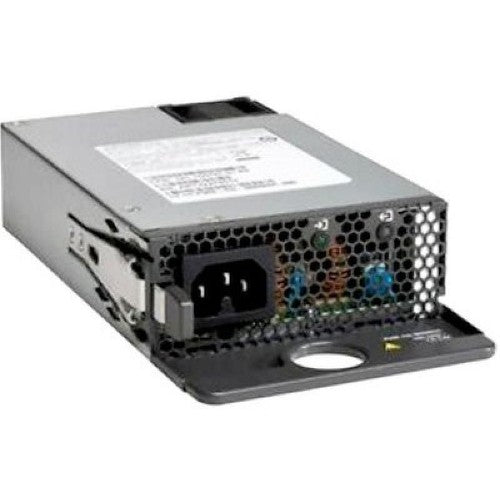

Cisco PWR-C5-125WAC= network switch component Power supply

125W AC Config 5 Power Supply

Description

BTU

Specifications

Features
Product type	Power supply
Internal	Yes
Safety	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC
LED indicators	Yes
Product colour	Black, Grey
Certification	FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55032 Class A CISPR 32 Class A AS/NZS 3548 Class A BSMI Class A VCCI Class A CISPR 35 EN 55035, EN300 386, EN 61000-3-2, EN 61000-3-3
Heat dissipation	426.5 BTU/h
Harmonized System (HS) code	85177900
Colour
Product colour	Black, Grey
Technical details
Internal	Yes
LED indicators	Yes
Height	40.1 mm
Compatibility	Cisco Catalyst C9200, C9200L
Heat dissipation	426.5 BTU/h
Sustainability compliance	Yes
Compliance certificates	CE
Performance
Compatibility	Cisco Catalyst C9200, C9200L
Power
AC input voltage	100 - 240 V
AC input frequency	50 / 60 Hz
Total power	125 W
Maximum current	1.6 A
DC output voltage	12 V
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-5 - 45 °C
Operating relative humidity (H-H)	5 - 90%
Operating altitude	0 - 3000 m
Weight & dimensions
Weight	680 g
Height	40.1 mm
Width	101.6 mm
Depth	193 mm
Certificates
Safety	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC
Certification	FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55032 Class A CISPR 32 Class A AS/NZS 3548 Class A BSMI Class A VCCI Class A CISPR 35 EN 55035, EN300 386, EN 61000-3-2, EN 61000-3-3
Logistics data
Harmonized System (HS) code	85177900
