Description
ATX Mid Tower, ATX/micro ATX/Mini ITX/EATX, 4 x 2.5”/3.5”, 3x 2.5", Front: 3x 120mm AURA RGB (1200RPM), Rear: 1x 140 PWM, 10.5 kg, Black

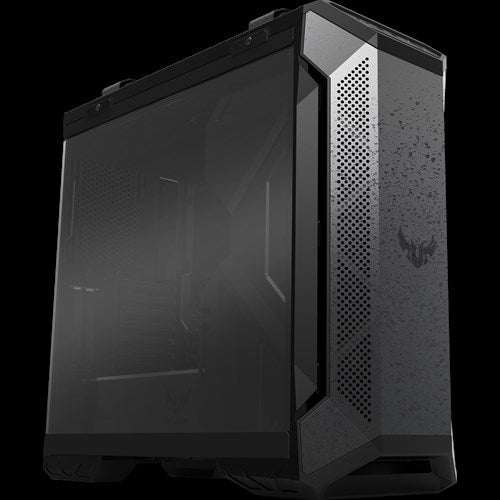

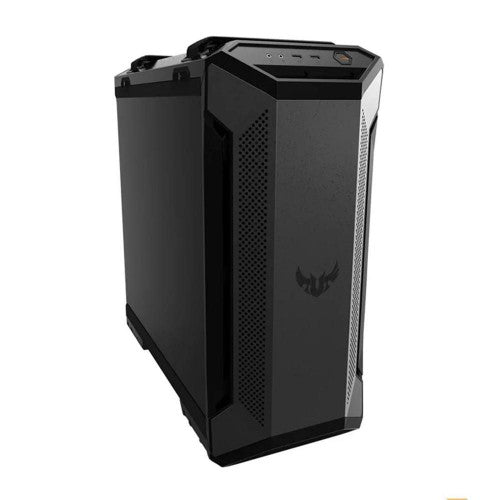

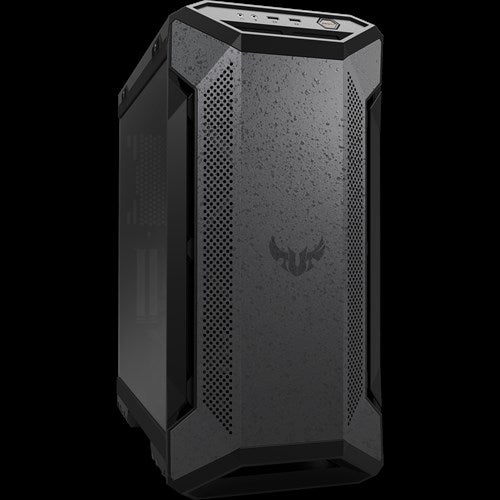

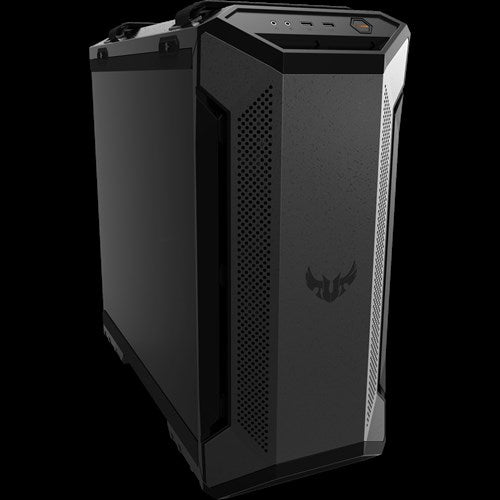

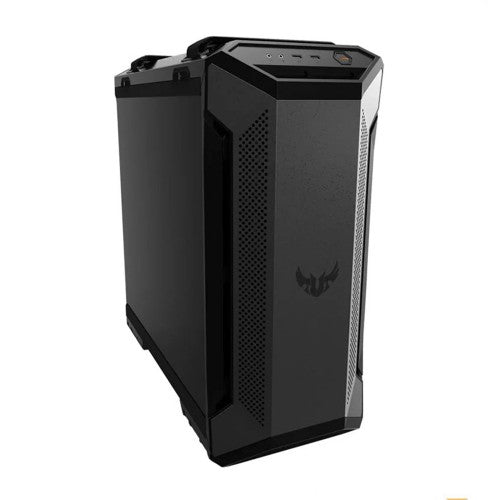

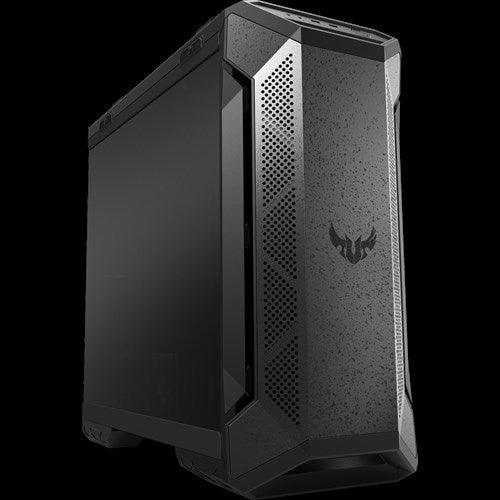

TUF Gaming GT501
Be Cool, Be Outstanding
Outstanding Gaming Style

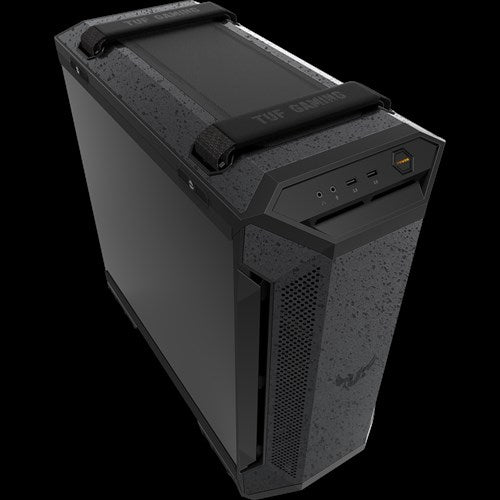

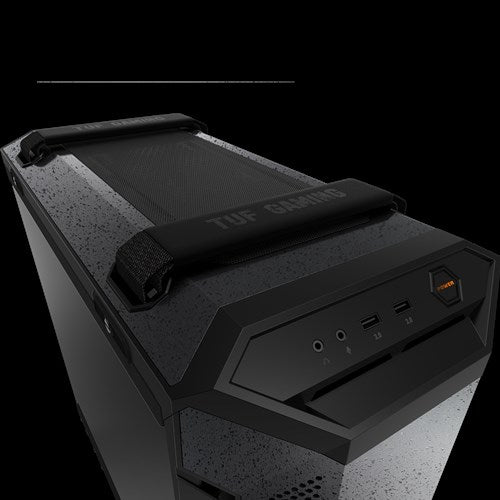

TUF Gaming GT501 is crafted from up to 1.5mm-thick galvanized steel for enhanced durability in understated industrial style, and has a special coating that resists scuffs and scratches. It's fitted with two ergonomic, woven-cotton handles, rigorously tested to support up to 30kg – so it's both easy and safe to transport your completed build.
Show Your TUF Personality
With a full-height, smoked-glass side panel, TUF Gaming GT501 lets you show off your build from top to bottom – so your components, customizations and Aura illuminations are all clearly visible. This panel is tempered for strength, and hinged at the bottom for opening ease.
OUTSHINE THE COMPETITION
Fitted RGB-enabled fans enable to work with the Aura-supported motherboards. With exclusive ASUS Aura Sync lighting technology*, TUF Gaming GT501 provides ambient lighting that can be synchronized with other Aura Sync-enabled components.
OPTIMIZED COOLING SOLUTION
TUF Gaming GT501's trio of 120mm Aura Sync RGB fans each contains 11 blades, and deliver high-static-pressure flow for targeted cooling. There's also a high-airflow 140mm PWM fan for wider heat removal. It's also easy to upgrade cooling when you need, with up to seven mounting points for the installation of additional fans.
Keep Your Build Like New
Removable dust filters effectively prevent airborne particulates from entering TUF Gaming GT501, keeping your system's internals looking as good as new for longer. The top and front filter are magnetic for a tight seal, and quick removal and cleaning, while the lower dust-trap is easily slid in and out to enable fast maintenance.
Key Features
- Mid-Tower with support for EATX Motherboards featuring a metal chassis and panels with custom TUF Gaming spatter pattern and 4mm-thick smoked, tempered-glass full view side panel
- Keep Your Cool with three 120mm Aura Sync RGB-illuminated fans, one 140mm rear PWM fan, and up to seven optional fan-mounting points
- Custom Liquid Cooling Ready with support for top or front mounted 360mm radiators, rear mounted 140mm radiator, and pre-drilled water pump/reservoir mounting holes
- Vertical GPU Expansion Slot plus 7 traditional expansion slots
- Ergonomic, Woven-cotton Carry Handles enable easy and safe transport up to 65lbs
Description
ASUS TUF Gaming GT501 Mid-Tower Computer Case for up to EATX Motherboards with USB 3.0 Front Panel, Smoked Tempered Glass, Steel Construction, and Four Case FansTUF Gaming GT501
Be Cool, Be Outstanding
Outstanding Gaming Style
TUF Gaming GT501 is crafted from up to 1.5mm-thick galvanized steel for enhanced durability in understated industrial style, and has a special coating that resists scuffs and scratches. It's fitted with two ergonomic, woven-cotton handles, rigorously tested to support up to 30kg – so it's both easy and safe to transport your completed build.
Show Your TUF Personality
With a full-height, smoked-glass side panel, TUF Gaming GT501 lets you show off your build from top to bottom – so your components, customizations and Aura illuminations are all clearly visible. This panel is tempered for strength, and hinged at the bottom for opening ease.
OUTSHINE THE COMPETITION
Fitted RGB-enabled fans enable to work with the Aura-supported motherboards. With exclusive ASUS Aura Sync lighting technology*, TUF Gaming GT501 provides ambient lighting that can be synchronized with other Aura Sync-enabled components.
OPTIMIZED COOLING SOLUTION
TUF Gaming GT501's trio of 120mm Aura Sync RGB fans each contains 11 blades, and deliver high-static-pressure flow for targeted cooling. There's also a high-airflow 140mm PWM fan for wider heat removal. It's also easy to upgrade cooling when you need, with up to seven mounting points for the installation of additional fans.
Keep Your Build Like New
Removable dust filters effectively prevent airborne particulates from entering TUF Gaming GT501, keeping your system's internals looking as good as new for longer. The top and front filter are magnetic for a tight seal, and quick removal and cleaning, while the lower dust-trap is easily slid in and out to enable fast maintenance.
Specifications
| Technical details | |
|---|---|
| Number of 3.5" bays | 4 |
| Number of 2.5" bays | 3 |
| Number of internal 3.5" bays | 4 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Supported HDD sizes | 2.5,3.5" |
| Suitable for | Gaming |
| Side window | Yes |
| Product colour | Black |
| Number of expansion slots | 9 |
| Maximum CPU cooler height | 18 cm |
| Maximum graphics card length | 42 cm |
| Maximum PSU length | 24 cm |
| Type | PC |
| Form factor | Midi Tower |
| Harmonized System (HS) code | 84733080 |
| Material | |
| Material | Plastic |
| Indication | |
| LED indicators | HDD, Power, Status |
| Illumination location | Front |
| Illumination colour | Multi |
| Illumination | Yes |
| Ergonomics | |
| LED indicators | HDD, Power, Status |
| On/off button | Yes |
| Design | |
| Anti-dust filter | Yes |
| Material | Plastic |
| Number of 3.5" bays | 4 |
| Number of 2.5" bays | 3 |
| Number of internal 3.5" bays | 4 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Suitable for | Gaming |
| Side window | Yes |
| LED indicators | HDD, Power, Status |
| Illumination location | Front |
| Illumination colour | Multi |
| Illumination | Yes |
| Product colour | Black |
| Number of expansion slots | 9 |
| Maximum CPU cooler height | 18 cm |
| Maximum graphics card length | 42 cm |
| Maximum PSU length | 24 cm |
| Type | PC |
| Form factor | Midi Tower |
| On/off button | Yes |
| Power supply | |
| Power supply included | No |
| Power supply location | Bottom |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio input | Yes |
| Audio output | Yes |
| Cooling | |
| Front radiator sizes supported | 120,140,240,280,360 mm |
| Rear radiator sizes supported | 120,140 mm |
| Top radiator sizes supported | 120,140,240,280,360 mm |
| Front fans installed | 3x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120 mm |
| Rear fans installed | 1x 140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Top fans diameters supported | 120,140 mm |
| Storage | |
| HDD/SSD combo cage | Yes |
| Supported HDD sizes | 2.5,3.5" |
| Packaging content | |
| Manual | Yes |
| Weight & dimensions | |
| Width | 215.4 mm |
| Depth | 533.4 mm |
| Height | 551.2 mm |
| Weight | 10.5 kg |
| Packaging data | |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Other features | |
| Manual | Yes |
| Harmonized System (HS) code | 84733080 |
