Description

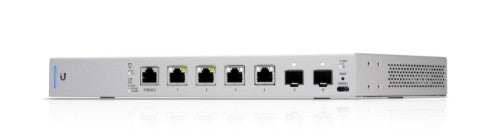

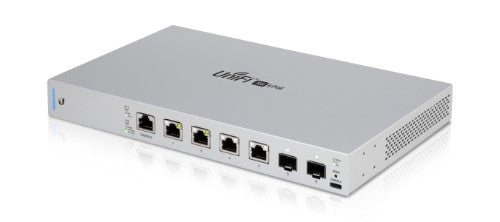

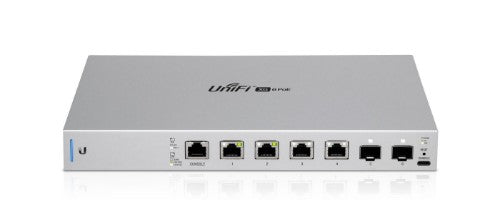

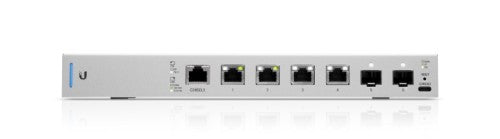

4x 2.5/5/10G RJ-45, 2x 1/10 SFP+, 802.3bt PoE++, 40 W, 120 Gbps, 165 x 268.1 x 31.8 mm, 1.3 kg
The UniFi Switch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Its auto-sensing PoE ports deliver up to 60W of power per port.
10 Gbps Deployment Example
Multiple switches connect via SFP+ to the UniFi Switch 16 XG. One UniFi Switch XG 6POE delivers data and 802.3bt PoE++ to multiple APs, the UniFi BaseStation XG, model UWB-XG, and the UniFi AP XG, model UAP-XG.
Multiple switches are daisy-chained through their SFP+ interfaces.
Convenient PoE++ Support
The UniFi Switch features auto-sensing IEEE 802.3af/at/bt PoE to power multiple devices on the network.
10G High-Capacity Links
The UniFi Switch offers maximum performance and low latency as an aggregation switch. For fiber connectivity, it features 2 SFP+ ports. For CAT 6/5e cable connectivity, the US-XG-6-POE offers 4 1/2.5/5/10Gbps RJ45 ports.
Seamless Integration
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
Description
Powerful Enterprise Switch ModelsThe UniFi Switch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Its auto-sensing PoE ports deliver up to 60W of power per port.
10 Gbps Deployment Example
Multiple switches connect via SFP+ to the UniFi Switch 16 XG. One UniFi Switch XG 6POE delivers data and 802.3bt PoE++ to multiple APs, the UniFi BaseStation XG, model UWB-XG, and the UniFi AP XG, model UAP-XG.
Multiple switches are daisy-chained through their SFP+ interfaces.
Convenient PoE++ Support
The UniFi Switch features auto-sensing IEEE 802.3af/at/bt PoE to power multiple devices on the network.
10G High-Capacity Links
The UniFi Switch offers maximum performance and low latency as an aggregation switch. For fiber connectivity, it features 2 SFP+ ports. For CAT 6/5e cable connectivity, the US-XG-6-POE offers 4 1/2.5/5/10Gbps RJ45 ports.
Seamless Integration
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
Specifications
| Technical details | |
|---|---|
| Form factor | 1U |
| Product colour | Grey |
| Rack mounting | Yes |
| Management features | |
| Switch type | Managed |
| Ports & interfaces | |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Network | |
| Networking standards | IEEE 802.3bt |
| Full duplex | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| 10G support | Yes |
| Data transmission | |
| Switching capacity | 120 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| Security algorithms | 802.1x RADIUS |
| Certificates | |
| Certification | CE, FCC, IC |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Yes |
| Certification | CE, FCC, IC |
| Rack mounting | Yes |
| Performance | |
| Harmonized System (HS) code | 85176990 |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power consumption (max) | 40 W |
| Power supply included | Yes |
| DC input voltage | 44 - 57 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 60 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 268.1 mm |
| Depth | 165 mm |
| Height | 31.8 mm |
| Weight | 1.3 kg |
| Packaging data | |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Packaging content | |
| Manual | Yes |
