Description
4x RJ-45 PoE, 1x RJ-45 Uplink, 52V DC, 1.25A, 65W, 750 g
The GEP-0523\'s four PoE-enabled ports make it the ideal solution for office users using PoE-enabled devices in the workplace. This can include a mix of PoE IP phones, PoE Wifi APs and PoE IP cams. It is the perfect solution for offices that want to upgrade their office equipment and LAN infrastructure to PoE capability or upgrade with Gigabit performance. The switch automatically detects the connected IEEE 802.3at/af standard device and provides these devices with power and data over a single cable.
In addition, the GEP-0523 enables users to provide a stable and reliable high-speed LAN environment with store-and-forward switching architecture, packet error filtering and blockage-free packet forwarding. The 802.3x flow control mechanisms operate in both full and half duplex modes. This device supports the N-Way Auto Negotiation protocol, which automatically detects network speed and duplex mode.
For instant fault detection, the GEP-0523 is equipped with a full range of LEDs to help monitor and troubleshoot the network.
Key Features
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- 10/100/1000Mbps wire speed transmission and reception
- Auto-detection and protection of non-standard PoE devices
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Total PoE power budget: 60W, up to 30W per port
Description

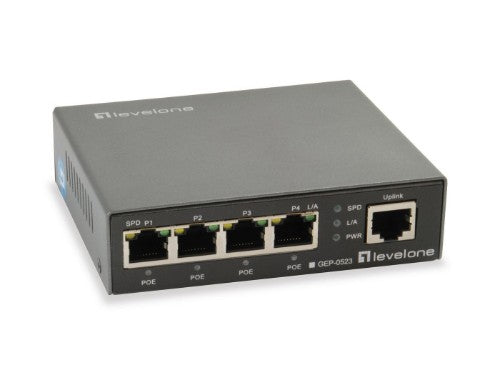

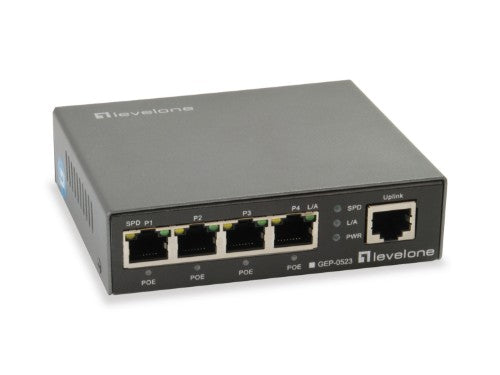

The LevelOne GEP-0523 is a Gigabit Ethernet PoE switch with a total of 5 ports, one of which is available as uplink port and 4 ports for Power over Ethernet. Per PoE port a power supply of up to 30W is possible. The total PoE power budget is 60W. It is an ideal solution when office and home users use a combination of PoE and non-PoE devices.The GEP-0523\'s four PoE-enabled ports make it the ideal solution for office users using PoE-enabled devices in the workplace. This can include a mix of PoE IP phones, PoE Wifi APs and PoE IP cams. It is the perfect solution for offices that want to upgrade their office equipment and LAN infrastructure to PoE capability or upgrade with Gigabit performance. The switch automatically detects the connected IEEE 802.3at/af standard device and provides these devices with power and data over a single cable.
In addition, the GEP-0523 enables users to provide a stable and reliable high-speed LAN environment with store-and-forward switching architecture, packet error filtering and blockage-free packet forwarding. The 802.3x flow control mechanisms operate in both full and half duplex modes. This device supports the N-Way Auto Negotiation protocol, which automatically detects network speed and duplex mode.
For instant fault detection, the GEP-0523 is equipped with a full range of LEDs to help monitor and troubleshoot the network.
Specifications
| Performance | |
|---|---|
| Packet buffer memory | 1 MB |
| Mean time between failures (MTBF) | 30000 h |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 30000 h |
| Rack mounting | No |
| Power over Ethernet (PoE) | |
| Power protection features | Over current, Short circuit |
| Total Power over Ethernet (PoE) budget | 60 W |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Management features | |
| Traffic classification | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Data transmission | |
| Jumbo frames | 9126 |
| Packet buffer memory | 1 MB |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Maximum data transfer rate | 1000 Gbit/s |
| Certificates | |
| Certification | CE,FCC |
| Memory | |
| Packet buffer memory | 1 MB |
| Design | |
| Product colour | Black |
| Certification | CE,FCC |
| Rack mounting | No |
| Power | |
| Power supply included | Yes |
| Power protection features | Over current, Short circuit |
| Power consumption (typical) | 5 W |
| Input current | 1.25 A |
| DC input voltage | 52 - 57 V |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 96 mm |
| Depth | 30 mm |
| Height | 111 mm |
| Weight | 350 g |
| Packaging data | |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Package width | 190 mm |
| Package depth | 55 mm |
| Package height | 230 mm |
| Package weight | 750 g |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Packaging content | |
| AC adapter included | Yes |
| Quick start guide | Yes |
