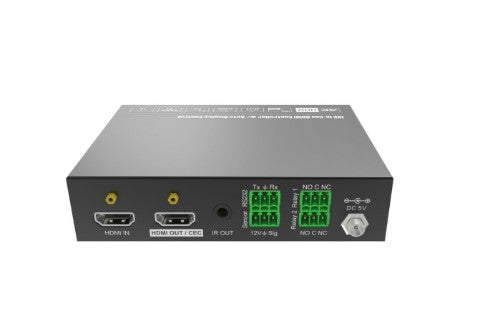

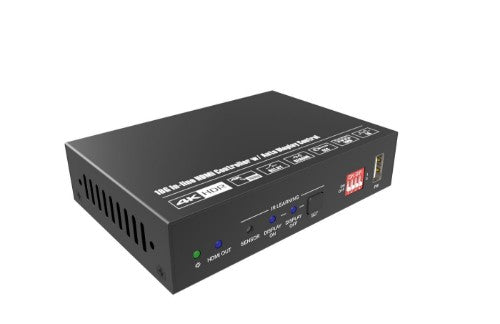

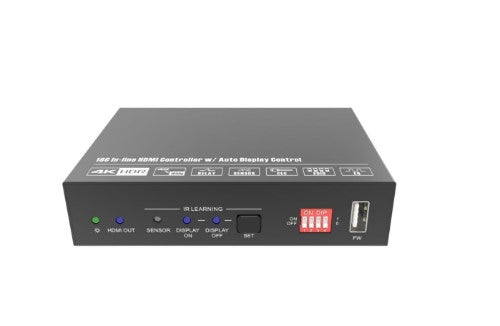

Vivolink VLHDMICTL1-MME control processor

4K in-line HDMI EDID emulator & controller. MME: Meetings Made Easy

Key Features

• 18G In-line HDMI EDID Emulator
• Designed for automatic system control in small meeting rooms and huddle spaces.
• Supports up to 4K x 2K/60Hz 4:4:4 HDR10 and Dolby Vision, HDCP 2.2 compliant.
• HDCP pass through or converted to HDCP 1.4 for better compatibility
• Supports 4K to1080p down-scaling.
• Comprehensive EDID management with 8 EDID Options (Including Auto & HDR) for various application.
• Automation display control via CEC, RS-232 and IR.
• Contact Closure input for connections with a variety of devices, such as sensor and switch.
• Relay control for device like projection screen
• Built-in signal equalizer, provides capability to use longer range HDMI cable.

Description

Automated meeting room control Control from room sensor or HDMI connection, CEC, RS-232 and IR, Relay control

Enter meeting room or connect cable to your computer and all starts up automatically for you.

When you leave room all switch off for you.

True automated simple operation supporting 4K resolution.

In detail:
Projector/monitor will turn on
Screen will go down
When you leave room
Projector/monitor will turn off
Screen will go up again

Specifications

Features
Product colour	Black
Housing material	Metal
LED indicators	Yes
Built-in display	No
Ports & interfaces
DC-in jack	Yes
Serial interface type	RS-232
USB port	Yes
USB ports quantity	1
USB port type	USB Type-A
IR connectivity	Yes
Power
AC input voltage	110 - 230 V
Power supply location	External
Weight & dimensions
Width	222 mm
Depth	153 mm
Height	80 mm
Weight	500 g
Packaging data
Package width	222 mm
Package depth	153 mm
Package height	80 mm
Package weight	618 g
