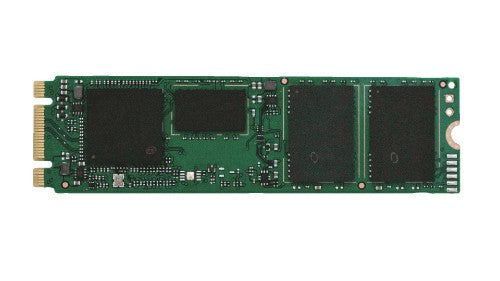

240 GB, M.2, Serial ATA III, 3D TLC
Description
Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
Hardware Encryption
Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
Specifications
| Hard drive |
|---|
| SSD capacity |
240 GB |
| Memory type |
TLC 3D NAND |
| Performance |
|---|
| Intel® Smart Response Technology |
No |
| Intel® Rapid Start Technology |
No |
| Intel High Endurance Technology (HET) |
No |
| Interface |
Serial ATA III |
| Component for |
Server/workstation |
| SSD ARK ID |
134922 |
| NVMe |
No |
| End-to-End Data Protection |
Yes |
| SSD capacity |
240 GB |
| Security algorithms |
256-bit AES |
| Read speed |
555 MB/s |
| Write speed |
275 MB/s |
| Memory type |
TLC 3D NAND |
| Uncorrectable Bit Error Rate (UBER) |
< 1 per 10^17 bits read |
| SSD temperature monitoring |
Yes |
| Random write (100% span) |
16000 IOPS |
| Random read (100% span) |
87000 IOPS |
| Mean time between failures (MTBF) |
2000000 h |
| Write latency |
36 µs |
| Read latency |
34 µs |
| Hardware encryption |
Yes |
| Enhanced Power Loss Data Protection technology |
Yes |
| Random read |
87000 IOPS |
| Random write |
16000 IOPS |
| Data transmission |
|---|
| Read speed |
555 MB/s |
| Write speed |
275 MB/s |
| Random write (100% span) |
16000 IOPS |
| Random read (100% span) |
87000 IOPS |
| Write latency |
36 µs |
| Read latency |
34 µs |
| Endurance rating |
0.85 PB |
| Security |
|---|
| Security algorithms |
256-bit AES |
| Endurance |
|---|
| Uncorrectable Bit Error Rate (UBER) |
< 1 per 10^17 bits read |
| Mean time between failures (MTBF) |
2000000 h |
| Design |
|---|
| Component for |
Server/workstation |
| SSD form factor |
M.2 |
| Product series |
Intel® SSD D3-S4510 Series |
| Product codename |
Youngsville Refresh |
| Features |
|---|
| Interface |
Serial ATA III |
| Component for |
Server/workstation |
| SSD ARK ID |
134922 |
| NVMe |
No |
| End-to-End Data Protection |
Yes |
| SSD capacity |
240 GB |
| Security algorithms |
256-bit AES |
| Read speed |
555 MB/s |
| Write speed |
275 MB/s |
| Memory type |
TLC 3D NAND |
| Uncorrectable Bit Error Rate (UBER) |
< 1 per 10^17 bits read |
| SSD temperature monitoring |
Yes |
| Random write (100% span) |
16000 IOPS |
| Random read (100% span) |
87000 IOPS |
| Mean time between failures (MTBF) |
2000000 h |
| Write latency |
36 µs |
| Read latency |
34 µs |
| Hardware encryption |
Yes |
| Enhanced Power Loss Data Protection technology |
Yes |
| SSD form factor |
M.2 |
| Random read |
87000 IOPS |
| Random write |
16000 IOPS |
| Harmonized System (HS) code |
84717070 |
| Export Control Classification Number (ECCN) |
5A992C |
| Commodity Classification Automated Tracking System (CCATS) |
G162706 |
| Temperature monitoring and logging |
Yes |
| Power |
|---|
| Power consumption (write) |
2.2 W |
| Power consumption (read) |
2.2 W |
| Power consumption (idle) |
0.8 W |
| Brand-specific features |
|---|
| Intel® Smart Response Technology |
No |
| Intel® Rapid Start Technology |
No |
| Intel High Endurance Technology (HET) |
No |
| Product series |
Intel® SSD D3-S4510 Series |
| Product codename |
Youngsville Refresh |
| Intel® Remote Secure Erase |
No |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Operating shock |
1000 G |
| Non-operating shock |
1000 G |
| Operating vibration |
2.17 G |
| Non-operating vibration |
3.13 G |
| Maximum operating temperature |
70 °C |
| Operating / non-operating shock |
1000 G/0.5 msec |
| Technical details |
|---|
| Interface |
Serial ATA III |
| Operating temperature (T-T) |
0 - 70 °C |
| Operating shock |
1000 G |
| Non-operating shock |
1000 G |
| Operating vibration |
2.17 G |
| Non-operating vibration |
3.13 G |
| SSD temperature monitoring |
Yes |
| Intel High Endurance Technology (HET) |
No |
| Hardware encryption |
Yes |
| Enhanced Power Loss Data Protection technology |
Yes |
| Power consumption (active) |
2.2 W |
| SSD form factor |
M.2 |
| Processor family |
Intel SSD D3 |
| Status |
Launched |
| SSD shock |
1000 G/0.5 msec |
| SSD power consumption (idle) |
0.8W |
| SSD endurance rating |
0.9 PBW |
| Sequential writing speed |
275 MB/s |
| Sequential reading |
555 MB/s |
| Launch date |
Q1'19 |
| Weight & dimensions |
|---|
| Width |
22 mm |
| Height |
80 mm |
| Other features |
|---|
| Processor family |
Intel SSD D3 |
| Uncorrectable Bit Error Rate (UBER) |
< 1 per 10^17 bits read |
| Endurance rating |
0.85 PB |
| Power consumption (active) |
2.2 W |
| Status |
Launched |
| SSD shock |
1000 G/0.5 msec |
| SSD power consumption (idle) |
0.8W |
| SSD endurance rating |
0.9 PBW |
| Sequential writing speed |
275 MB/s |
| Sequential reading |
555 MB/s |
| Launch date |
Q1'19 |
| Product series |
Intel® SSD D3-S4510 Series |
| Product codename |
Youngsville Refresh |
