Description

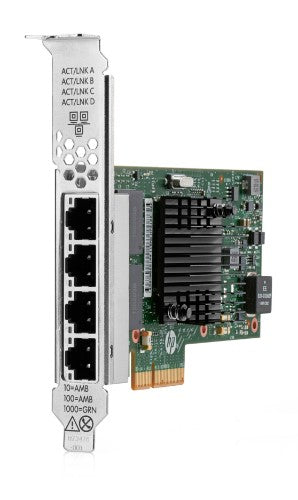

Ethernet 1Gb 4‑port BASE‑T I350‑T4V2 Adapter, Refurbished
Features
New Level of Performance and Power Management in a 1GbE Card for HPE ProLiant Gen9 DL/ML/XL Servers
- Fully integrated (bridgeless) Intel Ethernet I350 Controller, optimized for the new Integrated I/O and Data Direct I/O technologies.
- Quad port bandwidth, Gigabit PCI Express 2.1 NIC, with full height or low profile brackets.
- New I/O technologies reduce system power, increase I/O performance and reduce I/O latency.
Description
Need a low cost, low power 1GbE adapter for your HPE ProLiant Gen 9 server? The HPE Ethernet 1Gb 4-port 366T Adapter features a single chip solution, further reducing power requirements for 4 ports of 1 Gb Ethernet. The HPE 366T is PCI Express 2.1 x4 based on the latest Intel Ethernet Controller I350 designed for use with select HPE ProLiant Gen9 rack, tower and density optimized servers.Features
New Level of Performance and Power Management in a 1GbE Card for HPE ProLiant Gen9 DL/ML/XL Servers
- Fully integrated (bridgeless) Intel Ethernet I350 Controller, optimized for the new Integrated I/O and Data Direct I/O technologies.
- Quad port bandwidth, Gigabit PCI Express 2.1 NIC, with full height or low profile brackets.
- New I/O technologies reduce system power, increase I/O performance and reduce I/O latency.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 4 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Full duplex | Yes |
| Maximum data transfer rate | 2000 Mbit/s |
| Antenna | |
| Quality of Service (QoS) support | Yes |
| Technical details | |
| Compatible products | HPE ProLiant DL20 Gen9 Server HPE ProLiant DL60 Gen9 Server HPE ProLiant DL80 Gen9 Server HPE ProLiant DL120 Gen9 Server HPE ProLiant DL160 Gen9 Server HPE ProLiant DL180 Gen9 Server HPE ProLiant DL360 Gen9 Server HPE ProLiant DL360 Gen10 Server HPE ProLiant DL380 Gen9 Server HPE ProLiant DL380 Gen10 Server HPE ProLiant DL385 Gen10 Server HPE ProLiant DL560 Gen9 Server HPE ProLiant DL580 Gen9 Server HPE ProLiant ML30 Gen9 Server HPE ProLiant ML110 Gen9 Server HPE ProLiant ML150 Gen9 Server HPE ProLiant ML350 Gen9 Server HPE Apollo 2000 - XL1x0r Gen9 Server HPE Apollo 4500 – XL450 Gen9 Server HPE Apollo 6500 - XL270d Gen9 Server |
| Quality of Service (QoS) support | Yes |
| Compliance certificates | RoHS |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000BaseT(X) |
| Networking standards | IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Maximum operating distance | 100 m |
| Jumbo frames support | Yes |
| Full duplex | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 2000 Mbit/s |
| Design | |
| Compatible products | HPE ProLiant DL20 Gen9 Server HPE ProLiant DL60 Gen9 Server HPE ProLiant DL80 Gen9 Server HPE ProLiant DL120 Gen9 Server HPE ProLiant DL160 Gen9 Server HPE ProLiant DL180 Gen9 Server HPE ProLiant DL360 Gen9 Server HPE ProLiant DL360 Gen10 Server HPE ProLiant DL380 Gen9 Server HPE ProLiant DL380 Gen10 Server HPE ProLiant DL385 Gen10 Server HPE ProLiant DL560 Gen9 Server HPE ProLiant DL580 Gen9 Server HPE ProLiant ML30 Gen9 Server HPE ProLiant ML110 Gen9 Server HPE ProLiant ML150 Gen9 Server HPE ProLiant ML350 Gen9 Server HPE Apollo 2000 - XL1x0r Gen9 Server HPE Apollo 4500 – XL450 Gen9 Server HPE Apollo 6500 - XL270d Gen9 Server |
| Internal | Yes |
| Component for | Server |
| Power | |
| Power consumption (typical) | 5.5 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -65 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 63.5 mm |
| Depth | 209.6 mm |
| Height | 248.4 mm |
| Weight | 450 g |
| Performance | |
| Compatible products | HPE ProLiant DL20 Gen9 Server HPE ProLiant DL60 Gen9 Server HPE ProLiant DL80 Gen9 Server HPE ProLiant DL120 Gen9 Server HPE ProLiant DL160 Gen9 Server HPE ProLiant DL180 Gen9 Server HPE ProLiant DL360 Gen9 Server HPE ProLiant DL360 Gen10 Server HPE ProLiant DL380 Gen9 Server HPE ProLiant DL380 Gen10 Server HPE ProLiant DL385 Gen10 Server HPE ProLiant DL560 Gen9 Server HPE ProLiant DL580 Gen9 Server HPE ProLiant ML30 Gen9 Server HPE ProLiant ML110 Gen9 Server HPE ProLiant ML150 Gen9 Server HPE ProLiant ML350 Gen9 Server HPE Apollo 2000 - XL1x0r Gen9 Server HPE Apollo 4500 – XL450 Gen9 Server HPE Apollo 6500 - XL270d Gen9 Server |
