Description

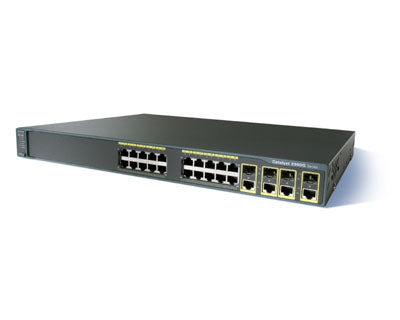

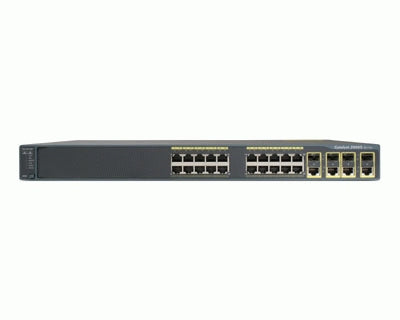

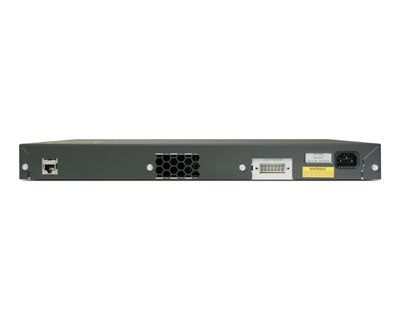

Catalyst C2960G - 20 Gigabit Ethernet 10/100/1000 Ports + 4 Dual-Purpose Gigabit Ethernet 10/100/1000 Uplink Ports, 1 RU
The Cisco Catalyst 2960 Series offers:
- Intelligent features at the network edge, such as sophisticated access control lists (ACLs) and enhanced security.
- Dual-purpose uplinks for Gigabit Ethernet uplink flexibility, allowing use of either a copper or a fiber uplink-each dual-purpose uplink port has one 10/100/1000 Ethernet port and one Small Form-Factor Pluggable (SFP)-based Gigabit Ethernet port, with one port active at a time.
- Network control and bandwidth optimization using advanced QoS, granular rate limiting, ACLs, and multicast services.
- Network security through a wide range of authentication methods, data encryption technologies, and network admission control based on users, ports, and MAC addresses.
- Easy network configuration, upgrades, and troubleshooting using Cisco Network Assistant software.
- Auto-configuration for specialized applications using Smartports.
Description
Cisco® Catalyst® 2960 Series Intelligent Ethernet Switches are a new family of fixed-configuration standalone devices that provide desktop Fast Ethernet and Gigabit Ethernet connectivity, enabling enhanced LAN services for entry-level enterprise, mid-market, and branch office networks. The Catalyst 2960 Series offers integrated security, including network admission control (NAC), advanced quality of service (QoS), and resiliency to deliver intelligent services for the network edge.The Cisco Catalyst 2960 Series offers:
- Intelligent features at the network edge, such as sophisticated access control lists (ACLs) and enhanced security.
- Dual-purpose uplinks for Gigabit Ethernet uplink flexibility, allowing use of either a copper or a fiber uplink-each dual-purpose uplink port has one 10/100/1000 Ethernet port and one Small Form-Factor Pluggable (SFP)-based Gigabit Ethernet port, with one port active at a time.
- Network control and bandwidth optimization using advanced QoS, granular rate limiting, ACLs, and multicast services.
- Network security through a wide range of authentication methods, data encryption technologies, and network admission control based on users, ports, and MAC addresses.
- Easy network configuration, upgrades, and troubleshooting using Cisco Network Assistant software.
- Auto-configuration for specialized applications using Smartports.
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Combo SFP ports quantity | 4 |
| Gigabit Ethernet (copper) ports quantity | 20 |
| Power connector | DC-in jack |
| Network | |
| Full duplex | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Data transmission | |
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Security | |
| SSH/SSL support | Yes |
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Protocols | |
| Management protocols | Telnet, RMON 2, RMON 1, SNMP 1, SNMP 3, SNMP 2c, TFTP |
| Supported network protocols | ACL, ARP, DiffServ, IGMP, IP, RADIUS, SSH, TCP, UDP, DHCP, TFTP |
| Design | |
| Product colour | Grey |
| Stackable | No |
| Performance | |
| Mean time between failures (MTBF) | 313828 h |
| Internal memory | 64 MB |
| Flash memory | 32 MB |
| Stackable | No |
| Power | |
| Power consumption (typical) | 75 W |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Weight & dimensions | |
| Weight | 4.5 kg |
| Technical details | |
| Product colour | Grey |
| Stackable | No |
| Mean time between failures (MTBF) | 313828 h |
| Memory | |
| Internal memory | 64 MB |
| Flash memory | 32 MB |
