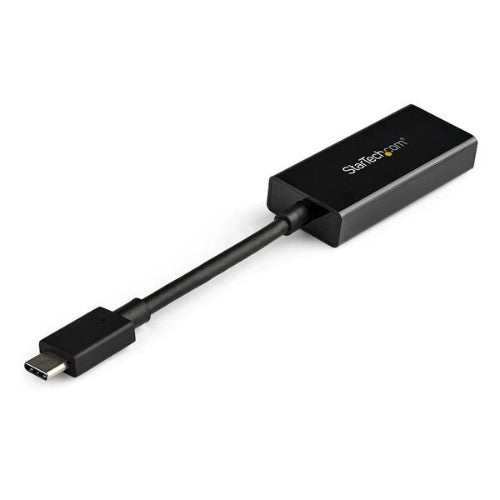

StarTech.com USB C to HDMI Adapter - 4K 60Hz Video, HDR10 - USB-C to HDMI 2.0b Adapter Dongle - USB Type-C DP Alt Mode to HDMI Monitor/Display/TV - USB C to HDMI Converter (CDP2HD4K60H)
Key Features
- PERFORMANCE: USB-C to HDMI 2.0b adapter w/ HDR10 supports UHD 4K 60Hz video (4096x2160 & 3840x2160), 1080p, DP 1.4 Alt Mode, HBR3, 18Gbps, 7.1ch Audio, HDCP 2.2; Color spacing supporting RGB 8/10bit & YCbCr 4:4:4 8/10 bit chroma subsampling
- CONTENT CREATION: HDR10 produces lifelike images with a higher contrast-ratio on HDMI 2.0b displays, making it ideal for creative professionals; use the USB-C to HDMI adapter to connect an HDMI monitor or TV, or add a secondary display to your workstation
- HOST COMPATIBILITY (DP Alt Mode Required): USB-C to HDMI converter adapter works with USB-C DP Alt mode capable hosts such as Dell XPS, Lenovo X1 Carbon, Surface Laptop 3, USB-C/Thunderbolt 3/4, Apple Intel/M1/M2 Chip products, HP EliteBook, Chromebook
- DISPLAY COMPATIBILITY: Display adapter is tested at 4K60Hz w/ HDR on HDMI monitors, TVs & projectors incl. brands Dell, Asus, Acer, BenQ, LG, Samsung, Sharp, Sony & Epson; Supports Dolby Vision & Atmos; Supports ultrawide displays up to 3440x1440 60Hz

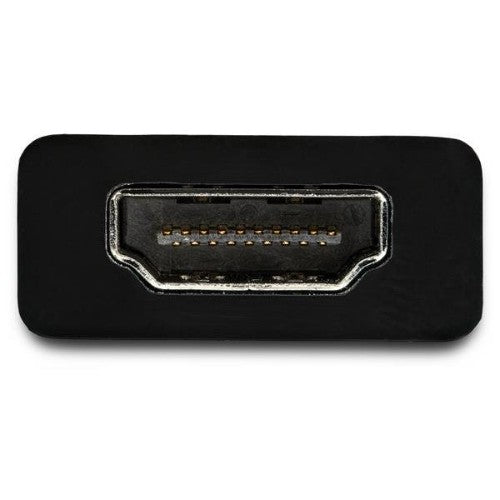

- EASY TO USE: USBC to HDMI dongle works w/ USB Type-C DP Alt Mode or Thunderbolt 3 devices and is OS independent; Slim HDMI connector w/ EMI shielding to protect from line noise/distortion; USB C male to HDMI female; Tested with HDMI cables up to 23ft (7m)
Description
USB Type-C™ Video Adapter | Ultra HD | Up to 18Gbps | Thunderbolt™ 3 CompatibleThe StarTech.com Advantage
Specifications
| Performance |
|---|
| Chipset |
MegaChips - MCDP2900 |
| USB connector type |
USB Type-C |
| USB connector gender |
Male |
| Data transfer rate (max) |
18 Gbit/s |
| DVI output |
No |
| HDMI output |
Yes |
| DisplayPort output |
No |
| Number of displays supported |
1 |
| HDMI version |
2.0b |
| DisplayPort version |
1.4 |
| Maximum resolution |
3840 x 2160 pixels |
| Refresh rate at maximum resolution |
60 Hz |
| Audio output channels |
7.1 channels |
| Certification |
CE, FCC, REACH |
| Design |
|---|
| Product colour |
Black |
| Housing material |
Plastic |
| Integrated USB cable |
Yes |
| USB cable length |
0.1 m |
| Weight & dimensions |
|---|
| Width |
150 mm |
| Depth |
25 mm |
| Height |
11 mm |
| Weight |
25 g |
| USB cable length |
0.1 m |
| Package width |
200 mm |
| Package depth |
220 mm |
| Package height |
11 mm |
| Technical details |
|---|
| Products per master (outer) case |
120 pc(s) |
| Master (outer) case width |
330 mm |
| Master (outer) case length |
500 mm |
| Master (outer) case height |
220 mm |
| Harmonized System (HS) code |
84733020 |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 35 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
25 - 60% |
| Packaging data |
|---|
| Package width |
200 mm |
| Package depth |
220 mm |
| Package height |
11 mm |
| Logistics data |
|---|
| Products per master (outer) case |
120 pc(s) |
| Master (outer) case width |
330 mm |
| Master (outer) case length |
500 mm |
| Master (outer) case height |
220 mm |
| Harmonized System (HS) code |
84733020 |
