Description

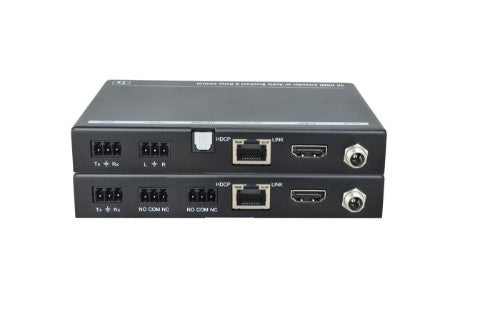

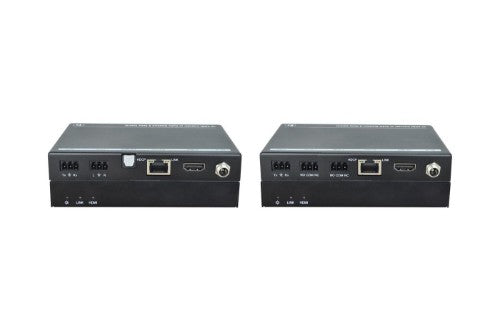

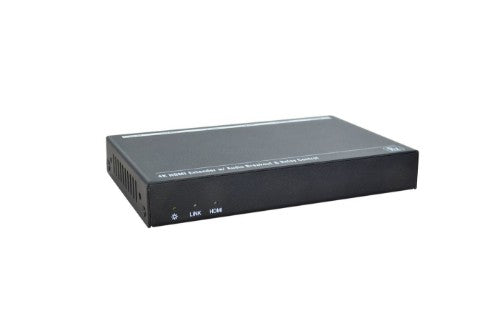

HDBaseT Extender kit w/relay
2 way PoC, IR, RS232, one PSU, HDMI 1.4 and HDCP2.2 compliant
Typical installation:
It can be installed anywhere need to extend AV/IR/RS232 control signals
E.g. Meeting room or Residential or digital signage etc.
Function:
HDMI extender

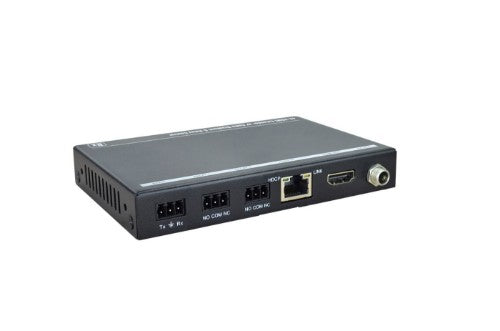

Relays output on receiver unit can control screen up/down via RS232 codes.

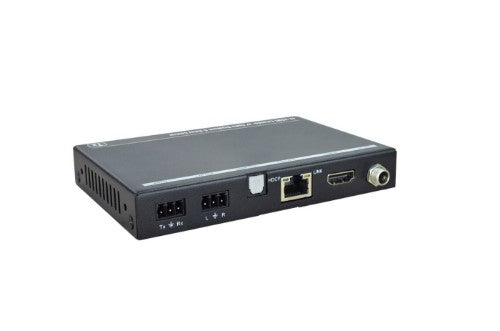

Audio de-embed on transmitter unit for connection to audio system
Point to point Tx to Rx for 70m@1080P,40m 4K
Key Features
- 4K HDMI Extender set
- HDMI 1.4(4K@60 4:2:0), HDCP 2.2
- HDBT extension up to 1080P@70m & 4K@40m
- Relay control for projection screen
- Audio de-embedder on Tx
- CEC pass-through
- Two way PoC
Description
HDBaseT extender kit including relay for projector screen Rx unit and audio de-embed on Tx2 way PoC, IR, RS232, one PSU, HDMI 1.4 and HDCP2.2 compliant
Typical installation:
It can be installed anywhere need to extend AV/IR/RS232 control signals
E.g. Meeting room or Residential or digital signage etc.
Function:
HDMI extender
Relays output on receiver unit can control screen up/down via RS232 codes.
Audio de-embed on transmitter unit for connection to audio system
Point to point Tx to Rx for 70m@1080P,40m 4K
Specifications
| Features | |
|---|---|
| HDCP | Yes |
| Wall mountable | Yes |
| IR pass-through | Yes |
| HDCP & EDID bypass | Yes |
| Consumer Electronics Control (CEC) support | Yes |
| HDBaseT certified | Yes |
| Remote control type | IR + RS232 |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 70 m |
| Supported video modes | 3840p |
| LED indicators | Yes |
| Bandwidth | 10.2 Gbit/s |
| Product colour | Black |
| RS-232 pass-through | Yes |
| HDCP pass-through | Yes |
| CEC pass-through | Yes |
| HDCP version | 2.2 |
| Technical details | |
| HDCP | Yes |
| Wall mountable | Yes |
| IR pass-through | Yes |
| HDCP & EDID bypass | Yes |
| Consumer Electronics Control (CEC) support | Yes |
| HDBaseT certified | Yes |
| Remote control type | IR + RS232 |
| Ethernet LAN | Yes |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 70 m |
| Video out | 1 |
| Video in | 1 |
| Supported video modes | 3840p |
| Bandwidth | 10.2 Gbit/s |
| Product colour | Black |
| Connectivity technology | Wired |
| Audio support | Yes |
| Quantity per pack | 2 pc(s) |
| Ports & interfaces | |
| 3.5 mm (1/8-inch) out | Yes |
| 3.5 mm (1/8-inch) in | Yes |
| Remote (IR) output | 1 |
| Remote (IR) input | 1 |
| RS-232 output ports | 1 |
| RS-232 input ports | 1 |
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| HDMI version | 1.4 |
| Video out | 1 |
| Video in | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Digital audio optical input type | TOSLINK |
| Digital audio optical in | 1 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power consumption (transmitter) (max) | 9 W |
| Power consumption (receiver) (max) | 9 W |
| Output current | 2 A |
| Operating voltage (transmitter) | 12 V |
| Operating voltage (receiver) | 12 V |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| External power adapter | Yes |
| Indication | |
| LED indicators | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating temperature (T-T) | -25 - 70 °C |
| Weight & dimensions | |
| Width | 182 mm |
| Package depth | 161 mm |
| Height | 127 mm |
| Depth | 161 mm |
| Package width | 182 mm |
| Package height | 127 mm |
| Weight | 600 g |
| Package weight | 984 g |
| Packaging data | |
| Package depth | 161 mm |
| Package width | 182 mm |
| Package height | 127 mm |
| Package weight | 984 g |
| Quantity per pack | 2 pc(s) |
| Packaging content | |
| IR receiver included | No |
| IR blaster included | No |
| Mounting brackets included | Yes |
| AC adapter included | Yes |
| Included power plug types | EU |
