Description

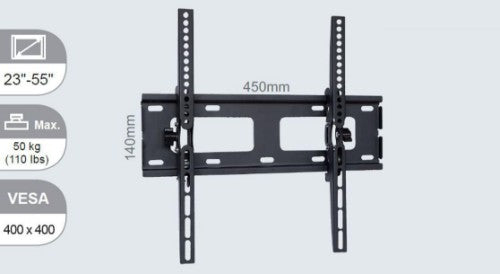

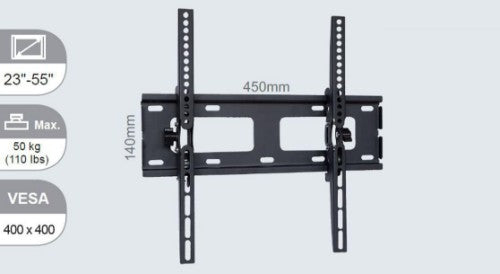

Pro Medium Wall Mount w. Tilt, Max 50 kg, Up to VESA 400x400
Typical installations:
Public area, such as office, hotel, shopping mall, trade fair, ect.
Key Features
- Slim mount 5cm from wall

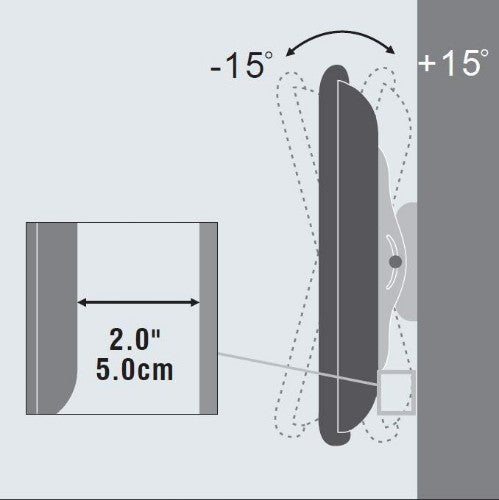

- Tilt function +/-15 degrees
- Self-balanced angle adjustment system
- Screen size 23” 55”
- Holes match up to VESA 400x400
- Max loading capacity 50kgs
Description
Max. load 50 kg. Typical screen size 23"-55" up to -15 degree tiltTypical installations:
Public area, such as office, hotel, shopping mall, trade fair, ect.
Specifications
| Mounting | |
|---|---|
| Mounting type | Wall |
| Minimum screen size | 58.4 cm (23") |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 400 x 400 mm |
| Maximum screen size | 139.7 cm (55") |
| Maximum weight capacity | 50 kg |
| Ergonomics | |
| Height adjustment | Yes |
| Tilt angle range | -15 - 15° |
| Distance to the wall (max) | 5 cm |
| Tilt adjustment | Yes |
| Technical details | |
| Distance to the wall (max) | 5 cm |
| Product colour | Black |
| Mounting interface | VESA |
| Mounting type | Wall |
| Adjustable | Yes |
| Compliance certificates | RoHS |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Packaging content | |
| Screws included | Yes |
| User guide | Yes |
| Mounting kit | Yes |
| Manual | Yes |
| Weight & dimensions | |
| Width | 470 mm |
| Depth | 58 mm |
| Height | 148 mm |
| Weight | 1.77 kg |
| Packaging data | |
| Package width | 479 mm |
| Package depth | 150 mm |
| Package height | 69 mm |
| Package weight | 1.87 kg |
| User guide | Yes |
| Mounting kit | Yes |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
| Other features | |
| VESA mounting | Yes |
| Mounting type | Wall |
| Adjustable | Yes |
| Mounting interface | VESA |
