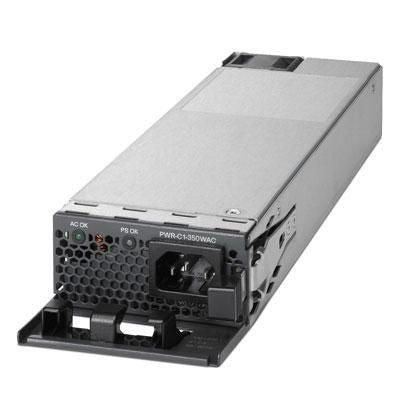

PWR-C1-350WAC-P=, 350 Watt, AC 100-240 V, -56 V, 6.25A, Black
Description
PWR-C1-350WAC-P
350 W AC Platinum certified power supply module
Power Supply Modules Overview
The switch operates with either one or two active power supply modules. A switch that is part of a StackPower stack operates with power that is supplied by other stack switches.
You can use two AC modules or one module and blank cover. All power supply modules have internal fans. All switches ship with a blank cover in the second power supply slot.
Specifications
| Features |
|---|
| Product type |
Power supply |
| Material |
Metal |
| Product colour |
Black |
| Heat dissipation |
1194 BTU/h |
| Harmonized System (HS) code |
85177900 |
| Colour |
|---|
| Product colour |
Black |
| Technical details |
|---|
| Material |
Metal |
| Height |
40.1 mm |
| Heat dissipation |
1194 BTU/h |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Total power |
350 W |
| Maximum current |
4 A |
| DC output voltage |
-56 V |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
-5 - 45 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Weight |
1.2 kg |
| Height |
40.1 mm |
| Width |
82.5 mm |
| Depth |
309.9 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85177900 |
