Description
Gigabit Ethernet port, 8x SFP+ ports, PoE-in, 800MHz CPU, 512MB RAM, 16MB Flash, License level 5, RouterOS / SwitchOS

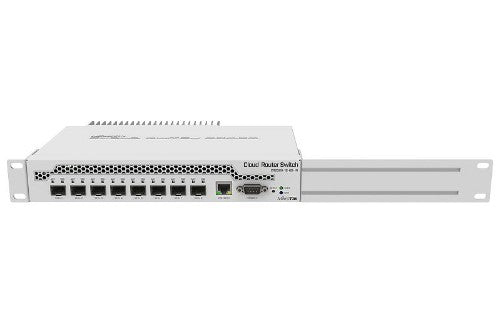

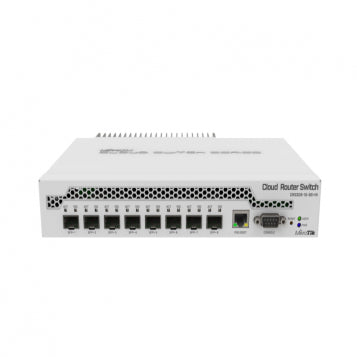

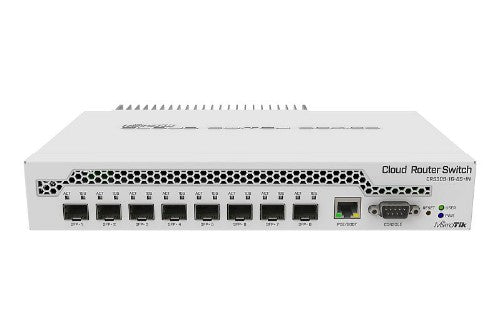

The CRS309-1G-8S+ is a very compact, yet powerful networking switch. It has eight SFP+ slots, supporting up to 10 Gbit module in each, which results in a total switching capacity of 162 Gbps and total non-blocking throughput of 81 Gbps.
The device also has dual-core 800 MHz CPU, 512 MB RAM, a management Ethernet port with PoE power input, RS232 serial port, a grounding terminal and is capable of dual boot (choose which operating system you prefer, RouterOS, or SwOS).
Description
Desktop switch with one Gigabit Ethernet port and eight SFP+ 10Gbps portsThe CRS309-1G-8S+ is a very compact, yet powerful networking switch. It has eight SFP+ slots, supporting up to 10 Gbit module in each, which results in a total switching capacity of 162 Gbps and total non-blocking throughput of 81 Gbps.
The device also has dual-core 800 MHz CPU, 512 MB RAM, a management Ethernet port with PoE power input, RS232 serial port, a grounding terminal and is capable of dual boot (choose which operating system you prefer, RouterOS, or SwOS).
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Ports & interfaces | |
| SFP+ module slots quantity | 8 |
| Basic switching RJ-45 Ethernet ports quantity | 1 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RS-232 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| 10G support | Yes |
| Data transmission | |
| Switching capacity | 162 Gbit/s |
| Design | |
| Product colour | White |
| Rack mounting | Yes |
| Performance | |
| Processor frequency | 800 MHz |
| Memory type | RAM |
| Internal memory | 512 MB |
| Flash memory | 16 MB |
| Built-in processor | Yes |
| Power | |
| Power consumption (max) | 23 W |
| Output current | 1.2 A |
| DC input voltage | 12 - 57 V |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) voltage range | 18 - 57 V |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
| Width | 141 mm |
| Depth | 115 mm |
| Height | 28 mm |
| Packaging data | |

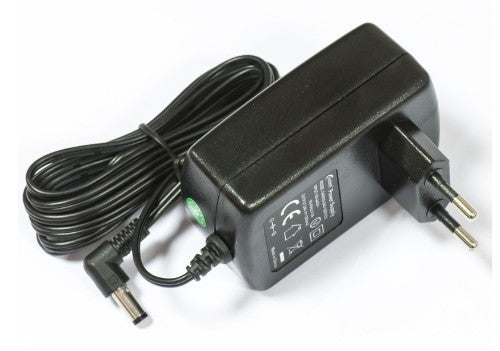

| AC adapter included | Yes |

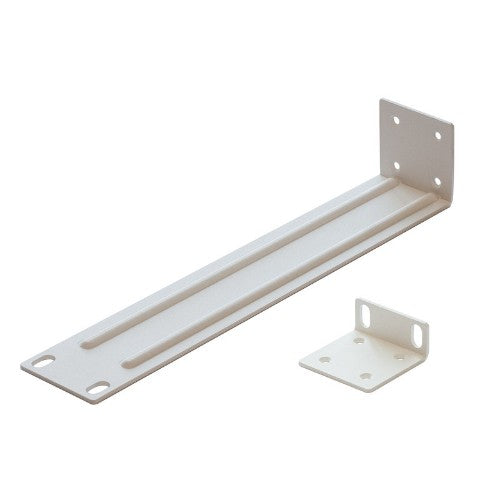

| Mounting brackets included | Yes |

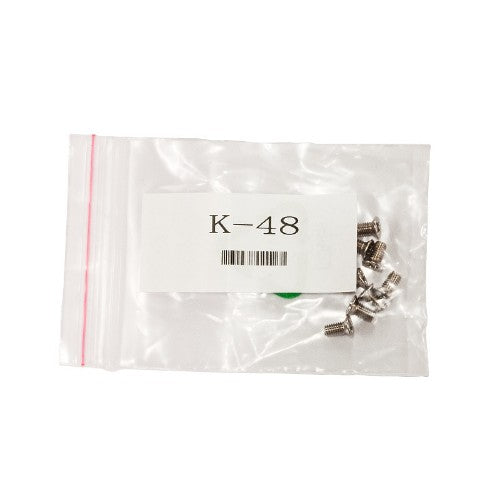

| Screws included | Yes |
| Technical details | |
| Product colour | White |
| Processor frequency | 800 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Memory type | RAM |
| Internal memory | 512 MB |
| Flash memory | 16 MB |
| Packaging content | |
| AC adapter included | Yes |
| Mounting brackets included | Yes |
| Screws included | Yes |
