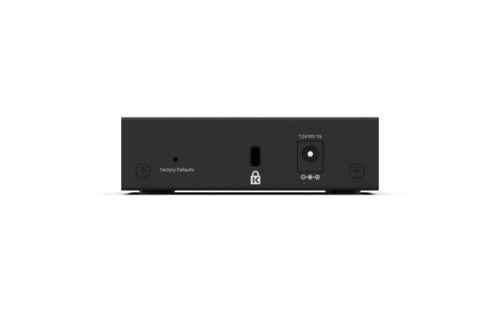

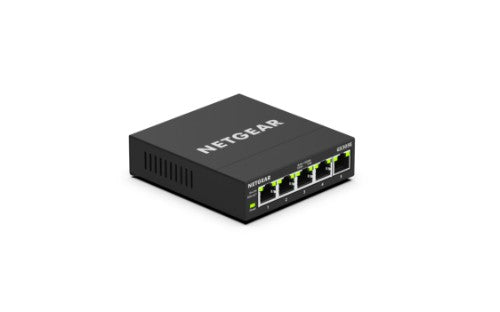

5-port Gigabit Ethernet Smart Managed Plus Switch (GS305E)
Key Features
- Enable network configuration and management at the price point of Unmanaged Switches
- Simple, yet useful network set-up on top of plug-and-play connectivity
- Flexible management via easy-to-use web browser-based management GUI or using the PC-based Utility application
- VLAN support for traffic segmentation
- Quality of Service (QoS) for traffic prioritization
- Auto “denial-of-service” (DoS) prevention
- Troubleshoot connection issues via cable test
- Loop detection and broadcast storm controls
- Rate limiting for better bandwidth allocation
- Port mirroring for network monitoring
- Jumbo frame support
Description
NETGEAR ® Smart Managed Plus Switches meet this growing need by providing fundamental network features such as VLANs, QoS, and IGMP Snooping that will help optimize the performance of business networks. Smart Managed Plus Switches are the perfect upgrade from the plug-and-play unmanaged switch, delivering essential networking features at a very affordable price.
Specifications
| Network |
|---|
| IGMP snooping |
Yes |
| Networking standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| VLAN support |
Yes |
| Rate limiting |
Yes |
| Port mirroring |
Yes |
| Number of VLANs |
64 |
| Link aggregation |
No |
| Flow control support |
Yes |
| Virtual LAN features |
Tagged VLAN, Port-based VLAN |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Number of VLANs |
64 |
| Virtual LAN features |
Tagged VLAN, Port-based VLAN |
| Data transmission |
|---|
| Number of VLANs |
64 |
| Jumbo frames |
9000 |
| MAC address table |
8000 entries |
| Switching capacity |
10 Gbit/s |
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Technical details |
|---|
| Product colour |
Black |
| Mean time between failures (MTBF) |
2531294 h |
| Rack mounting |
No |
| Management features |
|---|
| Switch type |
Managed |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Virtual Cable Test (VCT) |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Security |
|---|
| Loop protection |
Yes |
| IGMP snooping |
Yes |
| Password protection |
Yes |
| DoS attack prevention |
Yes |
| DHCP features |
DHCP client |
| Design |
|---|
| Product colour |
Black |
| LED indicators |
Activity, Link, Power, Speed, System |
| Rack mounting |
No |
| Performance |
|---|
| Buffer size |
128 KB |
| Mean time between failures (MTBF) |
2531294 h |
| Harmonized System (HS) code |
85176990 |
| Indication |
|---|
| LED indicators |
Activity, Link, Power, Speed, System |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 70 °C |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 3000 m |
| Weight & dimensions |
|---|
| Width |
94 mm |
| Depth |
100 mm |
| Height |
27 mm |
| Weight |
250 g |
| Packaging data |
|---|
| Package type |
Box |
| Package width |
153 mm |
| Package depth |
237 mm |
| Package height |
61 mm |
| Package weight |
600 g |
| Logistics data |
|---|
| Master (outer) case width |
344 mm |
| Master (outer) case length |
497 mm |
| Master (outer) case height |
280 mm |
| Master (outer) case gross weight |
10.2 kg |
| Products per master (outer) case |
15 pc(s) |
| Harmonized System (HS) code |
85176990 |
