LevelOne RJ45 to SC Gigabit Media Converter, Single-Mode Fiber, 20km

RJ45 - SC Gigabit Media Converter, Single-Mode Fiber, 20 km, 5 VDC, 2 A, Black

Key Features

• Transfers data from 10/100/1000Base-T copper to fiber interfaces
• 9K jumbo frames to increase data transfer rates
• Built-in LFP (Link Fault Pass-through) (LLCF/LLR) Technology
• IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
• Dip switches for customized configuration
• Supports low-time lag transmission
• Supports the transmission of extra-long packets up to 1.6KB
• 10°C to 55°C operating temperature range

Description

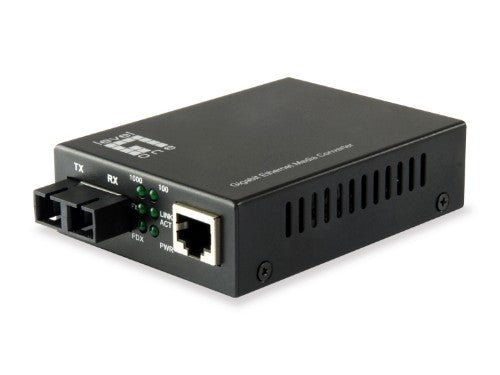

The GVT-2002 SMF SC media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a 10/100/1000Base-T RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T, 100Base-TX and 1000Base-T auto-sensing. Used in single-mode with fibre-optic cabling, this can extend a network range up to 20km.

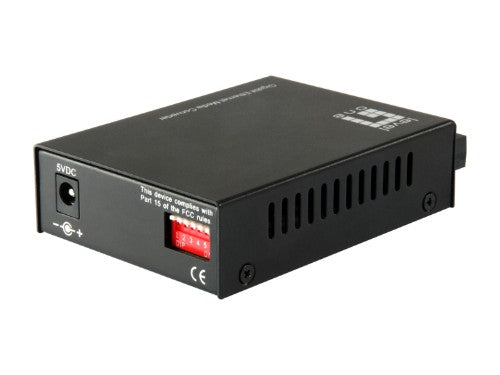

The device features built-in Dip switches for easy converter configuration, which function on the Smart LFP (Link Fault Pass-through), allowing the converter to monitor both the fiber and copper ports for signal loss, as well as cut through and smart pass through mode.

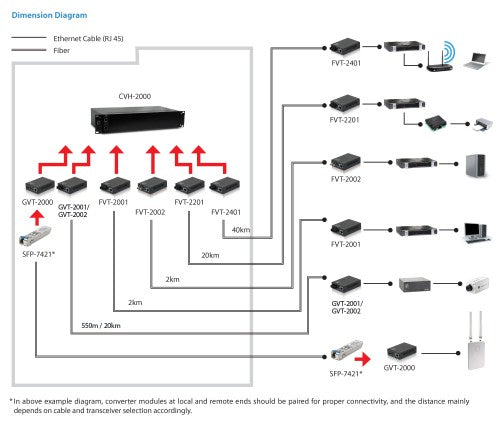

The GVT-2002 is able to operate in temperatures from -10° up to 55° Celsius. The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19” converter rack, which can accommodate up to 14 units for use in a central wiring closet.

Specifications

Network
Fiber optic connector	SC
Jumbo frames support	Yes
Store-and-forward	Yes
Flow control support	Yes
Auto-negotiation	Yes
Jumbo frames	9000
Link Loss Carry Forward (LLCF) supported	Yes
Link Loss Return (LLR) supported	Yes
Cable types supported	Cat5, Cat5e
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Fiber ethernet cabling technology	1000BASE‑LX, 1000BASE‑SX
Converter input interface	10Base-T, 100Base-TX, 1000Base-T
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Duplex system	Full
Converter output interface	1000Base-LX, 1000Base-SX
Auto MDI/MDI-X	Yes
Maximum data transfer rate	1000 Mbit/s
Technical details
Wavelength	1310 nm
Maximum transfer distance	20000 m
Fiber mode structure	Single-mode
Internal	No
Harmonized System (HS) code	85176990
Performance
Jumbo frames support	Yes
Store-and-forward	Yes
Flow control support	Yes
Auto-negotiation	Yes
Wavelength	1310 nm
Maximum transfer distance	20000 m
Fiber mode structure	Single-mode
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SC
DC-in jack	Yes
Indication
LED indicators	Yes
Design
Country of origin	China
LED indicators	Yes
Product colour	Black
Certification	CE, FCC
Internal	No
Power
Input voltage	5 V
Input current	2 A
Packaging content
Package type	Box
Quick installation guide	Yes
AC adapter included	Yes
Colour
Product colour	Black
Weight & dimensions
Width	94 mm
Depth	26 mm
Weight	200 g
Height	71 mm
Package depth	55 mm
Package width	120 mm
Package height	235 mm
Package weight	360 g
Operational conditions
Operating temperature (T-T)	-10 - 55 °C
Storage temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 90%
Packaging data
Package type	Box
Package depth	55 mm
Package width	120 mm
Package height	235 mm
Package weight	360 g
Certificates
Certification	CE, FCC
Logistics data
Master (outer) case width	360 mm
Master (outer) case length	390 mm
Master (outer) case height	480 mm
Master (outer) case gross weight	13 kg
Products per master (outer) case	36 pc(s)
Harmonized System (HS) code	85176990
