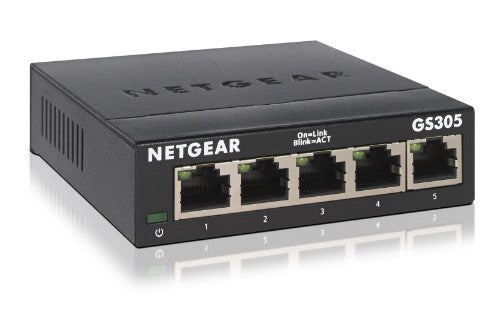

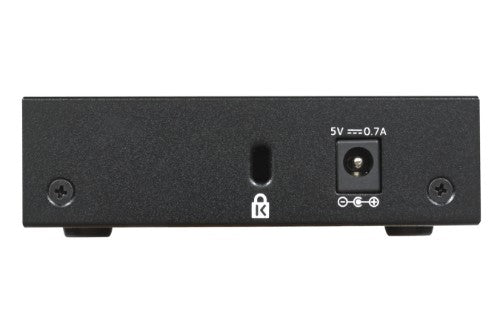

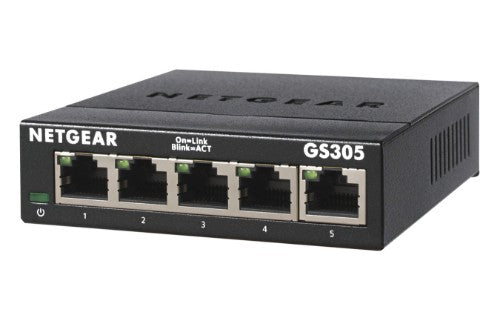

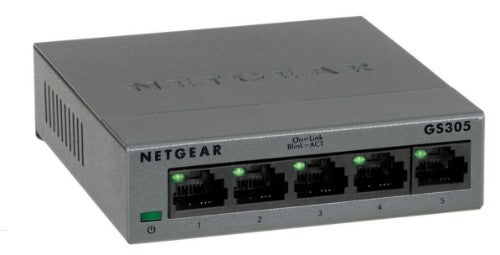

GS305v3, 5x RJ-45, 10/100/1000Mbps, 2K, 128 KB, 10 Gbps, metal
Key Features
- Auto-MDI/MDIX eliminates the need for crossover cables
- LED indicators for ease of use
- Energy-efficient technology for power savings
- Fanless design for silent operation
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Non-blocking switching architecture for maximum throughput at wire speed
- 802.1p QoS for traffic/frame prioritization
- Plug-and-play; no setup required
- Durable and rugged metal case
- Ideal for small office and home networks
- Standards-based technology ensures interoperability with any standards-based devices in the existing network
Description
NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. With these unmanaged plug-andplay switches, you can expand your network connections to multiple devices instantly. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.
Specifications
| Ports & interfaces |
|---|
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity |
5 |
| Power connector |
DC-in jack |
| Performance |
|---|
| Packet buffer memory |
128 MB |
| Mean time between failures (MTBF) |
3831422 h |
| Harmonized System (HS) code |
85176990 |
| Power |
|---|
| Power connector |
DC-in jack |
| Power consumption (max) |
2.15 W |
| Technical details |
|---|
| Product colour |
Black |
| Mean time between failures (MTBF) |
3831422 h |
| Housing material |
Metal |
| Rack mounting |
No |
| Management features |
|---|
| Switch type |
Unmanaged |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2 |
| Network |
|---|
| Cable length detection |
Yes |
| Auto-sensing |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| 10G support |
No |
| Data transmission |
|---|
| Jumbo frames |
9216 |
| Latency (1 Gbps) |
2.6 µs |
| Packet buffer memory |
128 MB |
| MAC address table |
2000 entries |
| Switching capacity |
10 Gbit/s |
| Jumbo frames support |
Yes |
| Forwarding rate |
1.448 Mpps |
| Certificates |
|---|
| Certification |
CE Mark
FCC Part 15 Class B
IC Class B
RCM
VCCI |
| Memory |
|---|
| Packet buffer memory |
128 MB |
| Design |
|---|
| Wall mountable |
Yes |
| Product colour |
Black |
| LED indicators |
Activity, Link, Power |
| Housing material |
Metal |
| Certification |
CE Mark
FCC Part 15 Class B
IC Class B
RCM
VCCI |
| Rack mounting |
No |
| Indication |
|---|
| LED indicators |
Activity, Link, Power |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 70 °C |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Operating altitude |
0 - 3000 m |
| Heat dissipation |
7.35 BTU/h |
| Weight & dimensions |
|---|
| Width |
101 mm |
| Depth |
94 mm |
| Height |
29 mm |
| Weight |
250 g |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
