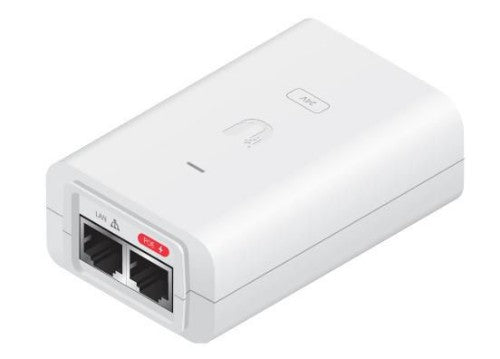

Ubiquiti POE-24-30W-G-WH PoE adapter Gigabit Ethernet 24 V

100-240AC, 50/60Hz, 30W, 80+%, 65 kHz, Pins 4, 5 (+) and Pins 7, 8 (-)

Description

Device Protection
PoE Adapters are highly reliable, and when used with Ubiquiti TOUGHCable™, they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.

Convenient Wall-Mounting
The 24V, 0.5A models, POE-24-12W and POE-24-12W-G, are wall-mountable using the optional wall-mount brackets.

Seamless airGateway™ Compatibility
The 15V, 0.8A and 24V, 0.5A models, POE-15-12W, POE-24-12W and POE-24-12W-G, work with the airGateway™ to bridge airMAX® connections to Wi-Fi at customer locations.

Specifications

Network
Power over Ethernet (PoE)	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Power over Ethernet (PoE) voltage	24 V
Features
Product colour	White
LED indicators	No
Certification	CE, FCC, IC, UL
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
Power
Output power	30 W
Power over Ethernet (PoE) voltage	24 V
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Input current	0.4/0.6 A
Suitable for use in country/location	Europe
Certificates
Certification	CE, FCC, IC, UL
Operational conditions
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	35 - 95%
Weight & dimensions
Weight	156 g
Width	94 mm
Depth	60 mm
Height	33 mm
Packaging content
Power cord included	Yes
Number of products included	1 pc(s)
Technical details
Number of products included	1 pc(s)
Power over Ethernet (PoE)	Yes
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Input current	0.4/0.6 A
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Harmonized System (HS) code	85044095
Indication
LED indicators	No
Logistics data
Harmonized System (HS) code	85044095
