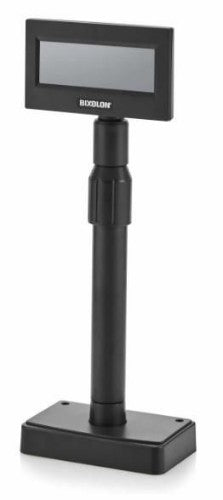

Bixolon BCD-2000 120 digits RS-232 Black

BCD-2000, STN LCD (Mono), Serial, Dark-Gray

Description

Improved Performance
- Flexible character alignment on display (Horizontal, vertical, font space and line space)
- Adjust alignment (Center, left and right)
- Maximum 120 characters display
- Two character font available (8 x 16, 9 x 17)
- 250% enhanced reliability as compared BCD-1000/1100
- Simple download and display image by utility

Highly Flexible Design
- Adjustable display height
- Optional wall mount
- 13° five option angle adjustor and 360° screen rotation
- Easy connection to the host via USB cable pass-through design

Hardware Compatibility
- Easy plug and play USB set up
- Compatible with all major operating systems including Android™, iOS™ and Windows®

Specifications

Display
Illumination colour	Blue, White
Display digits	120 digits
Digit pitch	0.03 mm
Display brightness	100 cd/m²
Display size (HxV)	127.2 x 33.9 mm
Features
Height adjustment range	174 - 528 mm
Tilt angle range	0 - 13°
Product colour	Black
Ports & interfaces
Interface	RS-232
Optional connectivity	Serial (RS-232), USB 2.0
Technical details
Height adjustment range	174 - 528 mm
Tilt angle range	0 - 13°
Product colour	Black
Operational conditions
Storage temperature (T-T)	-20 - 55 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Weight & dimensions
Width	220.4 mm
Weight	850 g
Height	528 mm
Depth	105.4 mm
