Description

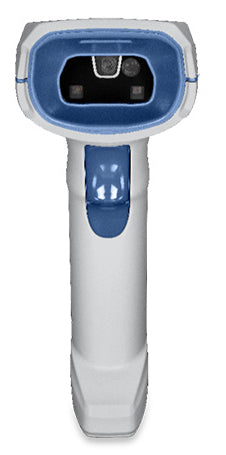

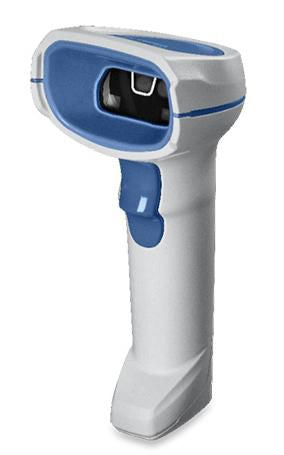

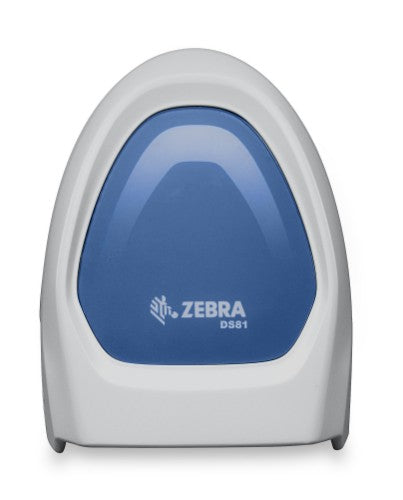

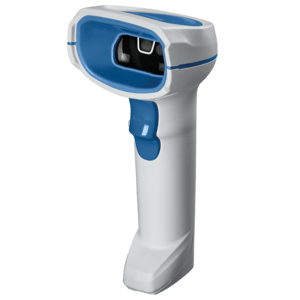

DS8178, Healthcare, USB-kit
As a healthcare provider, you need to give your healthcare professionals the tools they need to provide the very best in patient care, every second of every day. With the DS8100-HC Series handheld imagers, you can.
This premium handheld scanner is purpose-built for healthcare environments, with unparalleled performance on virtually every barcode in any condition, a first-of-its-kind housing delivering maximum protection against the spread of bacteria, flexible user-selectable feedback modes designed for around-the-clock use and more. Streamline workflows for your healthcare professional and deliver better patient experiences with the DS8100-HC Series — only from Zebra.
Description
Better Workflows for Healthcare Professionals. Better Experiences for Patients.As a healthcare provider, you need to give your healthcare professionals the tools they need to provide the very best in patient care, every second of every day. With the DS8100-HC Series handheld imagers, you can.
This premium handheld scanner is purpose-built for healthcare environments, with unparalleled performance on virtually every barcode in any condition, a first-of-its-kind housing delivering maximum protection against the spread of bacteria, flexible user-selectable feedback modes designed for around-the-clock use and more. Streamline workflows for your healthcare professional and deliver better patient experiences with the DS8100-HC Series — only from Zebra.
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Yaw reading angle | 0 - 60° |
| Wavelength | 528 nm |
| Tilt reading angle | 0 - 360° |
| Sensor type | LED |
| Scanner type | 1D/2D |
| Pitch reading angle | 0 - 60° |
| Ports & interfaces | |
| Wireless range | 100 m |
| Connectivity technology | Wired & Wireless |
| Bluetooth version | 4.0 |
| Bluetooth Low Energy (BLE) | Yes |
| Standard interfaces | Keyboard wedge, RS-232, USB |
| Performance | |
| International Protection (IP) code | IP42 |
| Product colour | White |
| Design | |
| Type | Handheld bar code reader |
| International Protection (IP) code | IP42 |
| Product colour | White |
| Power | |
| Power source type | Battery |
| Number of batteries supported | 1 |
| Battery life | 83 h |
| Number of reads per charge | 65000 |
| Input voltage | 5 V |
| Battery type | Built-in battery |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 2500 mAh |
| Weight & dimensions | |
| Width | 66 mm |
| Depth | 107 mm |
| Height | 168 mm |
| Weight | 235 g |
| Technical details | |
| Type | Handheld bar code reader |
| International Protection (IP) code | IP42 |
| Product colour | White |
| Harmonized System (HS) code | 84716070 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
