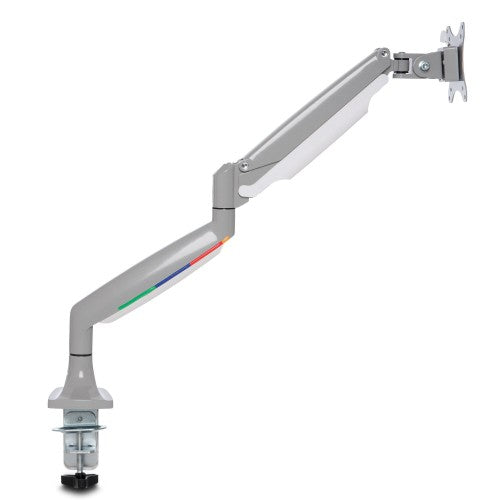

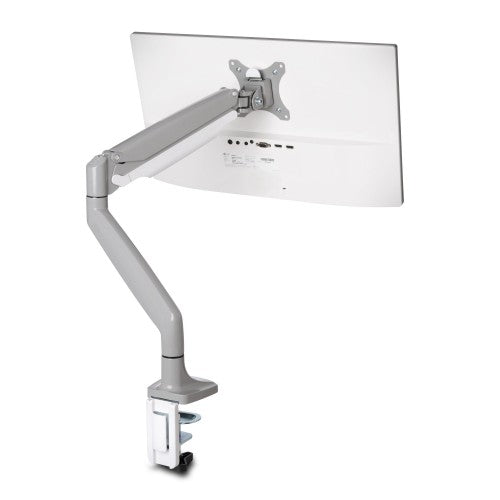

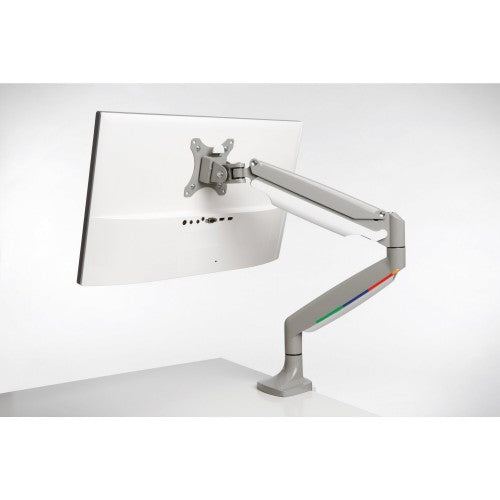

SmartFit One-Touch Height-Adjustable Single Monitor Arm
Key Features
- SmartFit™ supports proper ergonomic eye-level viewing angles, as well as improved neck and shoulder alignment.
- One-Touch Adjustable Arm with Built-In Gas Spring simplifies height adjustment (170 - 505mm, 6.7 - 19.9”), provides 180° swivel and monitor rotation, ±90° tilt adjustment and allows monitor to smoothly move up, down, forward and back for full motion articulation.
- Stability focused design supports 13”-34” flat or curved monitors weighing up to 9kg (19.8lbs) and ensures monitor is stable and steady in any position
- Easy to install with included quick release detachable VESA® plate (75mm or 100mm), c-clamp (desktop thickness range: 10-85mm and grommet (diameter range: 10.5-50mm) installation options and included tool kit to simplify removal
- Cable management system keeps monitor cables organised for a tidier workspace
- Kensington durability meets ANSI/BIFMA performance and safety standards
Reasons To Buy
One-touch adjustable arm with built-in gas spring

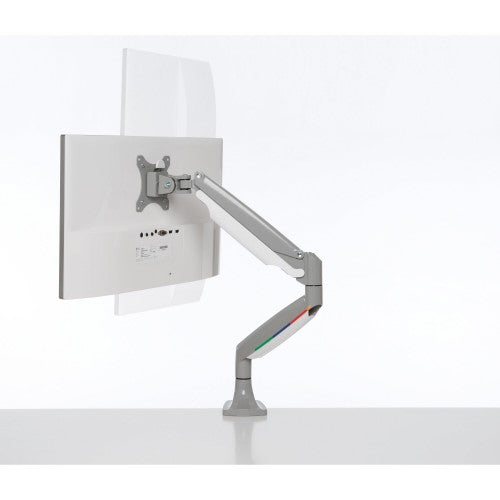

Full motion articulation allows you to easily customise the position of the monitor in your workstation. Move monitor up, down, forward and backwards with 170-505mm height adjustment, 180° swivel and rotation and +/- 90° tilt* adjustment.
Easy to install

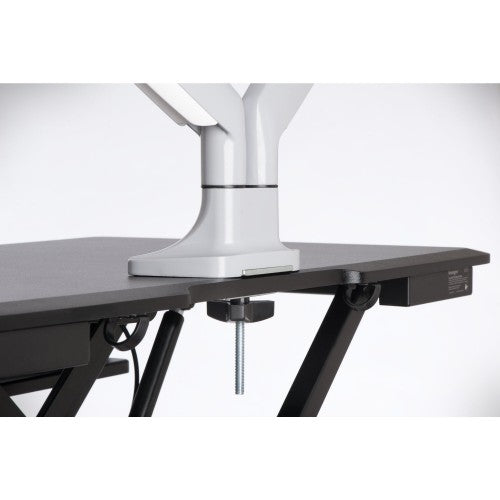

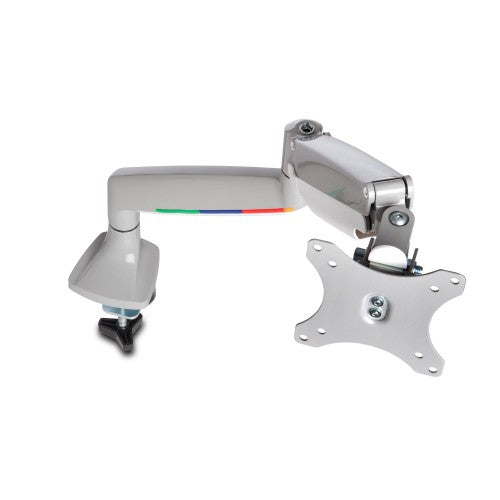

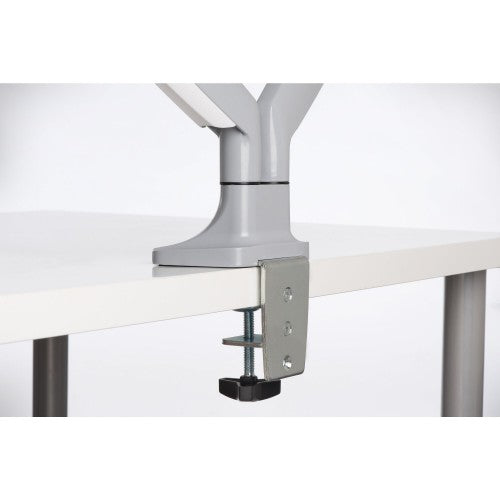

Includes quick release detachable VESA® plate (75mm or 100mm), c-clamp (desktop thickness range: 10-85mm and grommet (diameter range: 10.5-50mm) installation options, and included tool kit to simplify*removal.

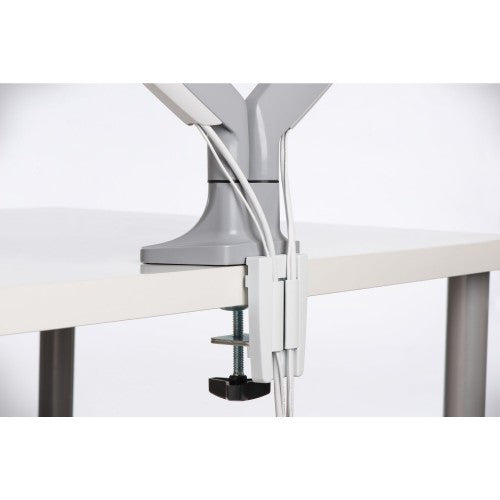

Cable management system
Keeps monitor cables organised for a tidier workspace.
Kensington durability
Tested to meet ANSI/BIFMA performance and safety standards.
SmartFit™ - Comfort Made Easy
Supports proper ergonomic eye-level viewing angles using data-driven research and a colour-coded fitting chart to support quick and intuitive height-setting.
Stability focused design
Supports 13”–34” flat or curved monitor weighing up to 9kg (19.8lbs) and ensures monitor is stable and steady in any position.
Description
Monitor arms allow for improved ergonomic positioning of computer displays, which can help reduce neck and eye strain associated with prolonged computer use. Improve posture, promote proper eye alignment and support neck and shoulder comfort with the SmartFit™ One-Touch Height Adjustable Single Monitor Arm. Ergonomically designed to promote wellness and increase productivity, it simplifies proper ergonomic fit and allows users to adjust the height, depth and angle of their monitor for individualised comfort. Stable at any monitor position, it allows you to easily switch from landscape to portrait mode.
Specifications
| Mounting |
|---|
| Desk thickness (min) |
1 cm |
| Desk thickness (max) |
8.5 cm |
| Minimum screen size |
33 cm (13") |
| Number of displays supported |
1 |
| Mounting type |
Desk |
| Minimum VESA mount |
75 x 75 mm |
| Maximum VESA mount |
100 x 100 mm |
| Mounting |
Clamp/Bolt-through |
| Maximum weight capacity |
9 kg |
| Maximum screen size |
81.3 cm (32") |
| Extension arm (max) |
52.5 cm |
| Ergonomics |
|---|
| Cable management |
Yes |
| Height adjustment |
Yes |
| Height adjustment range |
170 - 505 mm |
| Swivel angle range |
-180 - 180° |
| Tilt angle range |
-90 - 90° |
| Angle of rotation |
90° |
| Pan range |
-90 - 90° |
| Design |
|---|
| Product colour |
Grey, Silver |
| Housing material |
Aluminium, Plastic, Steel |
| Certification |
Prop 65, BIFMA |
| Technical details |
|---|
| Mounting type |
Desk |
| Product colour |
Grey, Silver |
| Cable management |
Yes |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Width |
590 mm |
| Depth |
115 mm |
| Height |
665 mm |
| Weight |
3.34 kg |
| Package width |
485.9 mm |
| Package depth |
315 mm |
| Package height |
114.3 mm |
| Package type |
Box |
| Package weight |
4.22 kg |
| Packaging data |
|---|
| Package width |
485.9 mm |
| Package depth |
315 mm |
| Package height |
114.3 mm |
| Package type |
Box |
| Package weight |
4.22 kg |
| Certificates |
|---|
| Certification |
Prop 65, BIFMA |
| Other features |
|---|
| Certification |
Prop 65, BIFMA |
| Compliance certificates |
RoHS |
| Mounting type |
Desk |
| Mounting |
Clamp/Bolt-through |
| Country of origin |
China |
| Logistics data |
|---|
| Master (outer) case width |
333.5 mm |
| Master (outer) case length |
514.4 mm |
| Master (outer) case height |
479.6 mm |
| Master (outer) case gross weight |
17.8 kg |
| Products per master (outer) case |
4 pc(s) |
| Country of origin |
China |
| Harmonized System (HS) code |
85299097 |
