Description

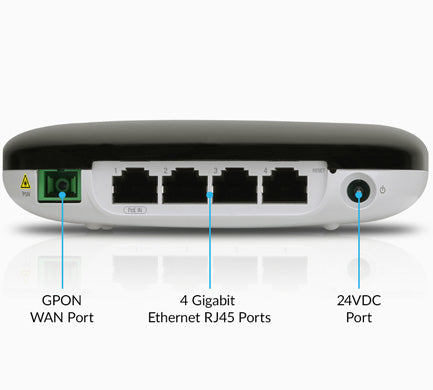

GPON (SC/APC), 4 Ethernet (RJ45), 802.11n AP, 24V passive PoE or DC Jack, 24VDC

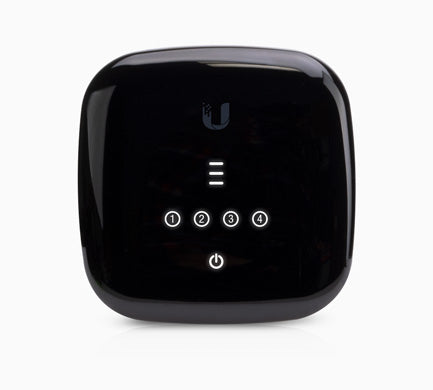

Sporting a sleek industrial design, the U Fiber WiFi is a robust, high‑performance GPON CPE that features an informational LED display with 4 Ethernet ports and WiFi.
Status LEDs
The easy-to-read LEDs provide status information: Ethernet connection, signal strength, and power.
Versatile Power
The 4 Ethernet LAN ports support 10/100/1000 Mbps connections. The UFiber WiFi can be powered using 24V passive PoE on Port 1, or by 24VDC.
Designed for Integration
Up to 128 UFiber WiFi devices can be connected to a single GPON port. Supporting GPON links of up to 20 km, the UFiber WiFi integrates with the UFiber OLT and third-party OLT devices.
Description
4-Port GPON Router with Wi-FiSporting a sleek industrial design, the U Fiber WiFi is a robust, high‑performance GPON CPE that features an informational LED display with 4 Ethernet ports and WiFi.
Status LEDs
The easy-to-read LEDs provide status information: Ethernet connection, signal strength, and power.
Versatile Power
The 4 Ethernet LAN ports support 10/100/1000 Mbps connections. The UFiber WiFi can be powered using 24V passive PoE on Port 1, or by 24VDC.
Designed for Integration
Up to 128 UFiber WiFi devices can be connected to a single GPON port. Supporting GPON links of up to 20 km, the UFiber WiFi integrates with the UFiber OLT and third-party OLT devices.
Specifications
| Ethernet LAN features | |
|---|---|
| Ethernet WAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Mobile network | |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| Performance | |
| Processor frequency | 900 MHz |
| Internal memory | 256 MB |
| Memory card slot(s) | No |
| Processor architecture | MIPS |
| WAN connection | |
| Ethernet WAN | Yes |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| Wireless LAN features | |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 300 Mbit/s |
| Wi-Fi standards | Wi-Fi 4 (802.11n) |
| Network | |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.11n |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| USB port | No |
| Ethernet LAN (RJ-45) ports | 4 |
| DC-in jack | Yes |
| Memory card slot(s) | No |
| Design | |
| Product type | Tabletop router |
| Product colour | Black |
| Packaging content | |
| AC adapter included | Yes |
| Other features | |
| Internal memory | 256 MB |
| Antenna | |
| Antenna design | Internal |
| Features | |
| Processor frequency | 900 MHz |
| Internal memory | 256 MB |
| Processor architecture | MIPS |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power source type | AC |
| Output voltage | 24 V |
| Output current | 0.5 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 126.3 mm |
| Weight | 190 g |
| Height | 31.6 mm |
| Depth | 126.1 mm |
| Packaging data | |
| AC adapter included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
