Description
10/100/1000 to SFP Media Converter, EU Plug
SFP Optical Transceivers for Maximum Flexibility
The fiber side of the DMC-G01LC utilizes a 100/1000 SFP port for maximum flexibility. Using the appropriate SFP transceiver (purchased separately) it can support either multimode or single-mode fiber, varying wavelengths, and speeds of either 100 Mbps or 1000 Mbps.
10/100/1000 Copper Speeds
The copper side of the DMC-G01LC auto-negotiates to 10Mbps, 100Mbps or 1000Mbps, ensuring the connection functions at the highest possible speed while remaining compatible with the link partner. It supports auto MDI/MDIX, half/full duplex operation at 10/100 Mbps and full duplex operation at 1000 Mbps.
Plug & Play
The DMC-G01LC supports standard technologies that makes it easy to operate, like 802.3u. 802.3x and 802.3ab. There’s no management software to configure – simply connect the power, connect the cables, and start converting.
Description

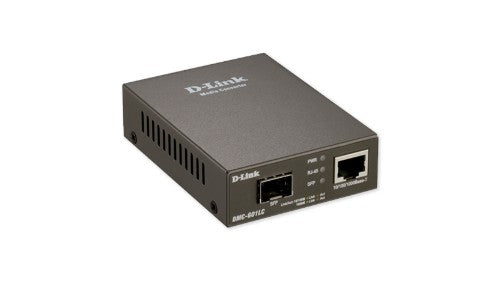

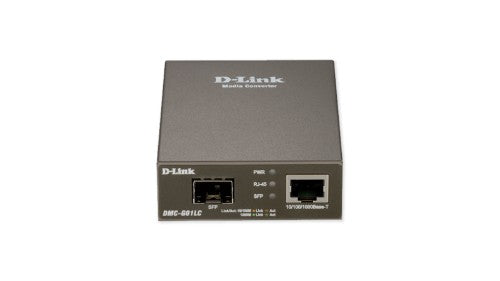

D-Link’s DMC-G01LC standalone media Converter turns a copper Ethernet link into a fiber link, allowing for an ultra-fast, long distance connection. Installation of a standalone media converter is simple, and allows you to tap into fiber speeds with ease. Instead of requiring an investment in an entire chassis, a standalone media converter provides the same high-quality conversion on a unit-by-unit basis. You can save space and cut costs while still extending your network over long distances of 10 km and beyond on a fiber optic line.SFP Optical Transceivers for Maximum Flexibility
The fiber side of the DMC-G01LC utilizes a 100/1000 SFP port for maximum flexibility. Using the appropriate SFP transceiver (purchased separately) it can support either multimode or single-mode fiber, varying wavelengths, and speeds of either 100 Mbps or 1000 Mbps.
10/100/1000 Copper Speeds
The copper side of the DMC-G01LC auto-negotiates to 10Mbps, 100Mbps or 1000Mbps, ensuring the connection functions at the highest possible speed while remaining compatible with the link partner. It supports auto MDI/MDIX, half/full duplex operation at 10/100 Mbps and full duplex operation at 1000 Mbps.
Plug & Play
The DMC-G01LC supports standard technologies that makes it easy to operate, like 802.3u. 802.3x and 802.3ab. There’s no management software to configure – simply connect the power, connect the cables, and start converting.
Specifications
| Network | |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Fiber optic connector | SFP |
| Performance | |
| Mean time between failures (MTBF) | 506711 h |
| Features | |
| LED indicators | Yes |
| Product colour | Grey |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |

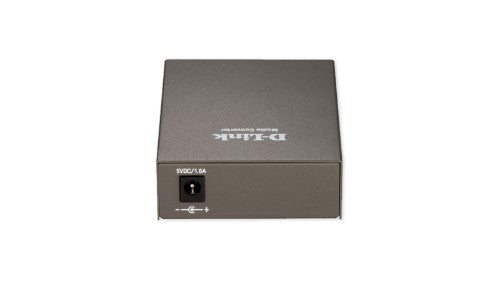

| DC-in jack | Yes |
| Power | |
| Input voltage | 230 - 240 V |
| Output voltage | 5 V |
| Output current | 1 A |
| Weight & dimensions | |
| Width | 70 mm |
| Depth | 95 mm |
| Height | 25 mm |
| Package depth | 134 mm |
| Package width | 101 mm |
| Package height | 95 mm |
| Package weight | 358 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging data | |
| Package depth | 134 mm |
| Package width | 101 mm |
| Package height | 95 mm |
| Package weight | 358 g |
| Technical details | |
| Internal | No |
| Shipping (inner) case width | 29.4 cm |
| Shipping (inner) case net weight | 7.16 kg |
| Shipping (inner) case length | 50.4 cm |
| Shipping (inner) case height | 23.6 cm |
| Products per shipping (inner) case | 20 pc(s) |
| Products per pallet (sea) | 1280 pc(s) |
| Products per pallet (air) | 800 pc(s) |
| Pallet gross width | 120 cm |
| Pallet gross length | 110 cm |
| Pallet height (sea) | 2.02 m |
| Pallet height (air) | 131 cm |
| Pallet gross weight (sea) | 534.6 kg |
| Pallet gross weight (air) | 341.1 kg |
| Master (outer) cases per pallet (sea) | 64 pc(s) |
| Master (outer) cases per pallet (air) | 40 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Indication | |
| LED indicators | Yes |
| Design | |
| Safety | LVD, UL/cUL |
| LED indicators | Yes |
| Product colour | Grey |
| Certification | CE, FCC, VCCI, BSMI |
| Internal | No |
| Endurance | |
| Mean time between failures (MTBF) | 506711 h |
| Colour | |
| Product colour | Grey |
| Certificates | |
| Safety | LVD, UL/cUL |
| Certification | CE, FCC, VCCI, BSMI |
| Logistics data | |
| Shipping (inner) case width | 29.4 cm |
| Shipping (inner) case net weight | 7.16 kg |
| Shipping (inner) case length | 50.4 cm |
| Shipping (inner) case height | 23.6 cm |
| Products per shipping (inner) case | 20 pc(s) |
| Products per pallet (sea) | 1280 pc(s) |
| Products per pallet (air) | 800 pc(s) |
| Pallet gross width | 120 cm |
| Pallet gross length | 110 cm |
| Pallet height (sea) | 2.02 m |
| Pallet height (air) | 131 cm |
| Pallet gross weight (sea) | 534.6 kg |
| Pallet gross weight (air) | 341.1 kg |
| Master (outer) cases per pallet (sea) | 64 pc(s) |
| Master (outer) cases per pallet (air) | 40 pc(s) |
| Shipping (inner) case gross weight | 8.04 kg |
| Harmonized System (HS) code | 85176990 |
