Description
Black Monitor Wall Arm 100×100
Up to 27"
Most displays from 13-27″ fit this mount. If a larger monitor has the correct mounting points and weighs less than the SWL this mount can support it safely.
Thumbscrews
Vision considers every little detail to make installation faster. Two sizes of thumbscrews are included to fix the mount to the monitor.
Fast Installation
The mounting plate fixes to the back of the display, then just drop the display into place on the wall arm and lock in place with a single nut.
Rotation
Didn’t fix the wall plate perfectly plumb? No problem! 6° of rotation allow you to get the display level easily once the display is in place.
SWL 15 kg
This mount has a “safe working load” of 15 kg (33.1 lb). It is made of steel to make it robust.
Tilt and Swivel
-3-10° tilt and 90° swivel. Use this mount to fix a display in a corner up high in a waiting room, or fix displays around an office.
Powder-Coated
Robust powder-coating makes this product more scratch resistant than the competition.
VESA
The VESA standard is based on how far apart the mounting holes are on the back of your flat-panel. Holes 100 x 100 mm apart are known as VESA100 and will suit this mount. This product also fits displays with the smaller VESA75 size.
Key Features
- Double-articulated wall mount for Monitors from 13″ to 27″
- Post-Installation levelling
- Reach 44-282 mm (1.7-11.1″)
- Thumbscrews for fixing display
Description

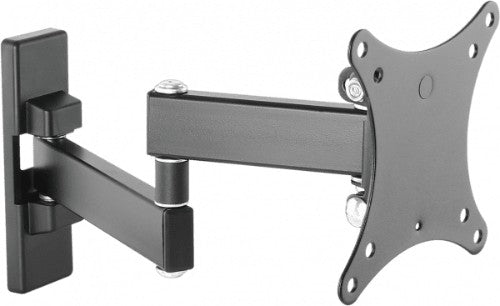

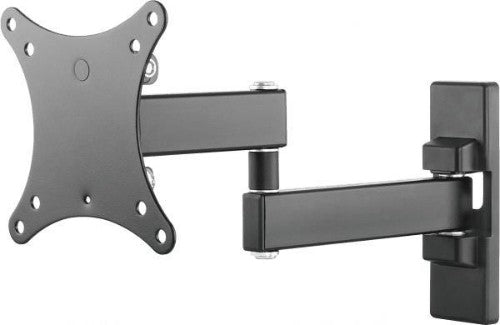

Vision’s Vision Flat-Panel Mount – Wall Arm range is tough and flexible. The VFM-WA1X1B is a value wall arm that fits most computer monitors. It has 100 x 100 mm mounting holes.Up to 27"
Most displays from 13-27″ fit this mount. If a larger monitor has the correct mounting points and weighs less than the SWL this mount can support it safely.
Thumbscrews
Vision considers every little detail to make installation faster. Two sizes of thumbscrews are included to fix the mount to the monitor.
Fast Installation
The mounting plate fixes to the back of the display, then just drop the display into place on the wall arm and lock in place with a single nut.
Rotation
Didn’t fix the wall plate perfectly plumb? No problem! 6° of rotation allow you to get the display level easily once the display is in place.
SWL 15 kg
This mount has a “safe working load” of 15 kg (33.1 lb). It is made of steel to make it robust.
Tilt and Swivel
-3-10° tilt and 90° swivel. Use this mount to fix a display in a corner up high in a waiting room, or fix displays around an office.
Powder-Coated
Robust powder-coating makes this product more scratch resistant than the competition.
VESA
The VESA standard is based on how far apart the mounting holes are on the back of your flat-panel. Holes 100 x 100 mm apart are known as VESA100 and will suit this mount. This product also fits displays with the smaller VESA75 size.
Specifications
| Mounting | |
|---|---|
| Minimum screen size | 33 cm (13") |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Maximum VESA mount | 100 x 100 mm |
| Distance to the wall (min) | 4.4 cm |
| Distance to the wall (max) | 28.2 cm |
| Maximum weight capacity | 15 kg |
| Maximum screen size | 68.6 cm (27") |
| Ergonomics | |
| Height adjustment | No |
| Swivel angle | 90° |
| Tilt angle range | -3 - 10° |
| Technical details | |
| Mounting type | Wall |
| Distance to the wall (min) | 4.4 cm |
| Distance to the wall (max) | 28.2 cm |
| Product colour | Black |
| Design | |
| Certification | REACH |
| Product colour | Black |
| Housing material | Plastic, Steel |
| Certificates | |
| Certification | REACH |
| Weight & dimensions | |
| Package width | 182 mm |
| Package depth | 191 mm |
| Package height | 46 mm |
| Weight | 800 g |
| Package weight | 900 g |
| Packaging data | |
| Package weight | 900 g |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
| Other features | |
| Mounting type | Wall |
